Blower Motor Resistor: Testing and Inspection

RESISTOR CHECK

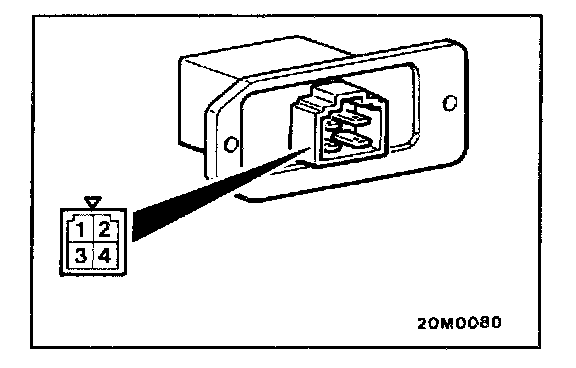

Use a circuit tester to measure the resistance between the terminals as indicated. Check that the measured value is at the standard value.

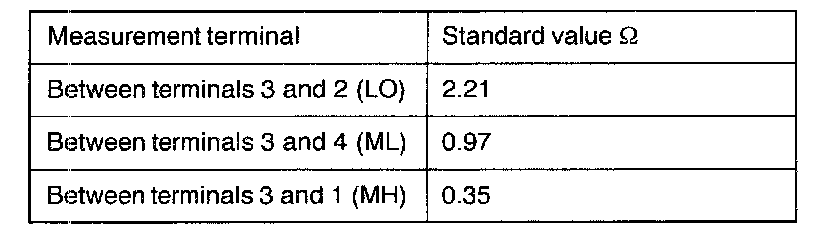

Standard Value:

Standard value:
