Generator and Ignition System

REMOVAL AND INSTALLATION

Removal Service Points
[A] Crankshaft Bolt Removal

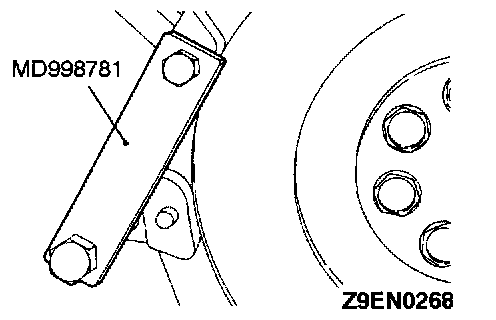

1. Lock the flywheel or drive plate in position using the special tool shown in the illustration, then loosen the crankshaft bolt.

Installation Service Points
]A[ Cam Position Sensor Support Installation
1. Clean the sealant application surfaces of cam position sensor support and cylinder head.

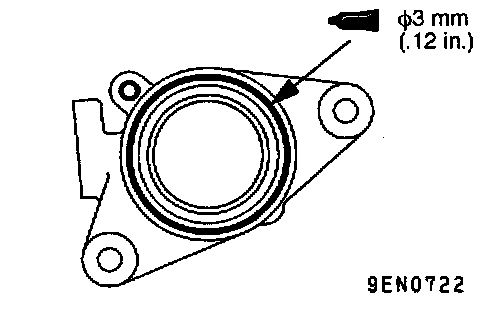

2. Apply a 3 mm (0.12 inch) diameter bead of sealant to the area shown in the illustration. Be sure to install the sensor support with in 15 minutes after applying sealant.
Specified sealant: Mitsubishi Genuine Part No.MD970389 or equivalent
3. After installation, wait at least one hour. Never start the engine or let engine oil touch the adhesion surface during that time.

]B[ Crankshaft Bolt Installation

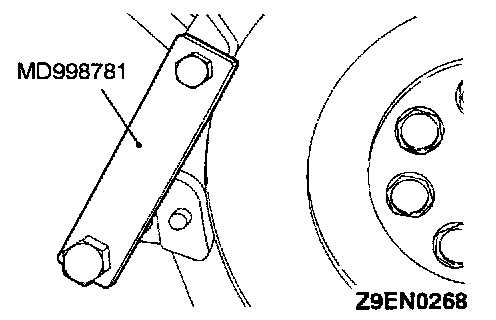

1. Lock the flywheel or drive plate in position using the special tool shown in the illustration, then tighten the crankshaft bolt.
