Oil Pan: Service and Repair

REMOVAL AND INSTALLATION

Removal Service Points
[A] Oil Pan Removal

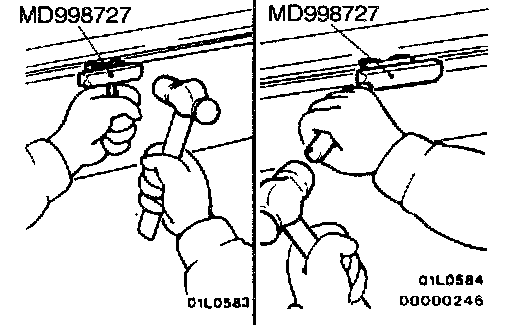

After removing the oil pan mounting bolts, remove the oil pan with the special tool and a brass bar.

CAUTION: Perform this slowly to avoid deformation of the oil pan flange.

Installation Service Points

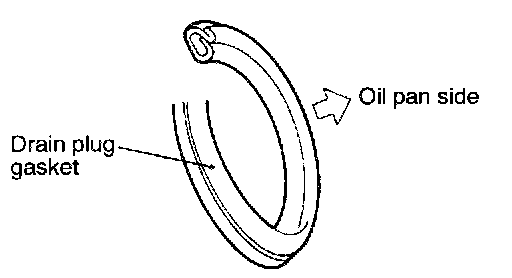

]A[ Drain Plug Gasket Installation





Install the drain plug gasket so it faces in the direction shown in the illustration.
