Grounds

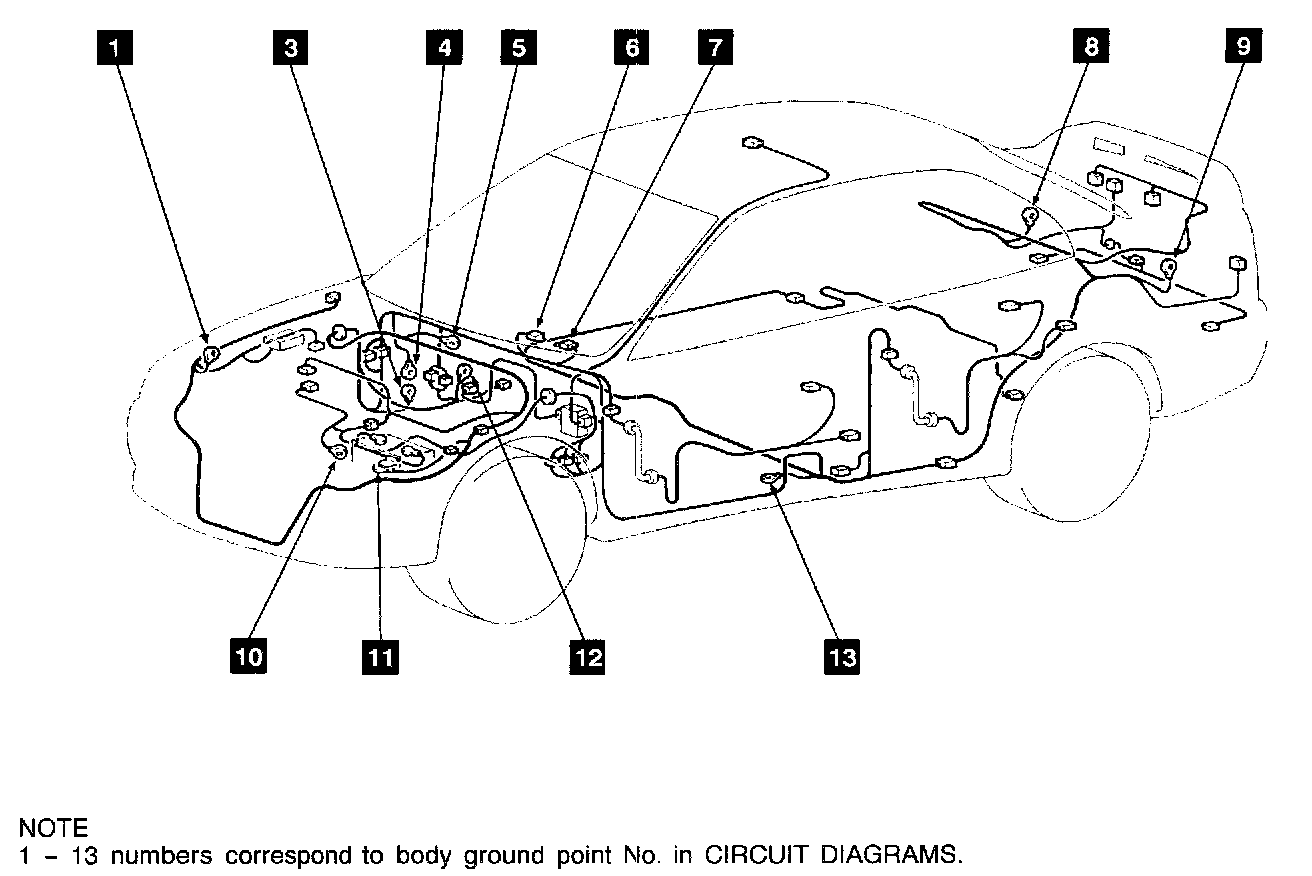

Grounding Locations Overall View:

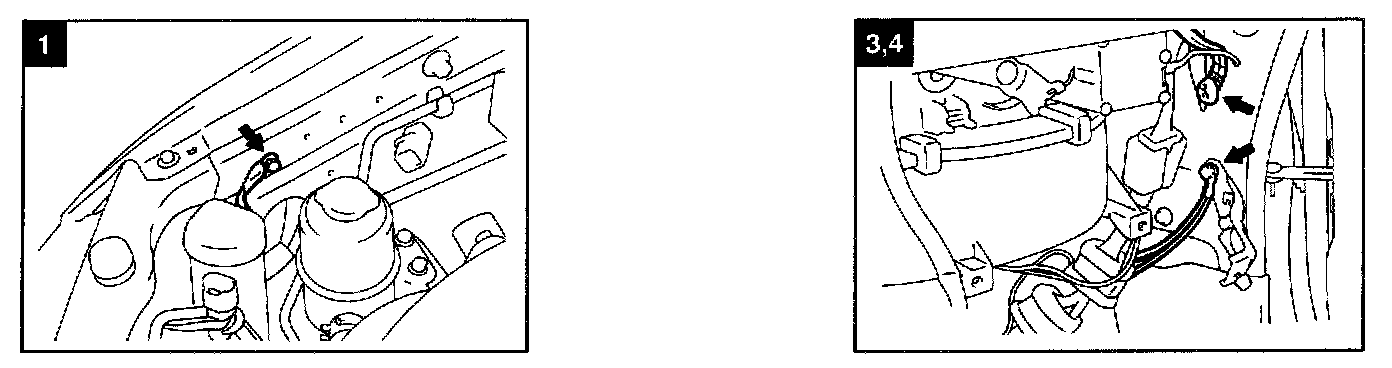

Grounding Location Views 1-4:

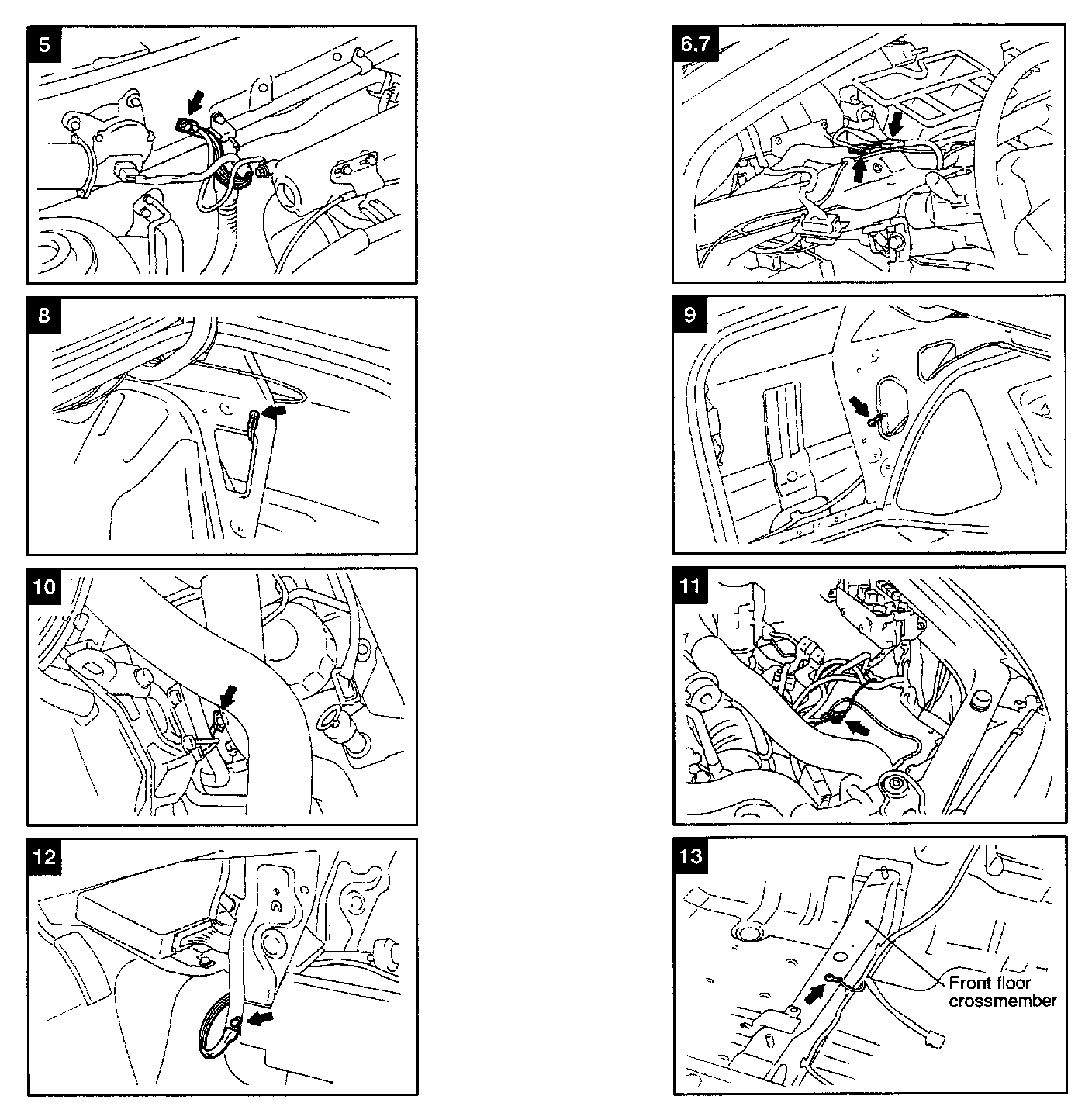

Grounding Location Views 5-13:
