Turn Signals

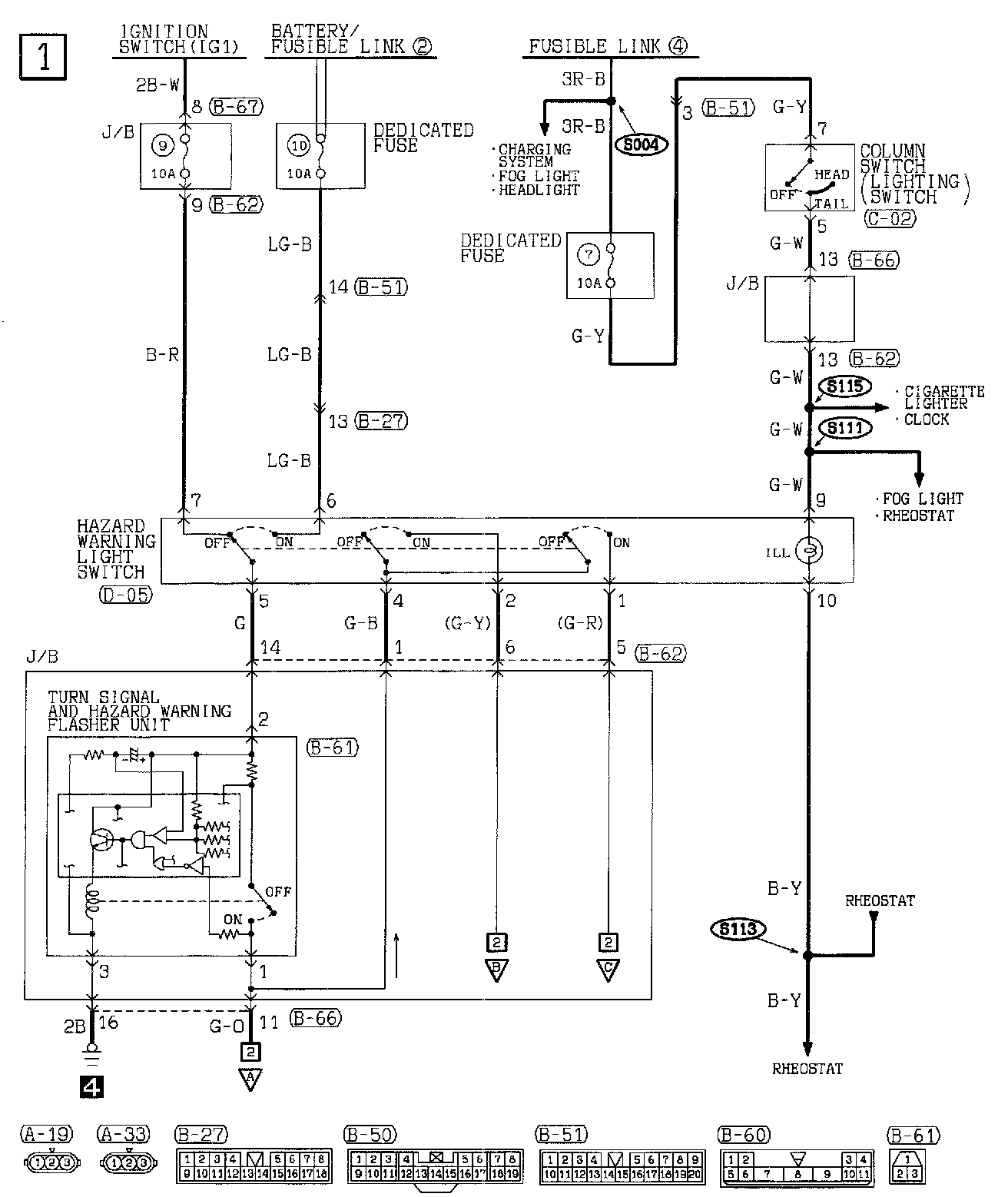

Turn-Signal Light And Hazard Warning Light (Part 1 Of 3):

Column Switch (Lighting Switch)
Dedicated Fuse
Hazard Warning Light Switch
J/B
- Turn Signal And Hazard Warning Flasher Unit

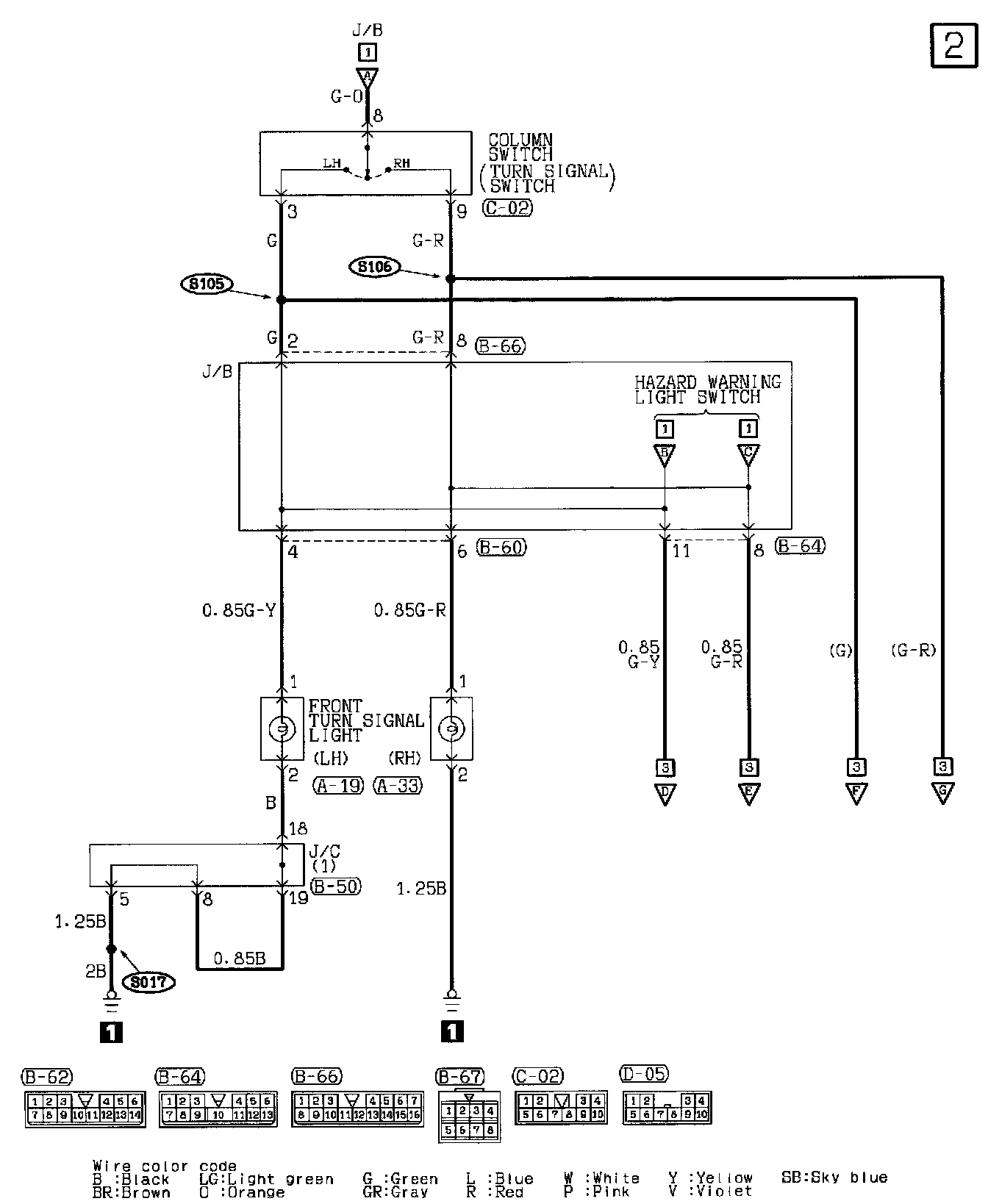

Turn-Signal Light And Hazard Warning Light (Part 2 Of 3):

Column Switch (Turn Signal Switch)
- Hazard Warning Light Switch
Front Turn Signal Light
J/C

Turn-Signal Light And Hazard Warning Light (Part 3 Of 3):

Combination Meter
J/C
Rear combination light (Turn: LH & RH)
