System Diagram

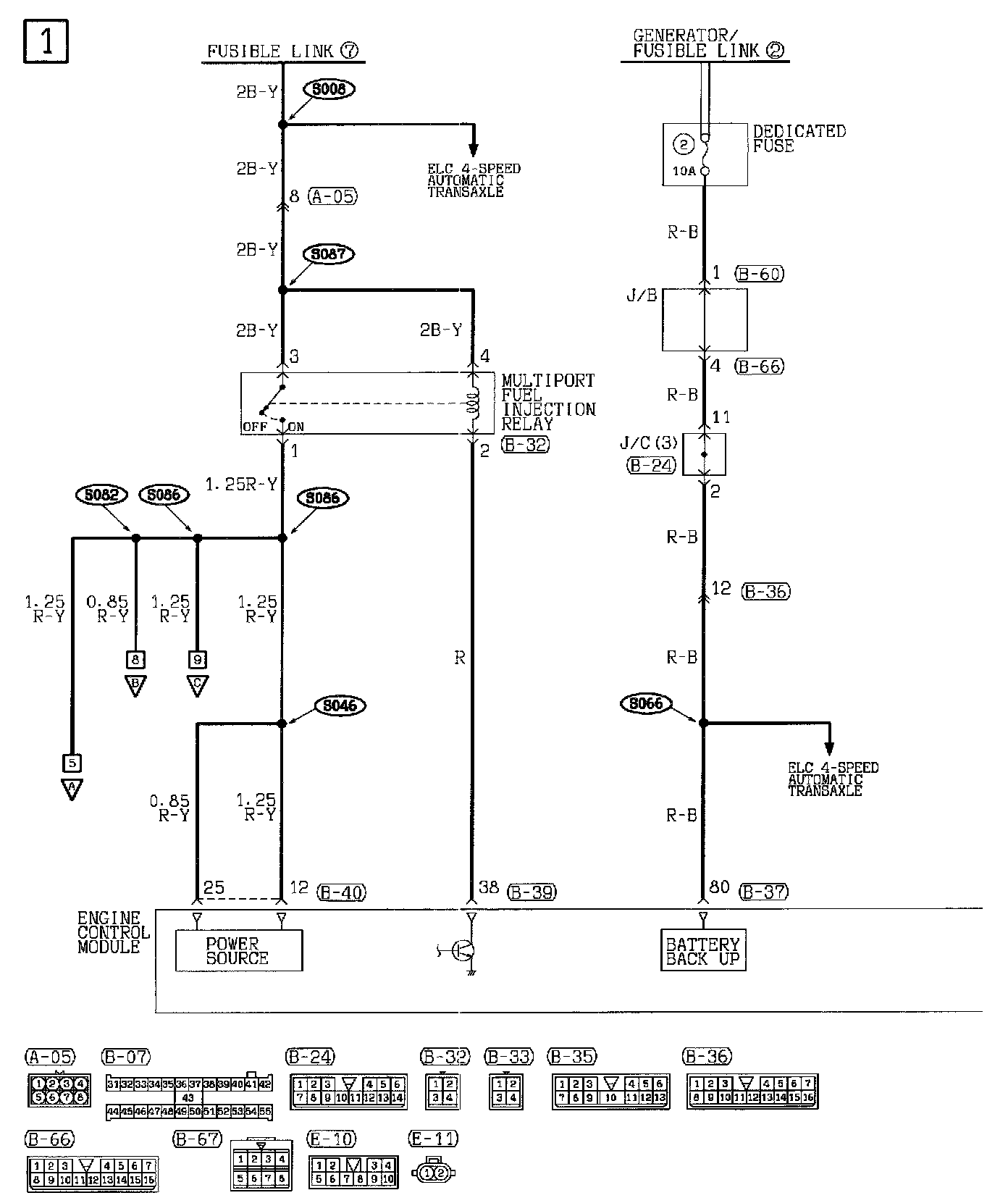

MFI System (Part 1 Of 9):

Dedicated Fuse
Engine Control Module
- Power Source
- Battery Back Up
J/B
J/C (3)
Multiport Fuel Injection Relay

MFI System (Part 2 Of 9):

Combination Meter
Fuel Pump
Fuel Pump Relay
J/B

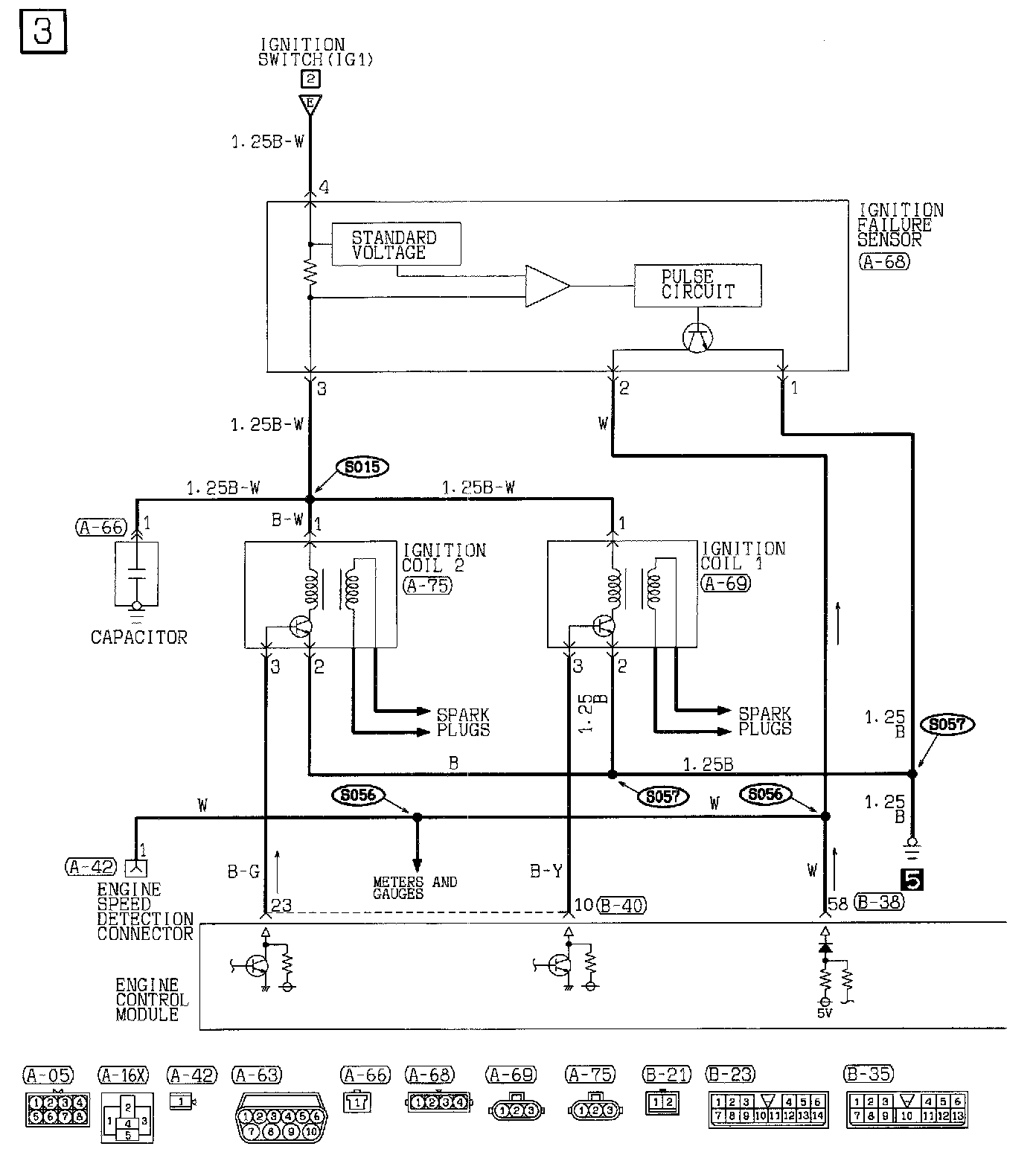

MFI System (Part 3 Of 9):

Capacitor
Engine Control Module
Ignition Coil
Ignition Failure Sensor
- Standard Voltage
- Pulse Circuit

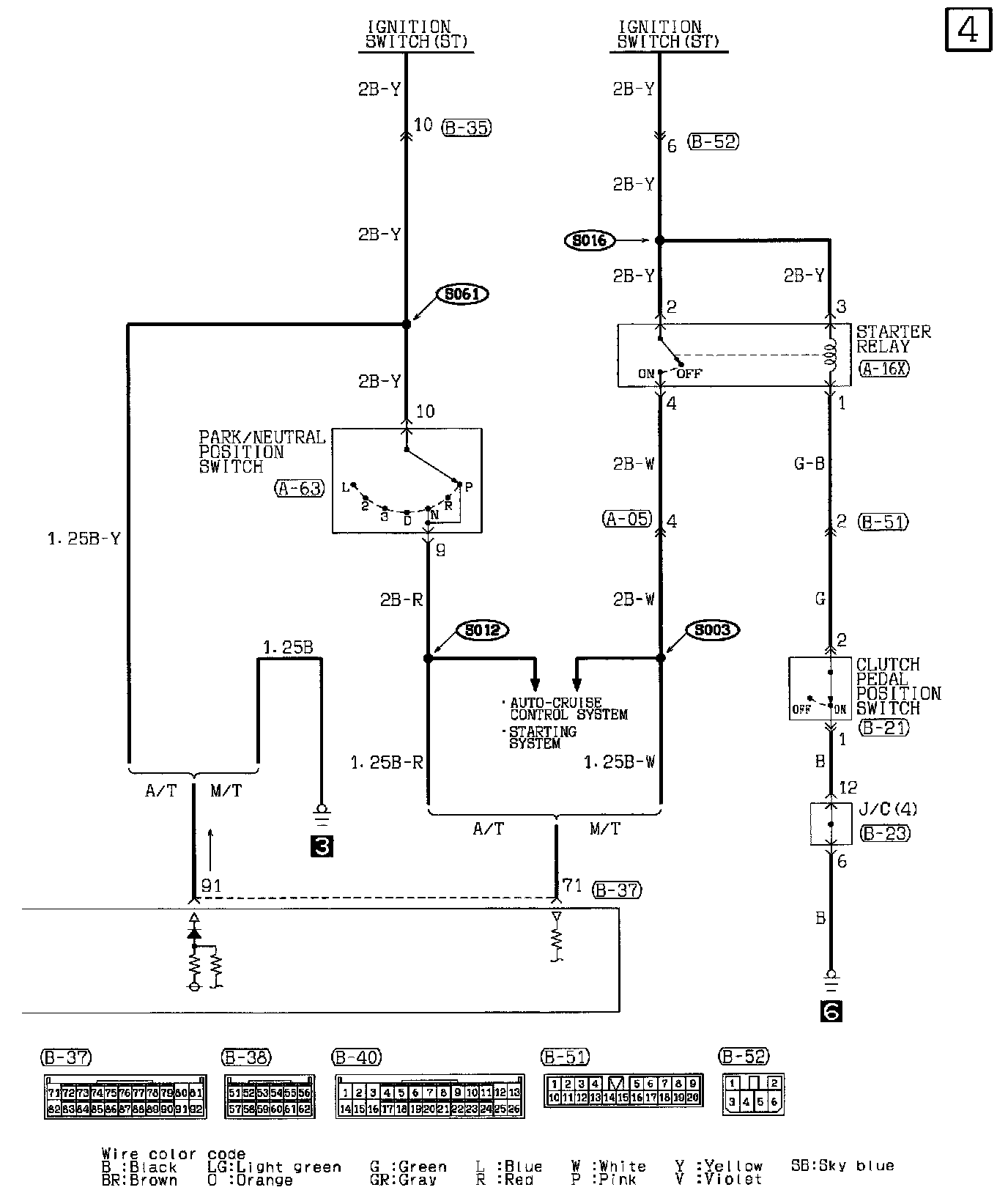

MFI System (Part 4 Of 9):

Clutch Pedal Position Switch
J/C
Park/Neutral Position Switch
Starter Relay

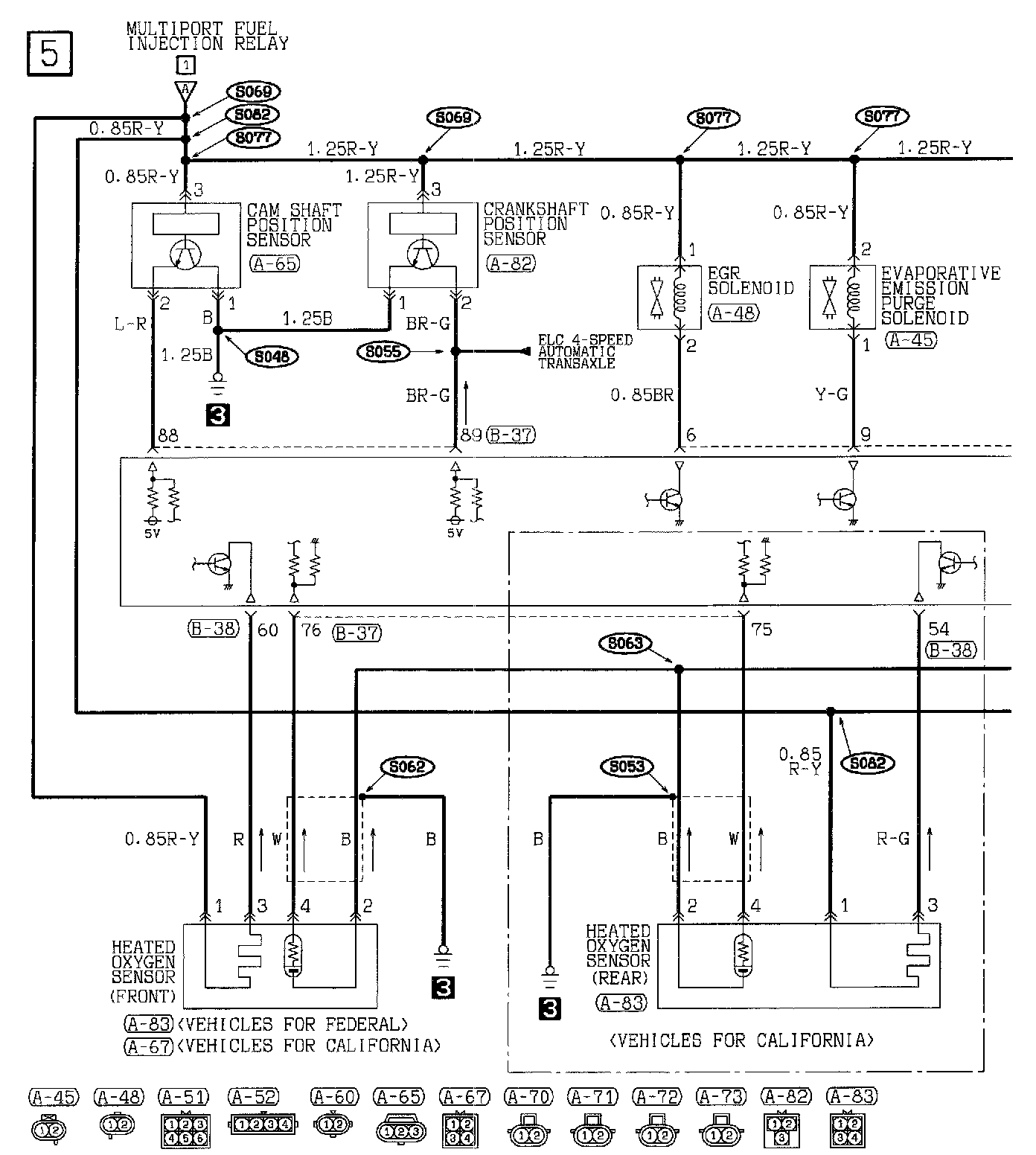

MFI System (Part 5 Of 9):

Camshaft Position Sensor
Crankshaft Position Sensor
EGR Solenoid
Evaporative Emission Purge Solenoid
Heated Oxygen Sensors(Front and Rear)

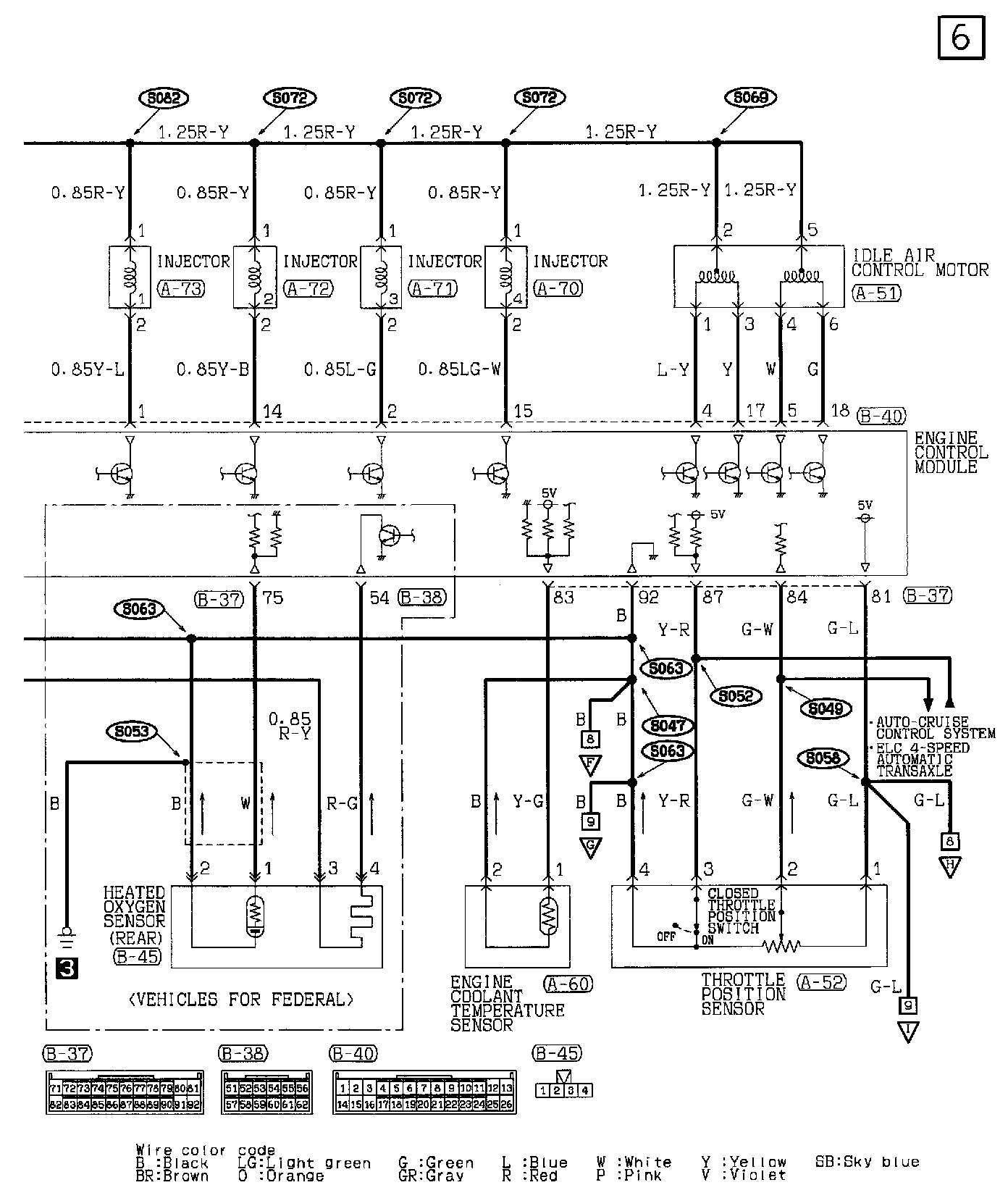

MFI System (Part 6 Of 9):

Idle Air Control Motor
Engine Control Module
Heated Oxygen Sensor (Rear)
Engine Coolant Temperature Sensor
Throttle Position Sensor

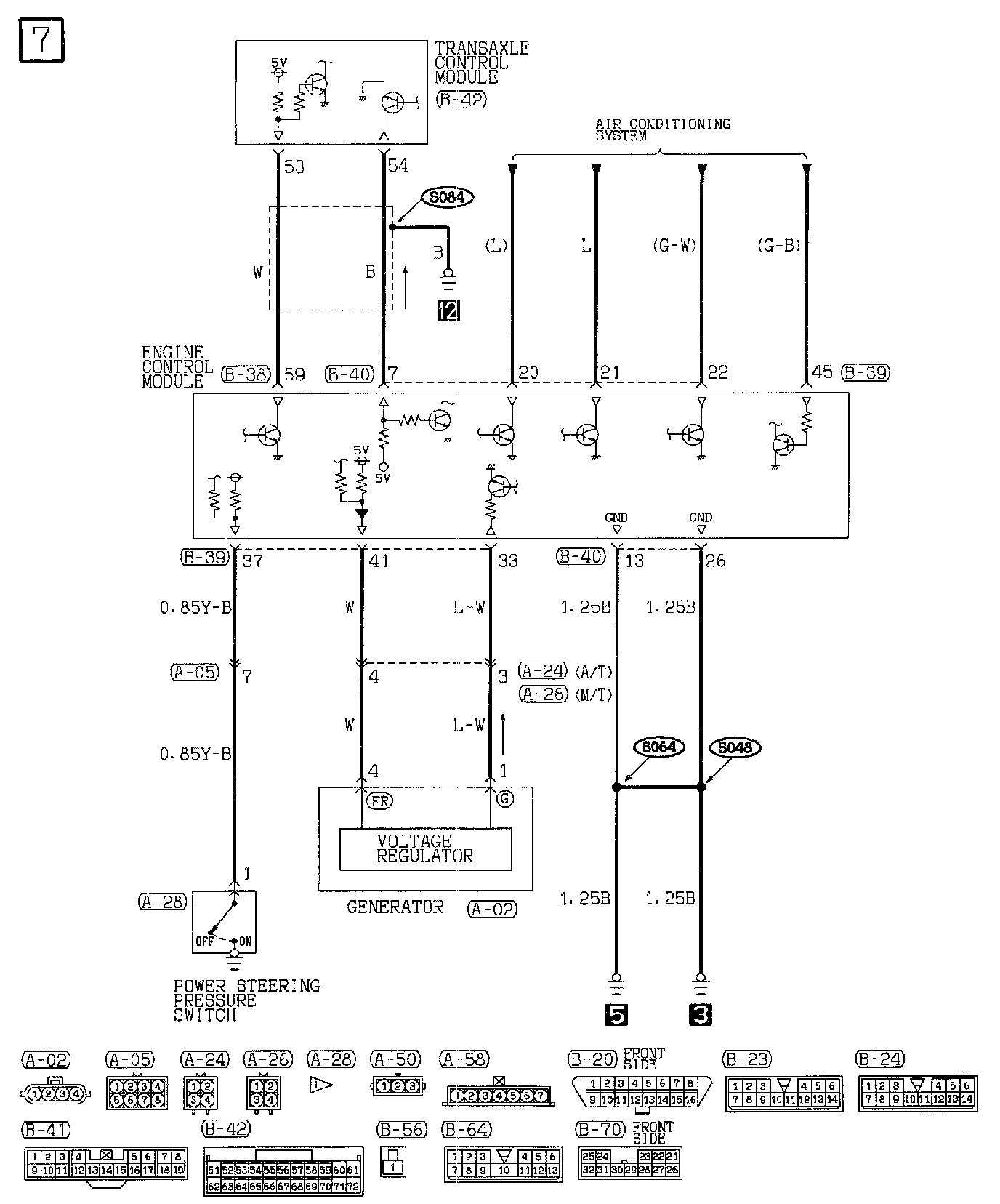

MFI System (Part 7 Of 9):

Engine Control Module
Power Steering Pressure Switch
Voltage Regulator
Transaxle Control Module

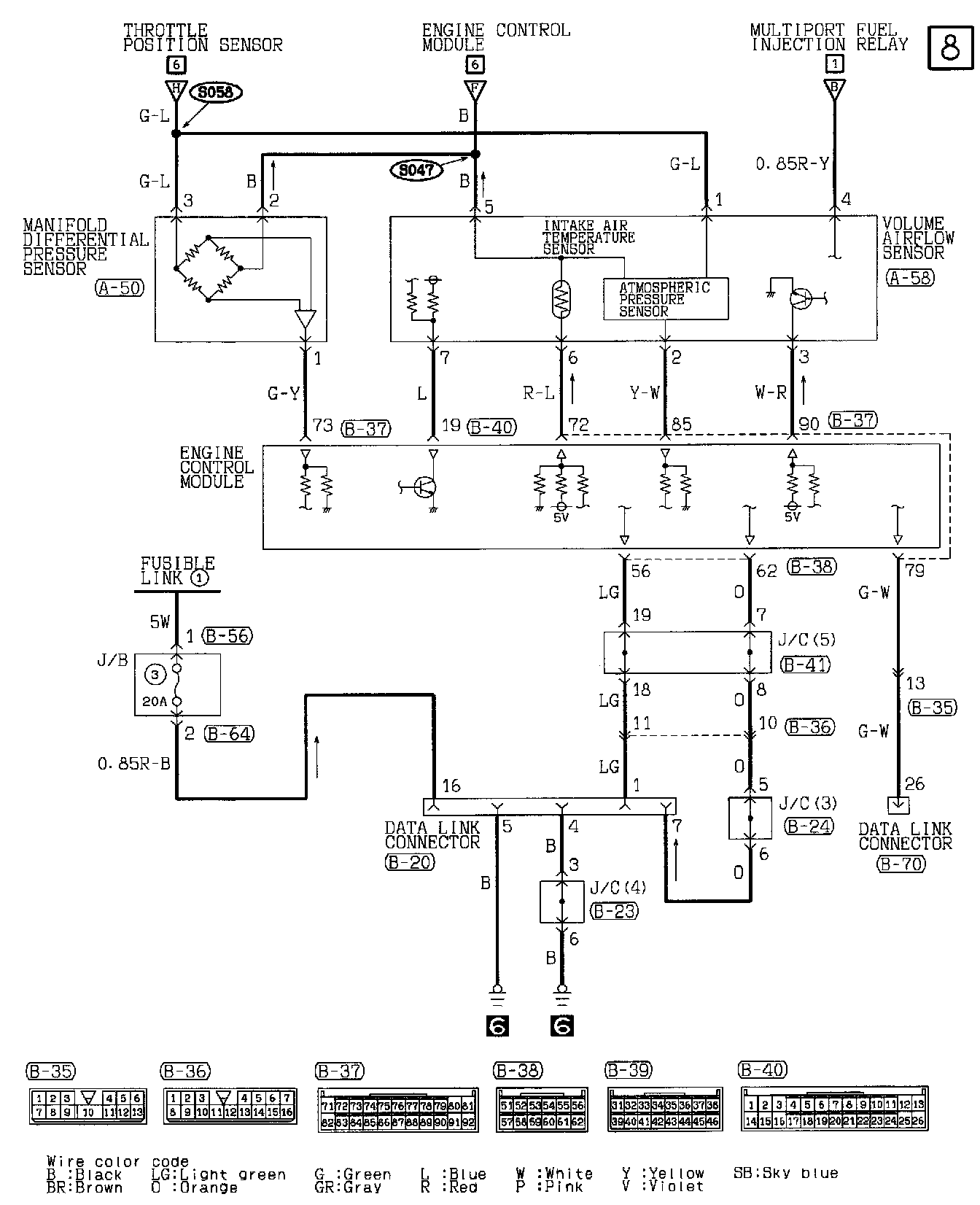

MFI System (Part 8 Of 9):

Data Link Connector
Manifold Differential Pressure Sensor
J/B
J/C
Volume Air Flow Sensor
Engine Control Module

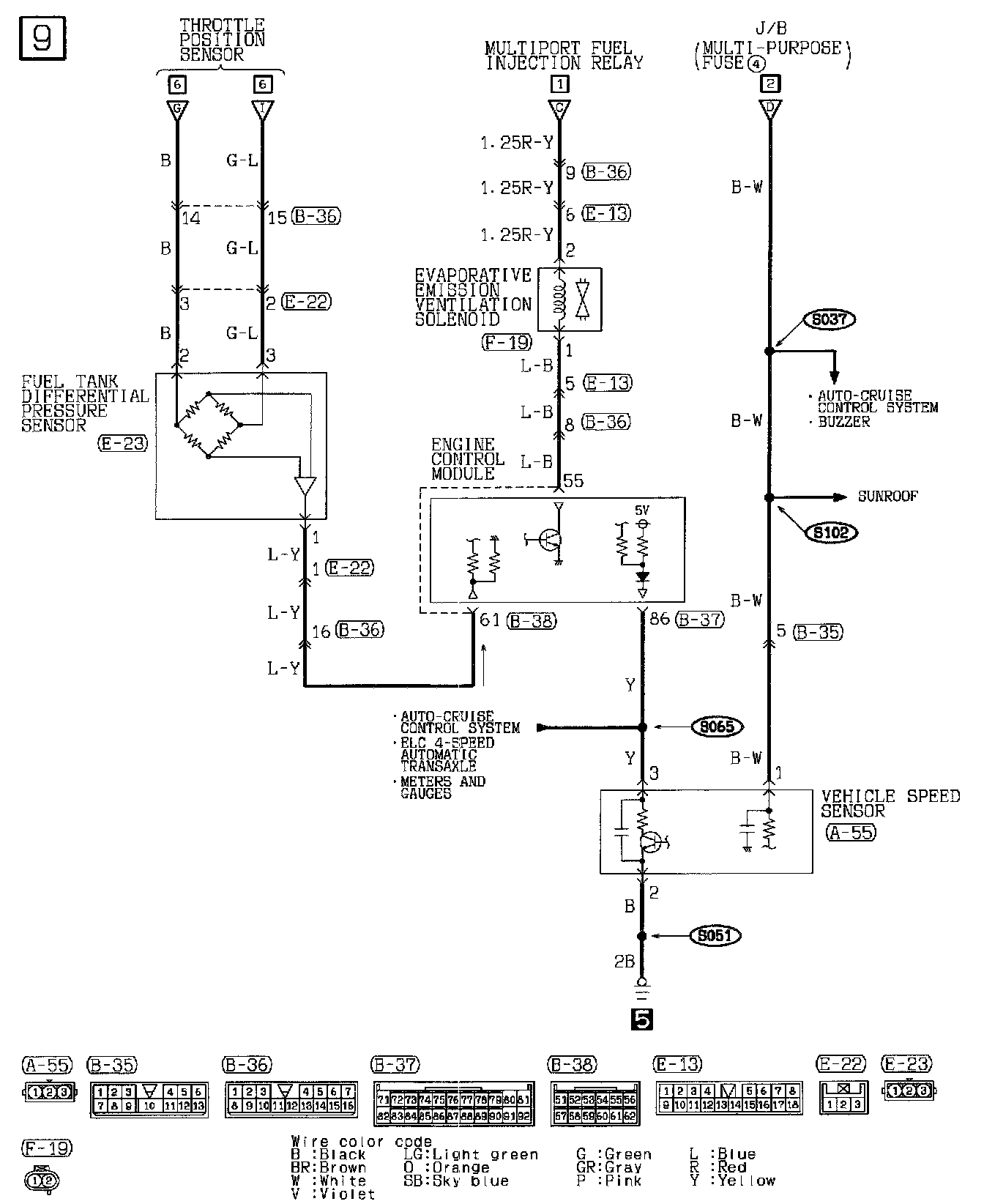

MFI System (Part 9 Of 9):

Engine Control Module
Evaporative Emission Ventilation Solenoid
Fuel Tank Differential Sensor
Vehicle Speed Sensor
