Mirage Sedan LS L4-1834cc 1.8L SOHC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Ignition System
Ignition System

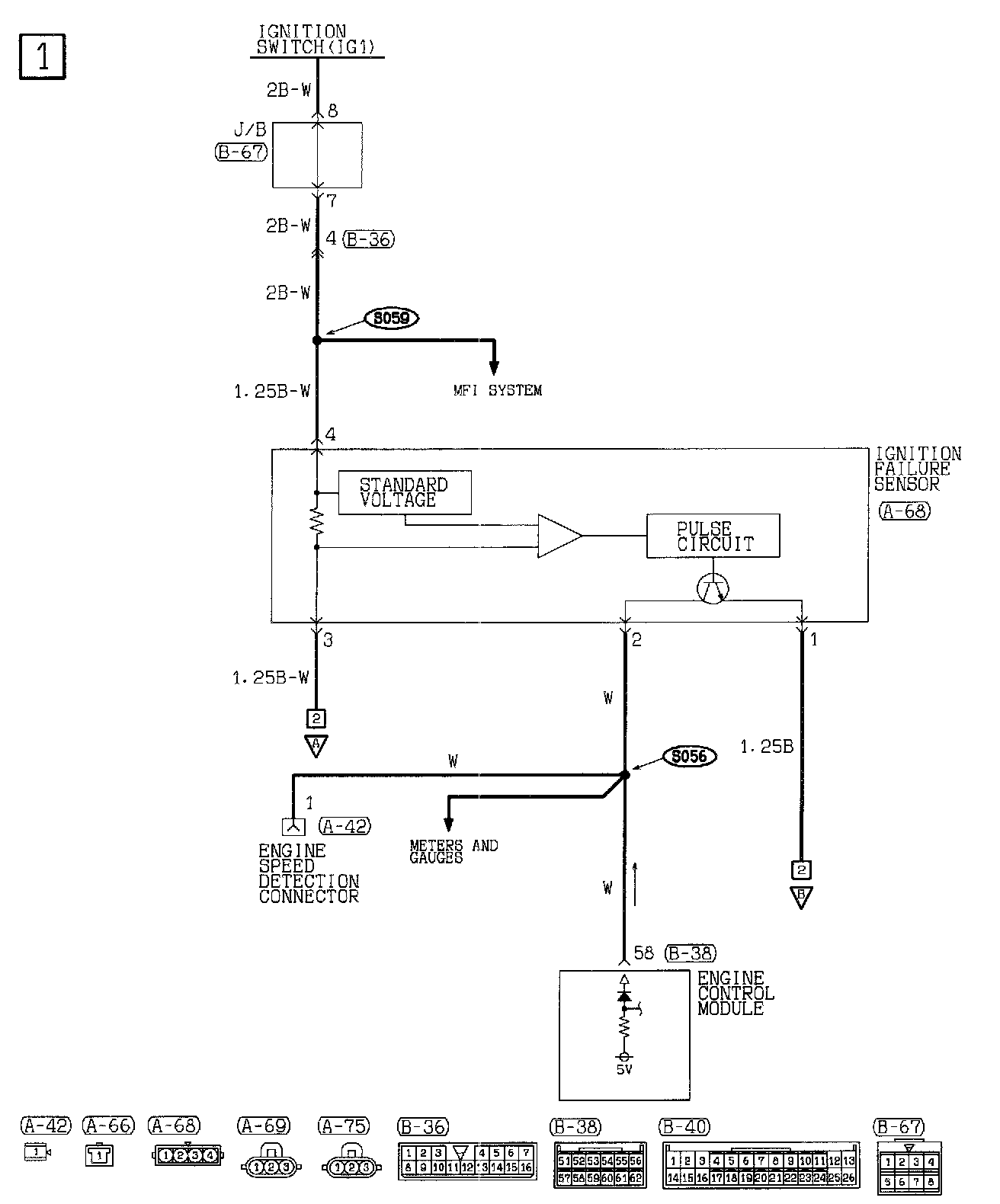

Ignition System Part 1 Of 2:

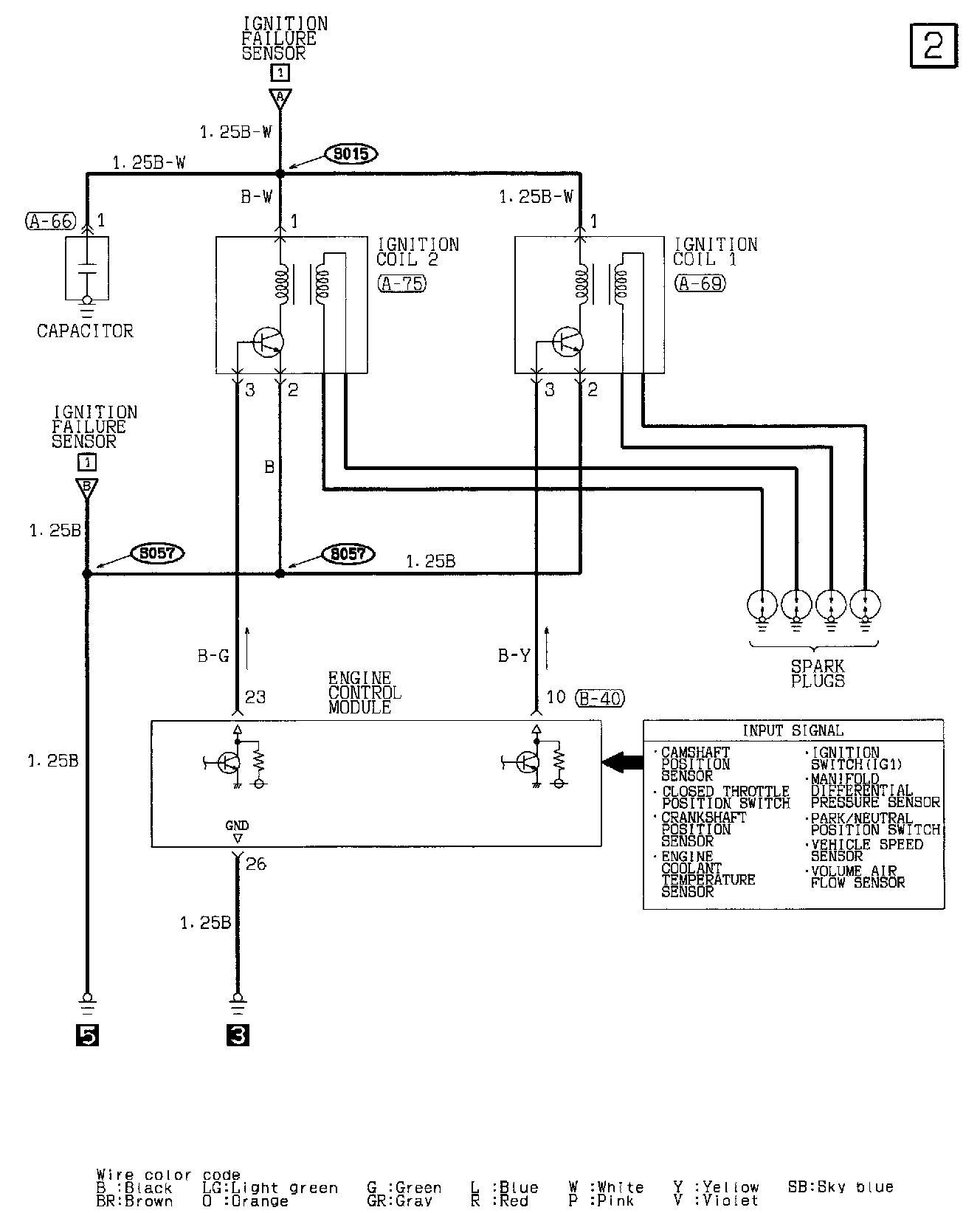

Ignition System Part 2 Of 2:
