System Diagram

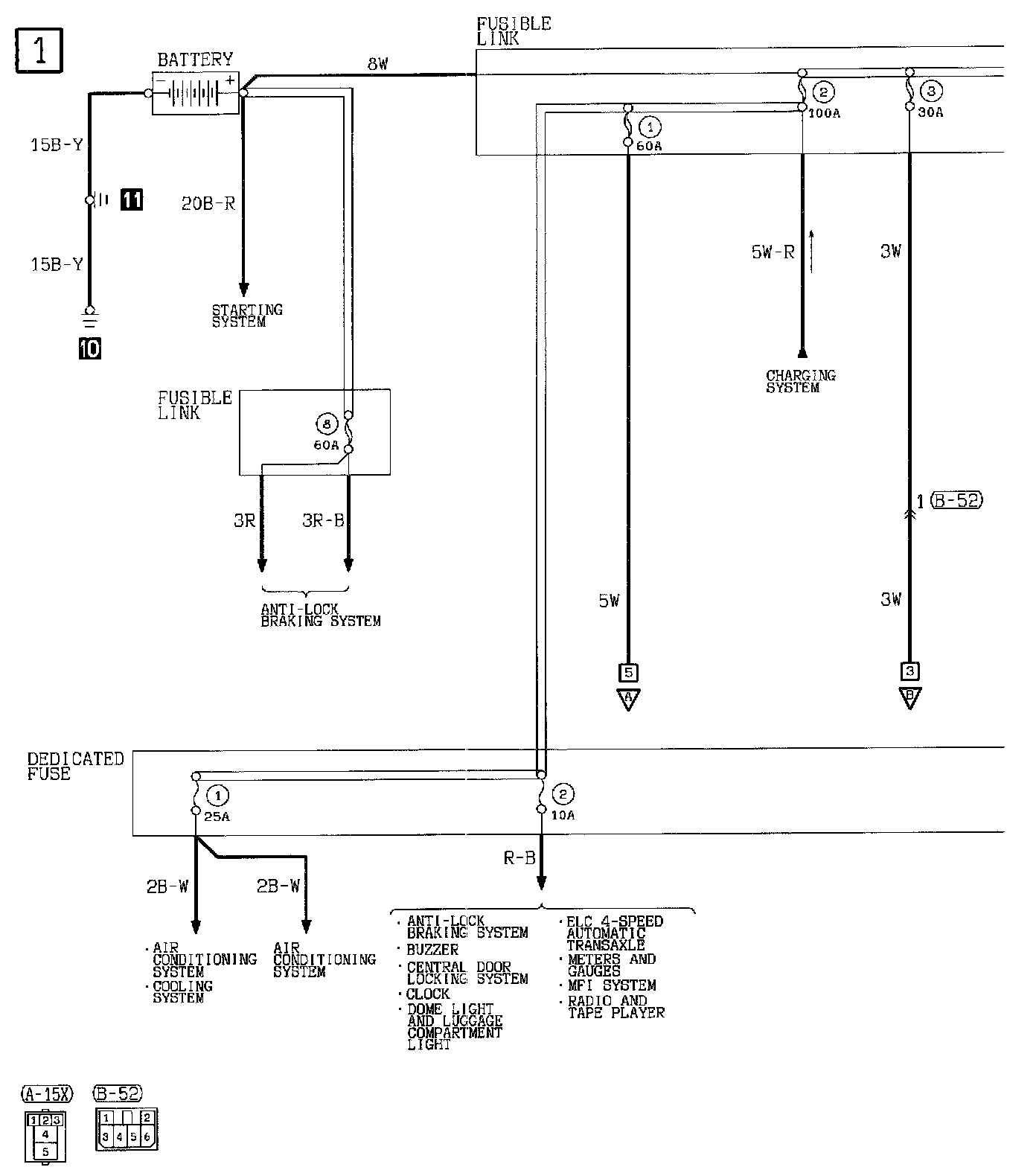

Power Distribution System (Part 1 Of 5):

Battery
Dedicated Fuse
Fusible Link

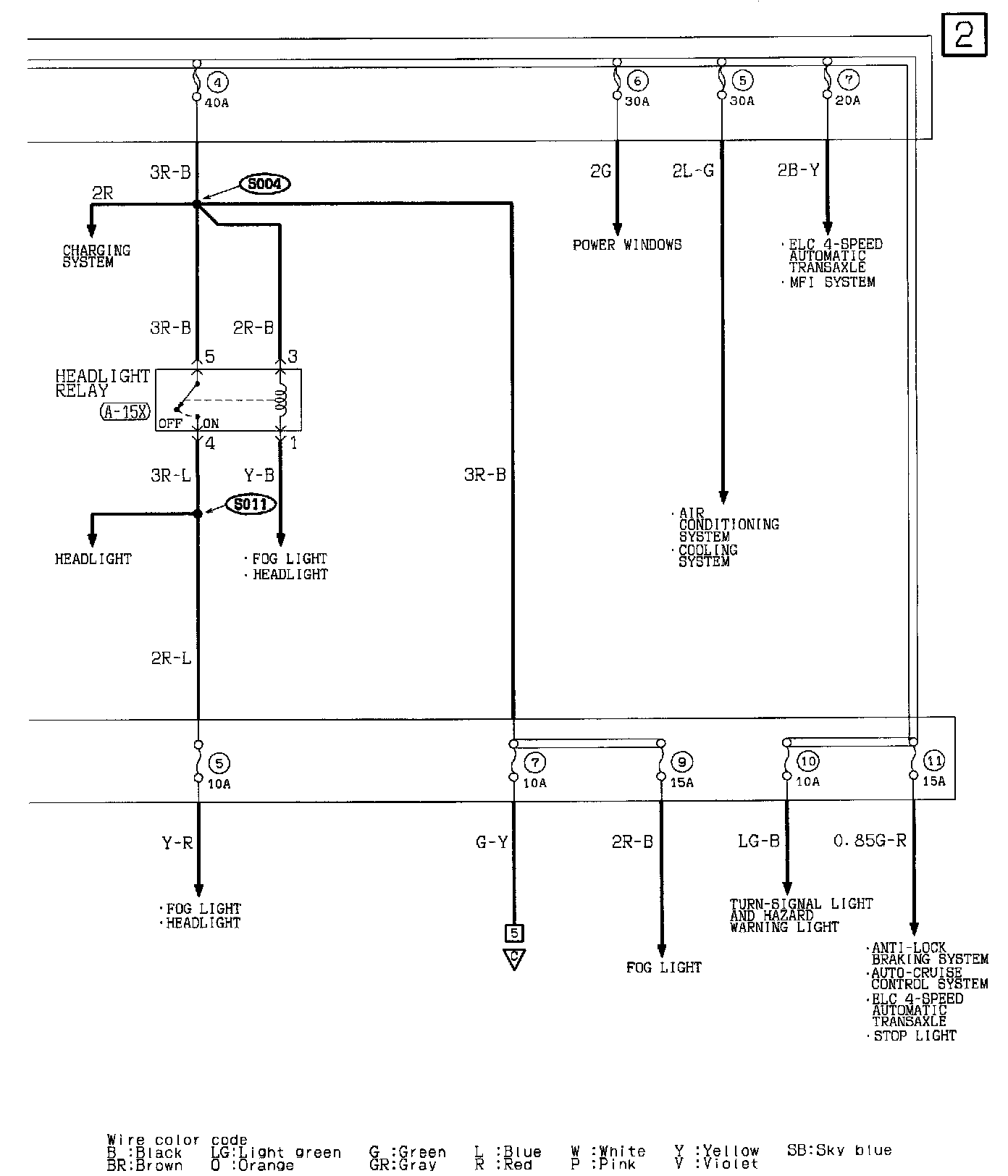

Power Distribution System (Part 2 Of 5):

Headlight Relay

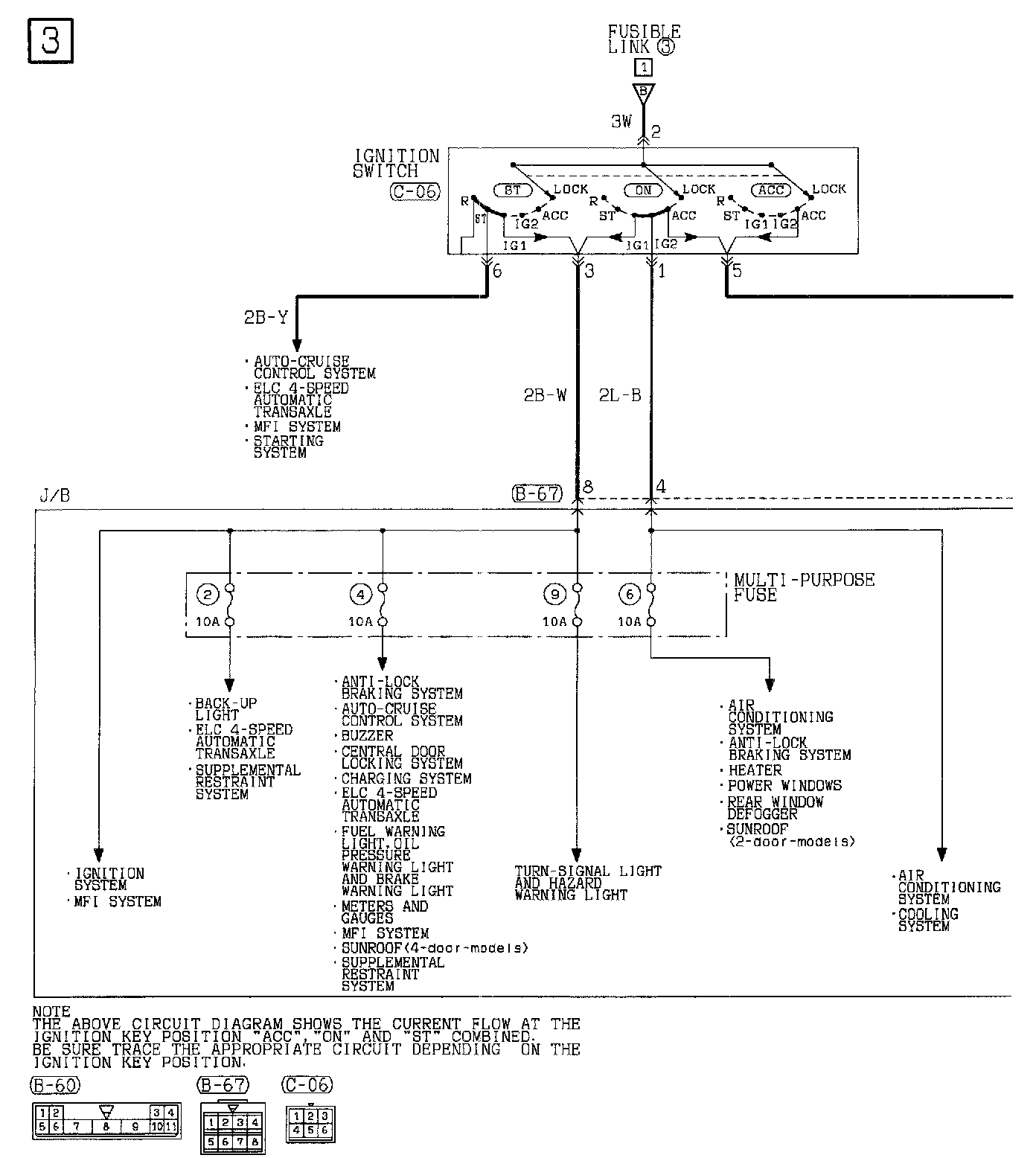

Power Distribution System (Part 3 Of 5):

Ignition Switch
Multi-Purpose Fuse
J/B

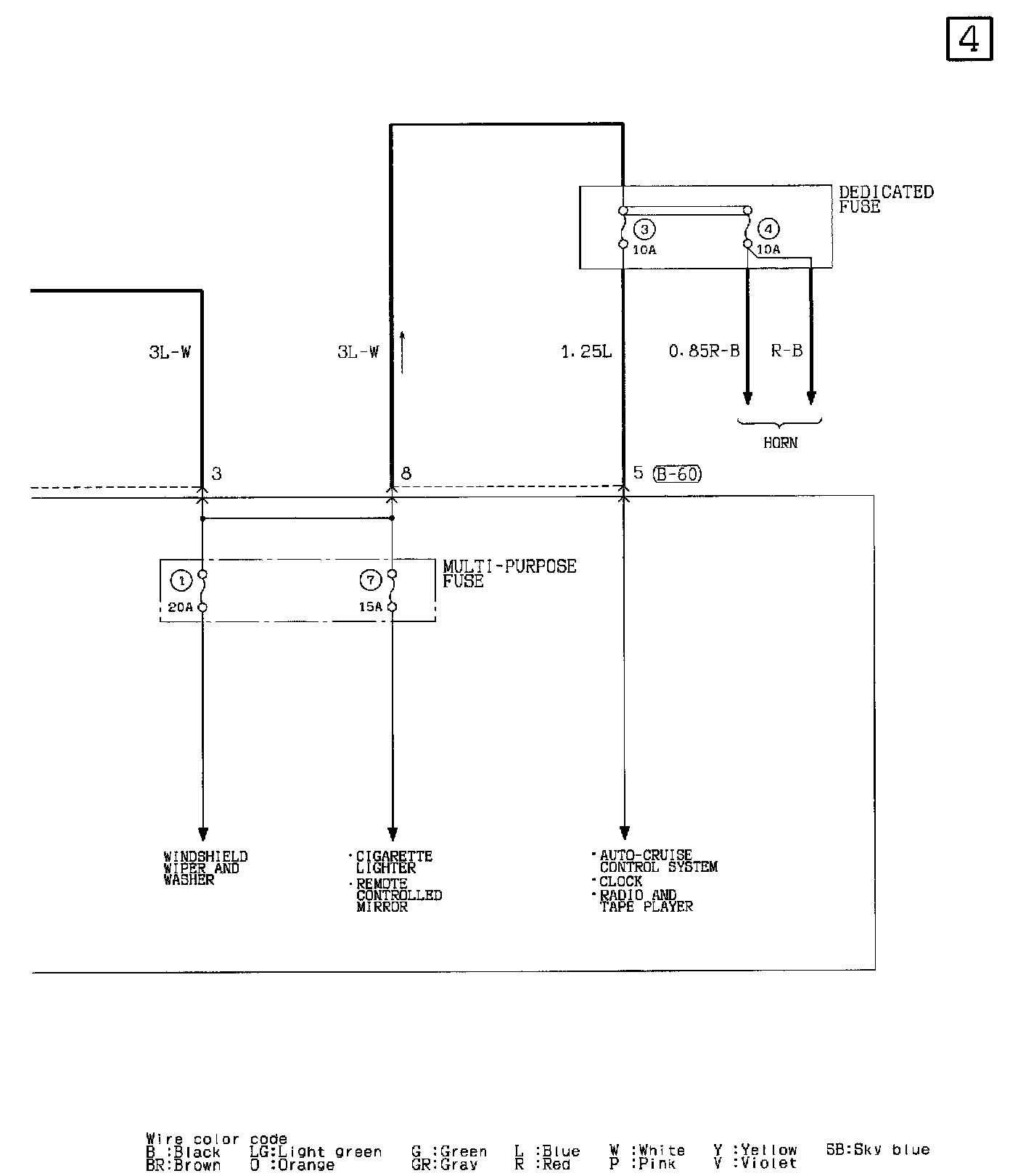

Power Distribution System (Part 4 Of 5):

Dedicated Fuse
Multi-Purpose Fuse

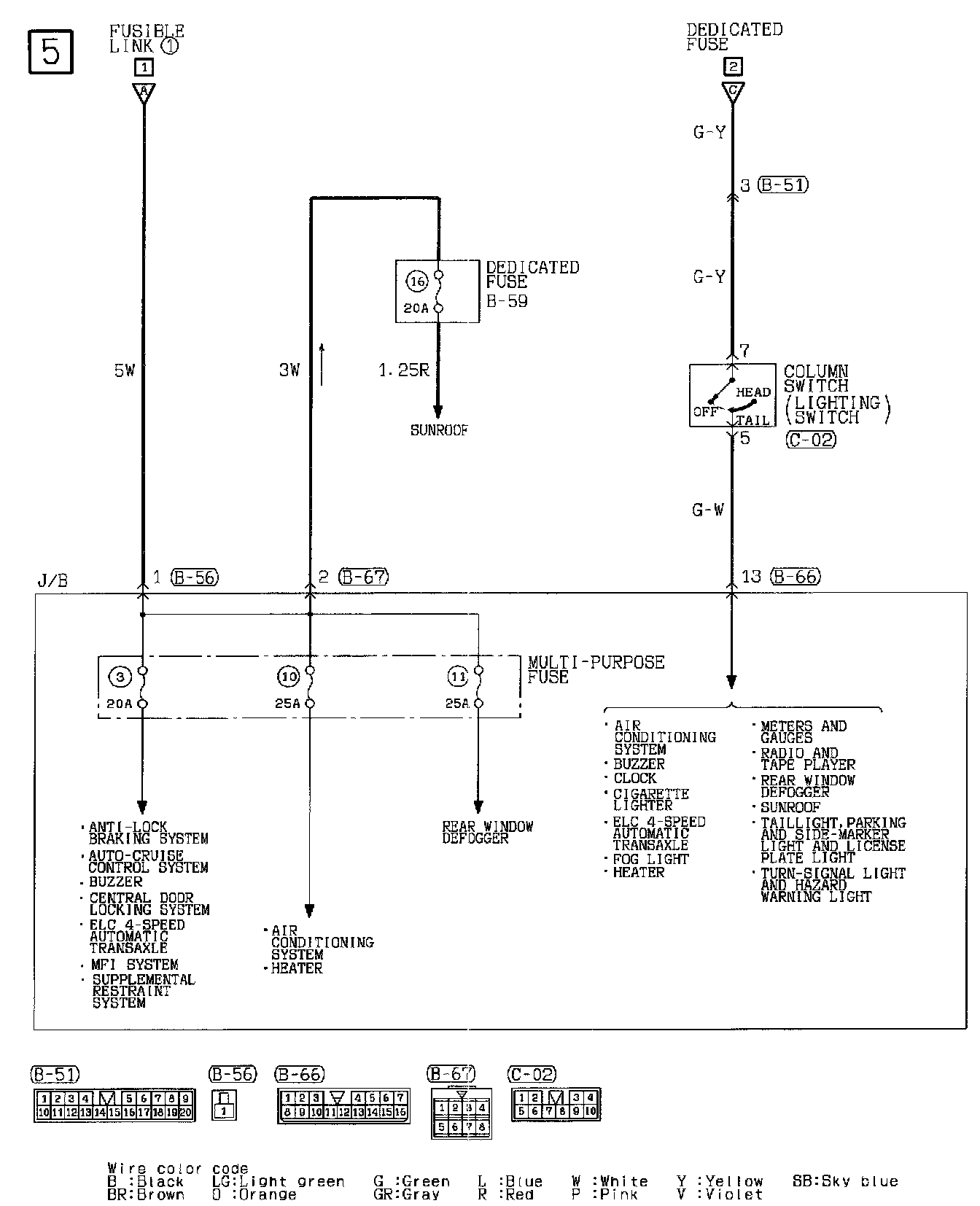

Power Distribution System (Part 5 Of 5):

Dedicated Fuse
Column Switch (Lighting Switch)
- Multi-Purpose Fuse
