Antilock Brakes / Traction Control Systems

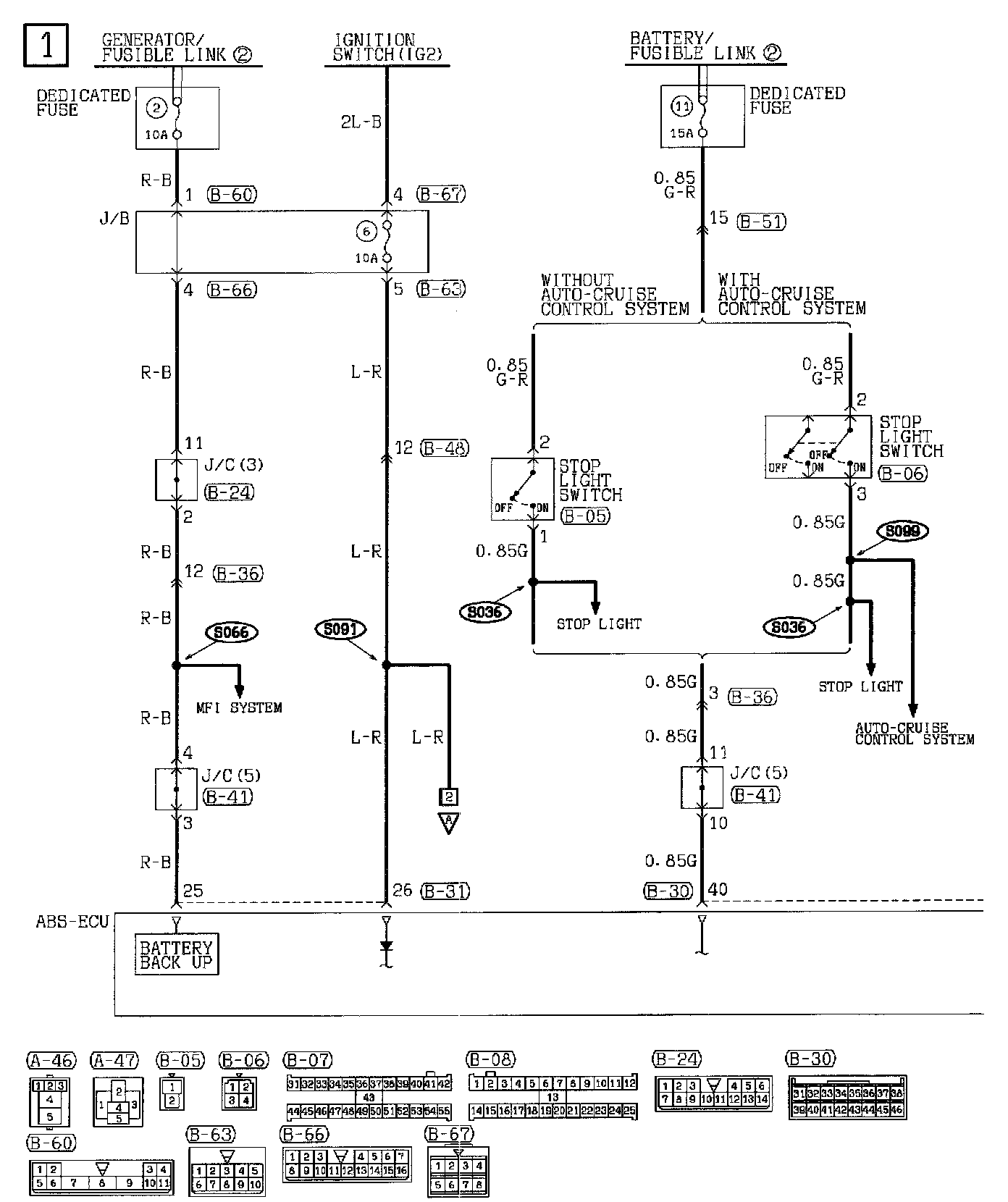

Anti-Lock Braking System (Part 1 Of 5):

ABS-ECU
- Battery Backup
Dedicated Fuse
J/B
J/C
Stop Light Switch

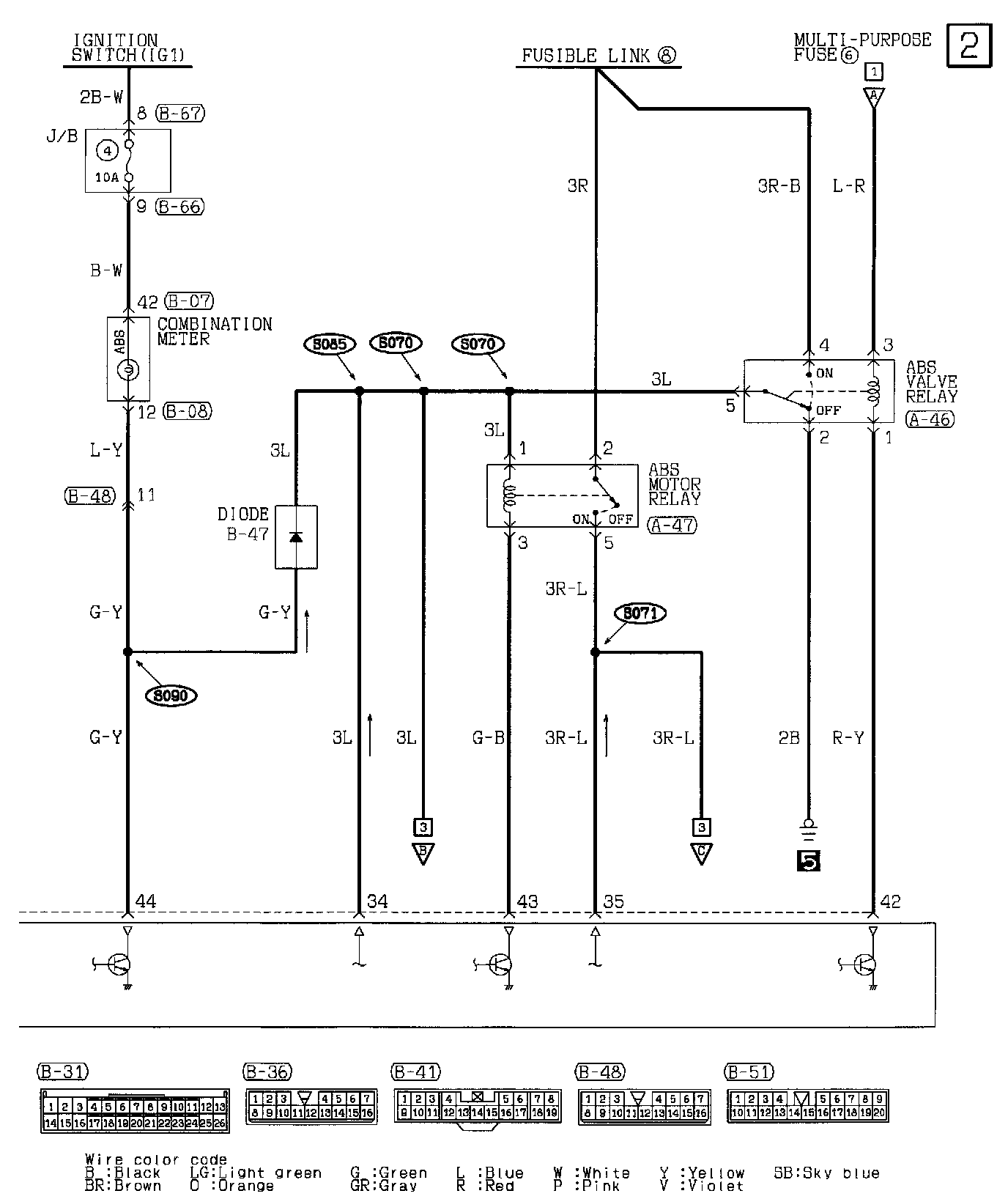

Anti-Lock Braking System (Part 2 Of 5):

ABS Valve Relay
ABS Motor Relay
Diode
Combination Meter
J/B

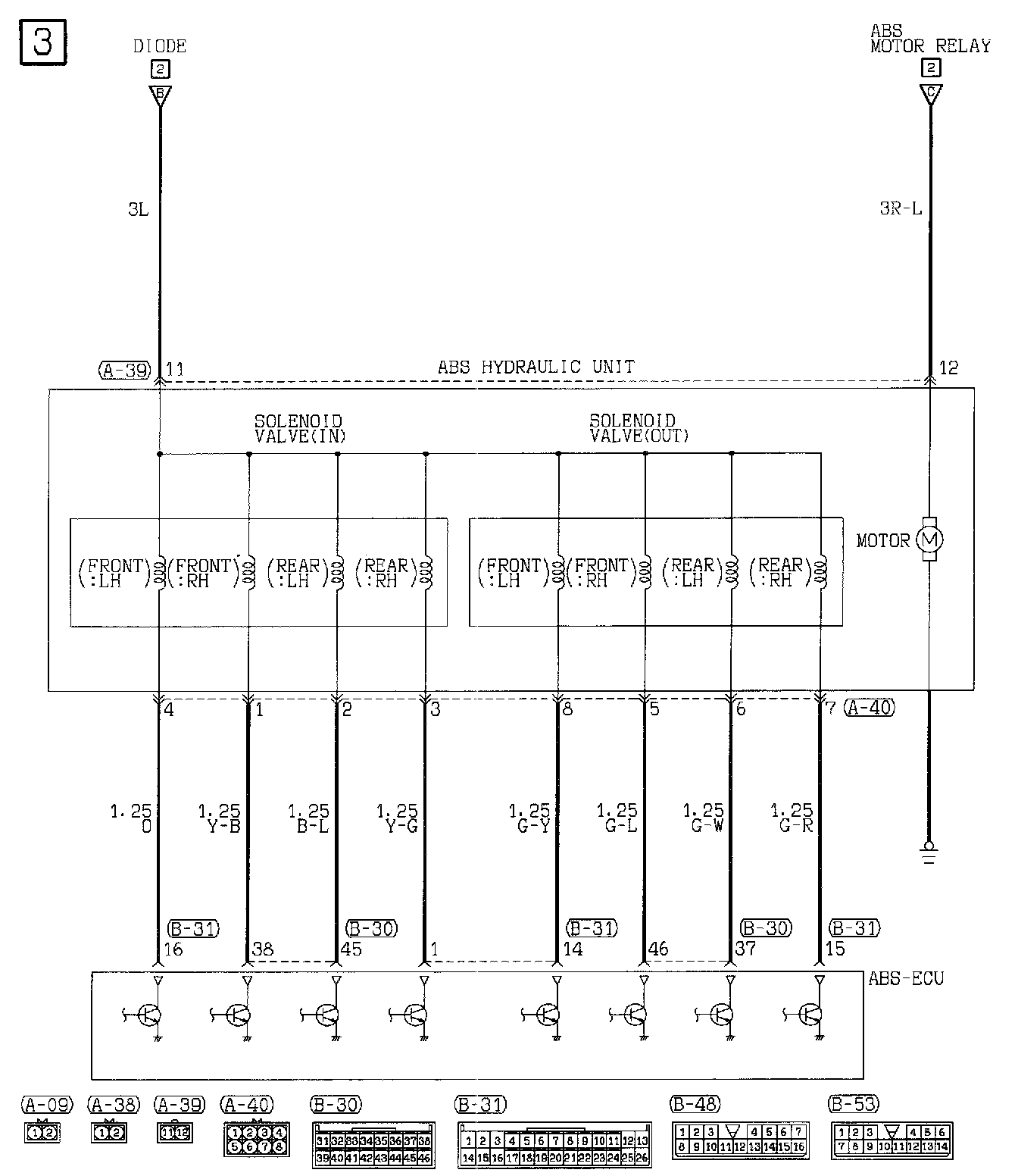

Anti-Lock Braking System (Part 3 Of 5):

ABS Hydraulic Unit
ABS-ECU

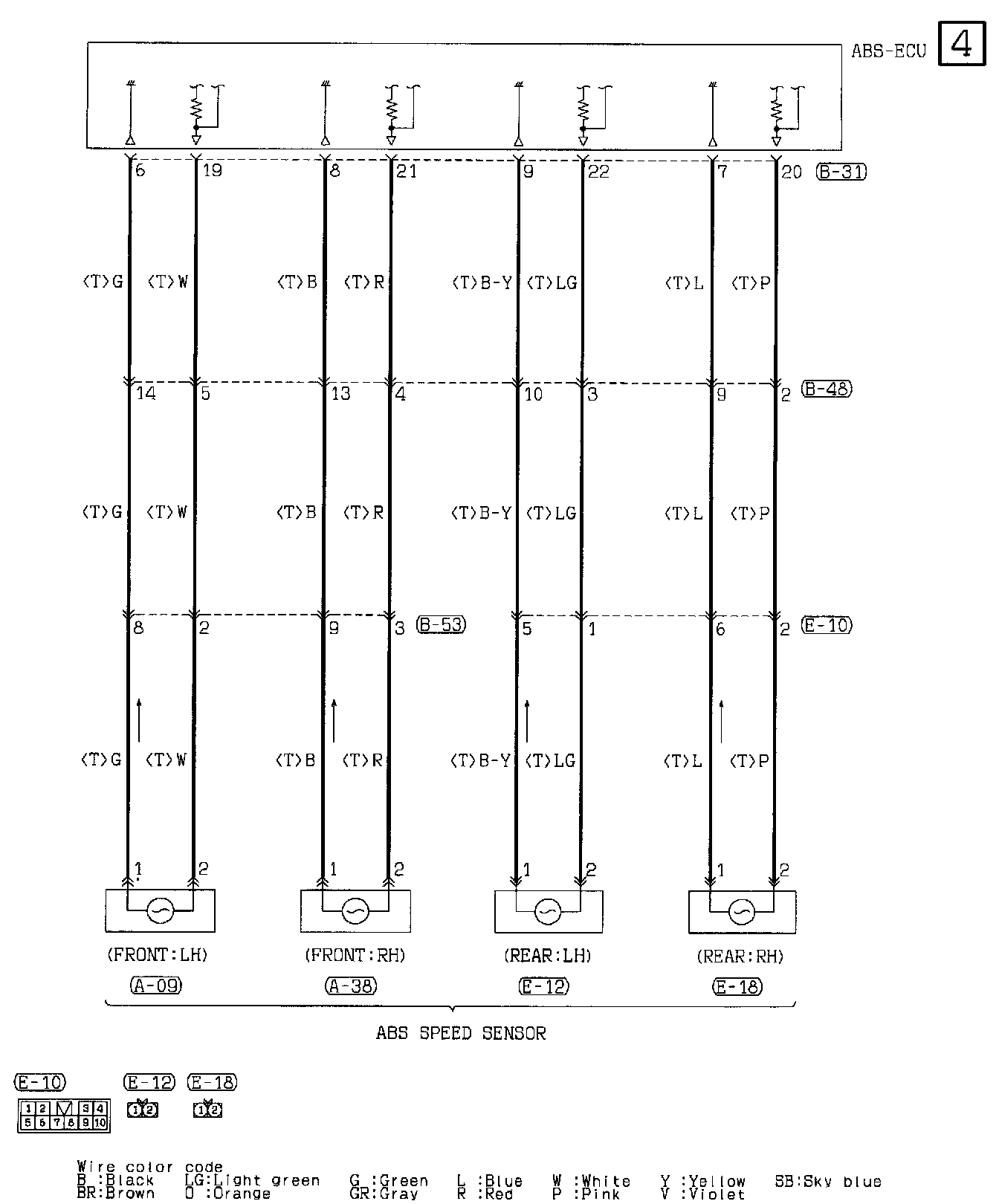

Anti-Lock Braking System (Part 4 Of 5):

ABS-ECU
ABS Speed Sensor
- Front (LH & RH)
- Rear (LH & RH)

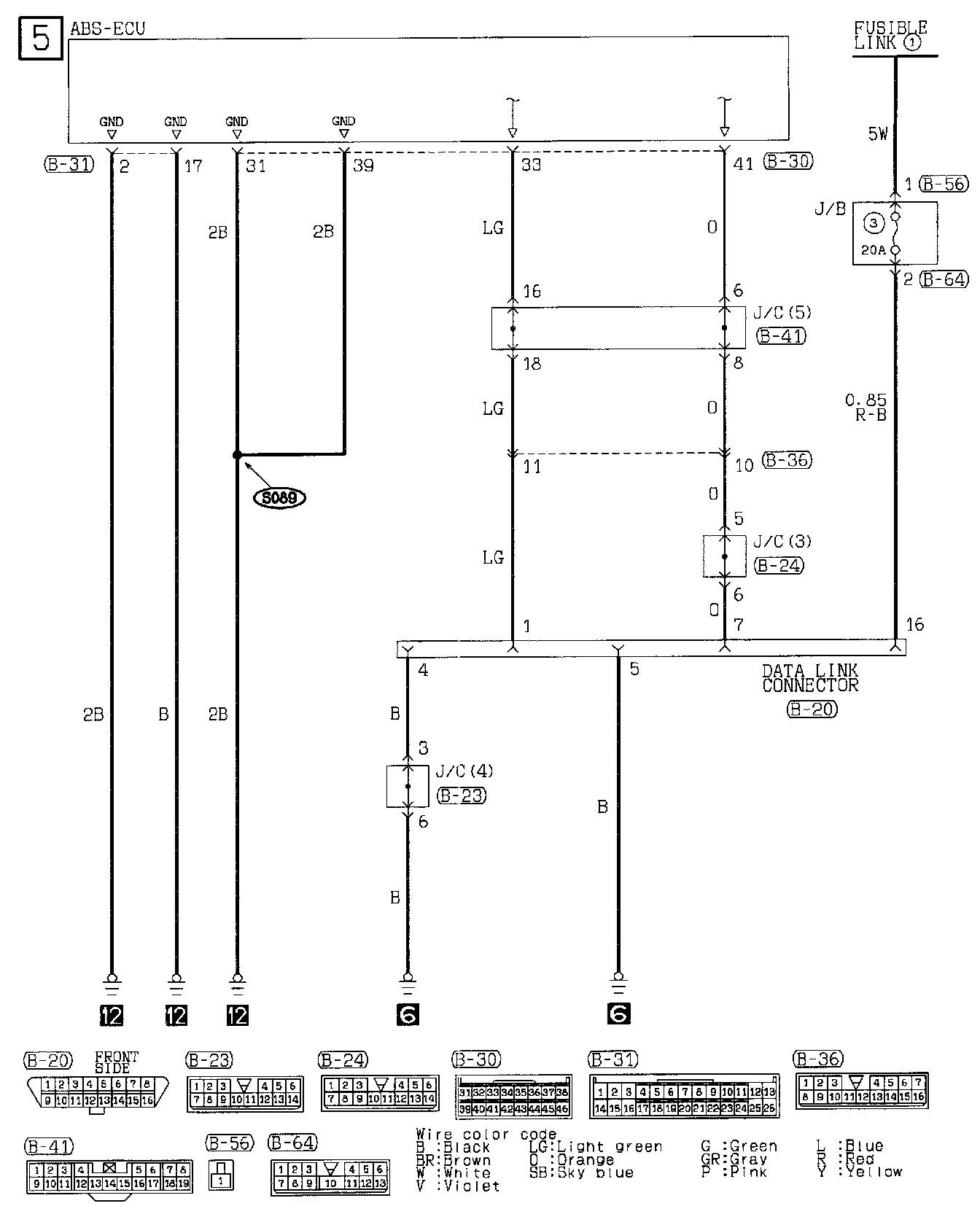

Anti-Lock Braking System (Part 5 Of 5):

ABS-ECU
Data Link Connector
J/B
J/C
