With Auto-Cruise Control Indicator Light

Using a auto-cruise control indicator light

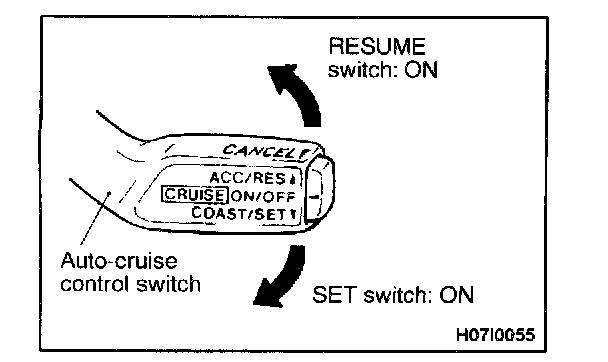

1. Turn the ignition switch "ON" with the "SET" switch ON. Then, turn the "RESUME" switch ON within one second.
2. Read a diagnostic trouble code by observing the flash display pattern of the auto-cruise control indicator light in the combination meter.

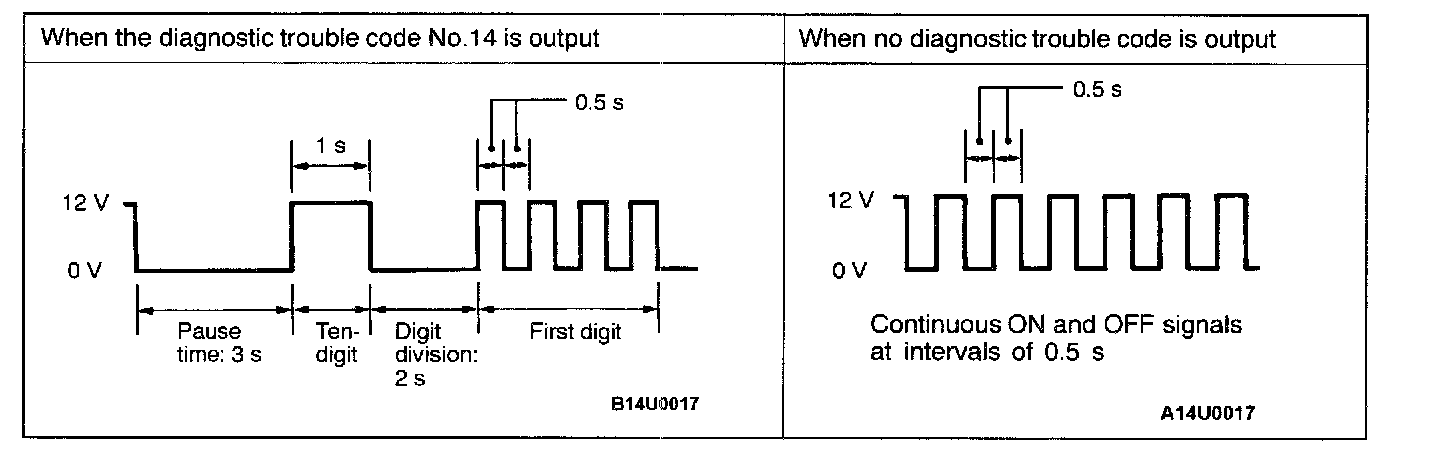

DIAGNOSTIC RESULT DISPLAY METHOD WHEN USING THE AUTO-CRUISE CONTROL INDICATOR LIGHT

NOTE: Other diagnosis items are also output as voltage waveforms corresponding to diagnosis code numbers.
