Mitsubishi
>>
2000
>>
Mirage Sedan LS L4-1834cc 1.8L SOHC MFI
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters

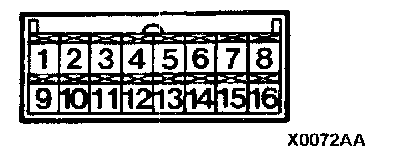

Connector View:

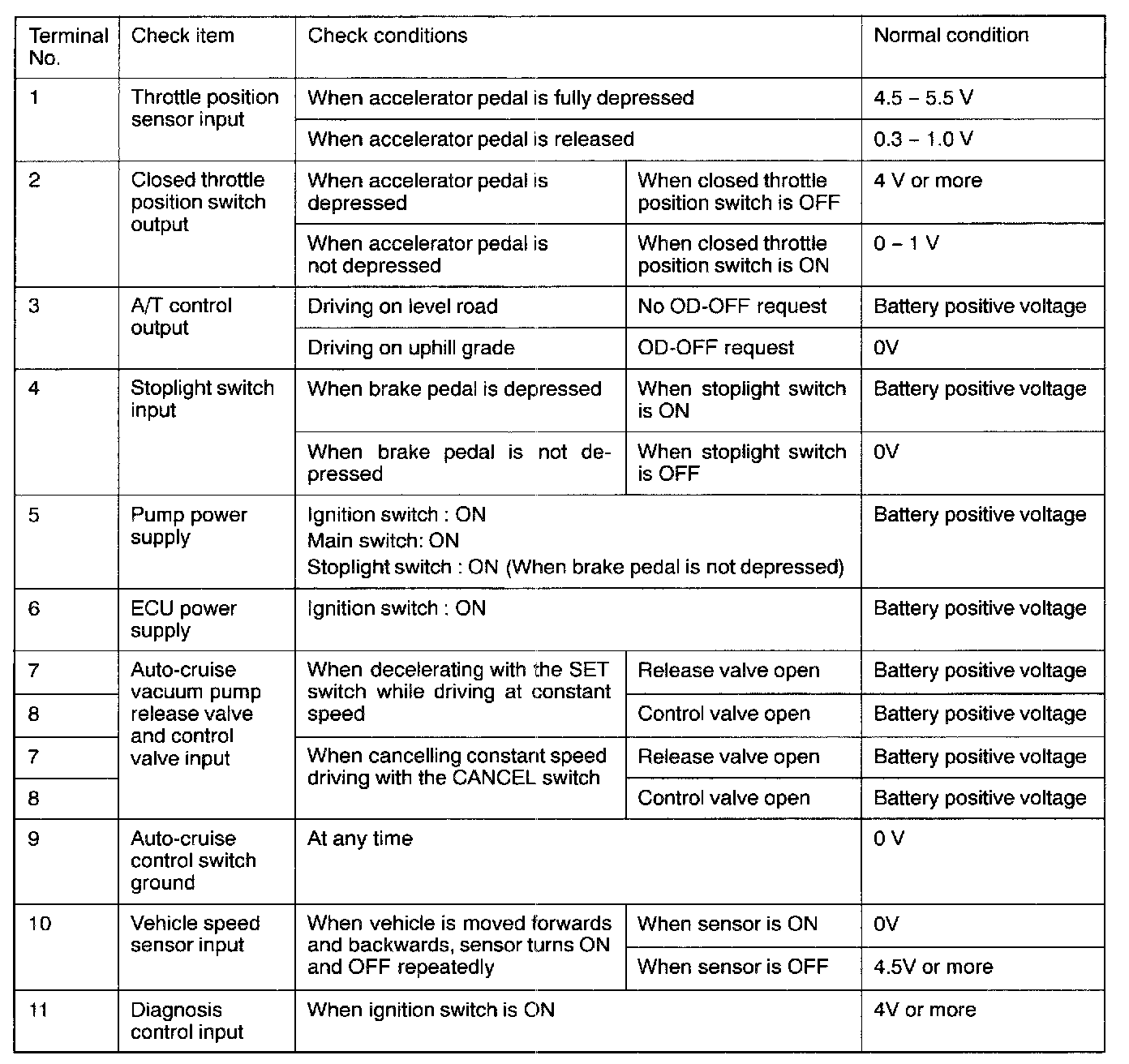

Terminals 1 - 11:

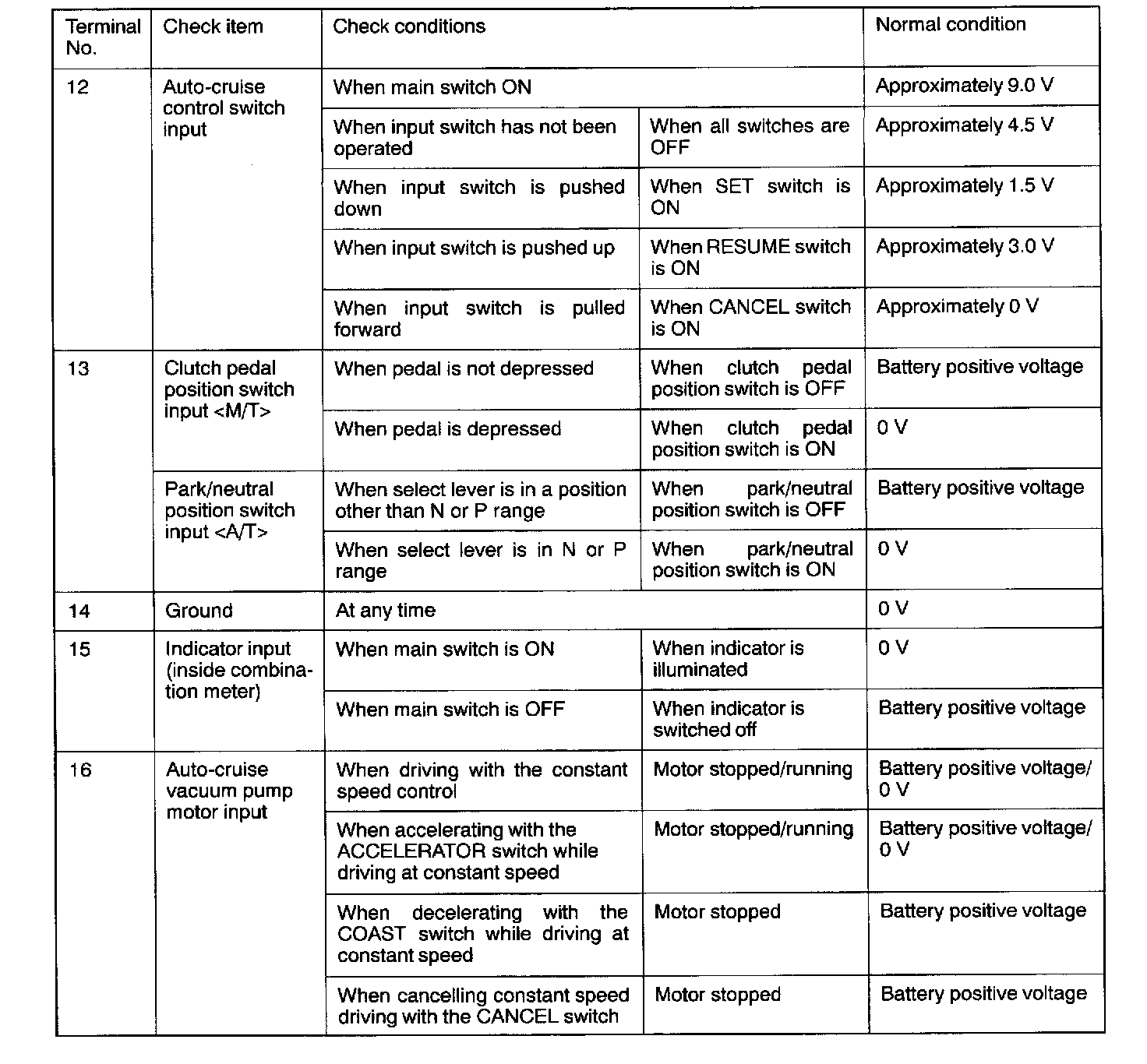

Terminals 12 - 16:
