With 14 Inch Wheels

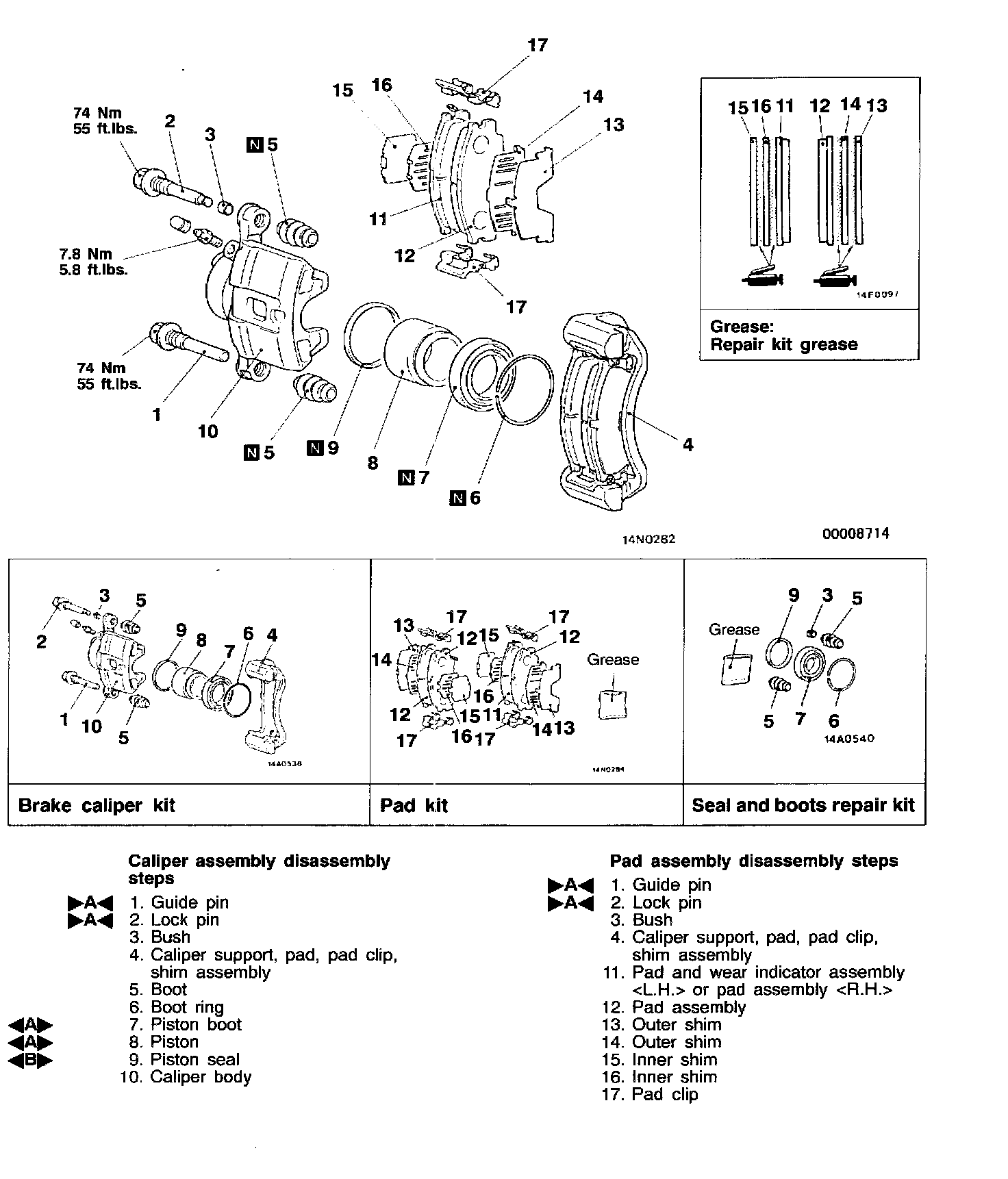

DISASSEMBLY AND REASSEMBLY

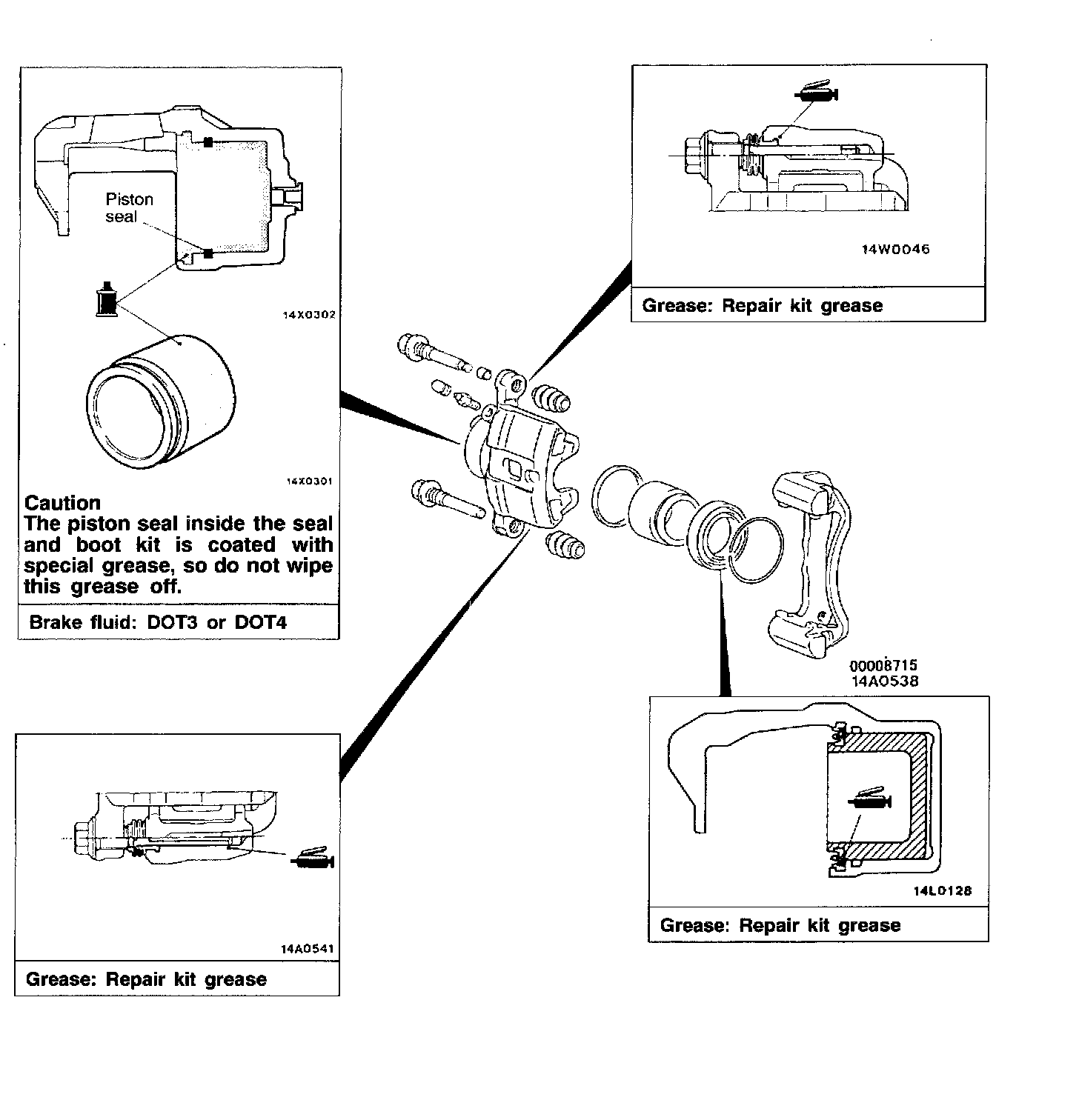

LUBRICATION POINTS

Disassembly Service Points
When disassembling the front disc brakes, disassemble both sides (left and right) as a set.
Piston Boot/Piston Removal

Protect caliper body with cloth. Blow compressed air through brake hose to remove piston boot and piston.

CAUTION: Blow compressed air gently and wear eye protection.

Piston Seal Removal

1. Remove piston seal with finger tip.

CAUTION: Do not use a flat-tipped screwdriver or other tool to prevent damage to inner cylinder.

2. Clean piston surface and inner cylinder with trichloroethylene, alcohol or specified brake fluid.
Specified brake fluid: DOT3 or DOT4

Reassembly Service Point
>A< Lock Pin/Guide Pin Installation

Install the lock pin and guide pin so that the pin head marks correspond to the identification marks on the caliper body.

INSPECTION
- Check cylinder for wear, damage or rust.
- Check piston surface for wear, damage or rust.
- Check caliper body or sleeve for wear.
- Check pad for damage or adhesion of grease, check backing metal for damage.
