Brakes and Traction Control: Description and Operation

GENERAL INFORMATION





The brake system offers high dependability and durability along with improved braking performance and brake sensitivity.
- A tandem type master cylinder is equipped on all models.
- A single type brake booster have been adopted.
- Floating calmer, 1-piston, ventilated disc brakes have been adopted as the front brakes for all models.
- Each rear drum brake is Equipped with leading-trailing type brake shoes.

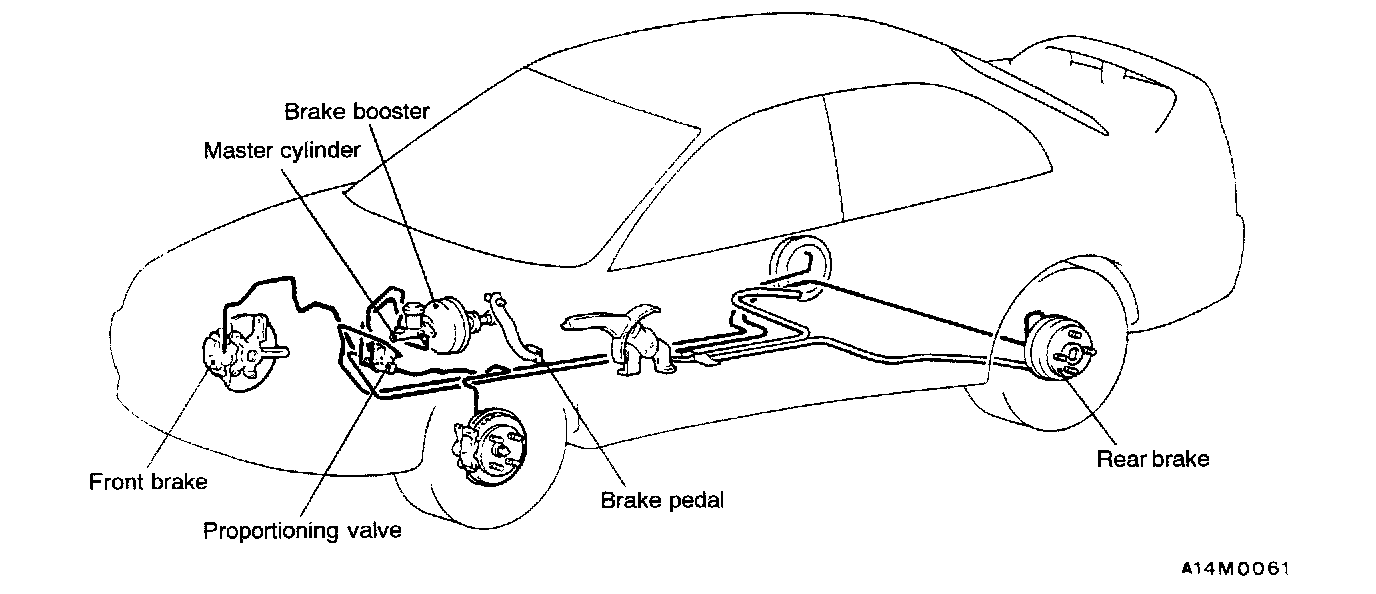

CONSTRUCTION DIAGRAM
