Pinout Values and Diagnostic Parameters

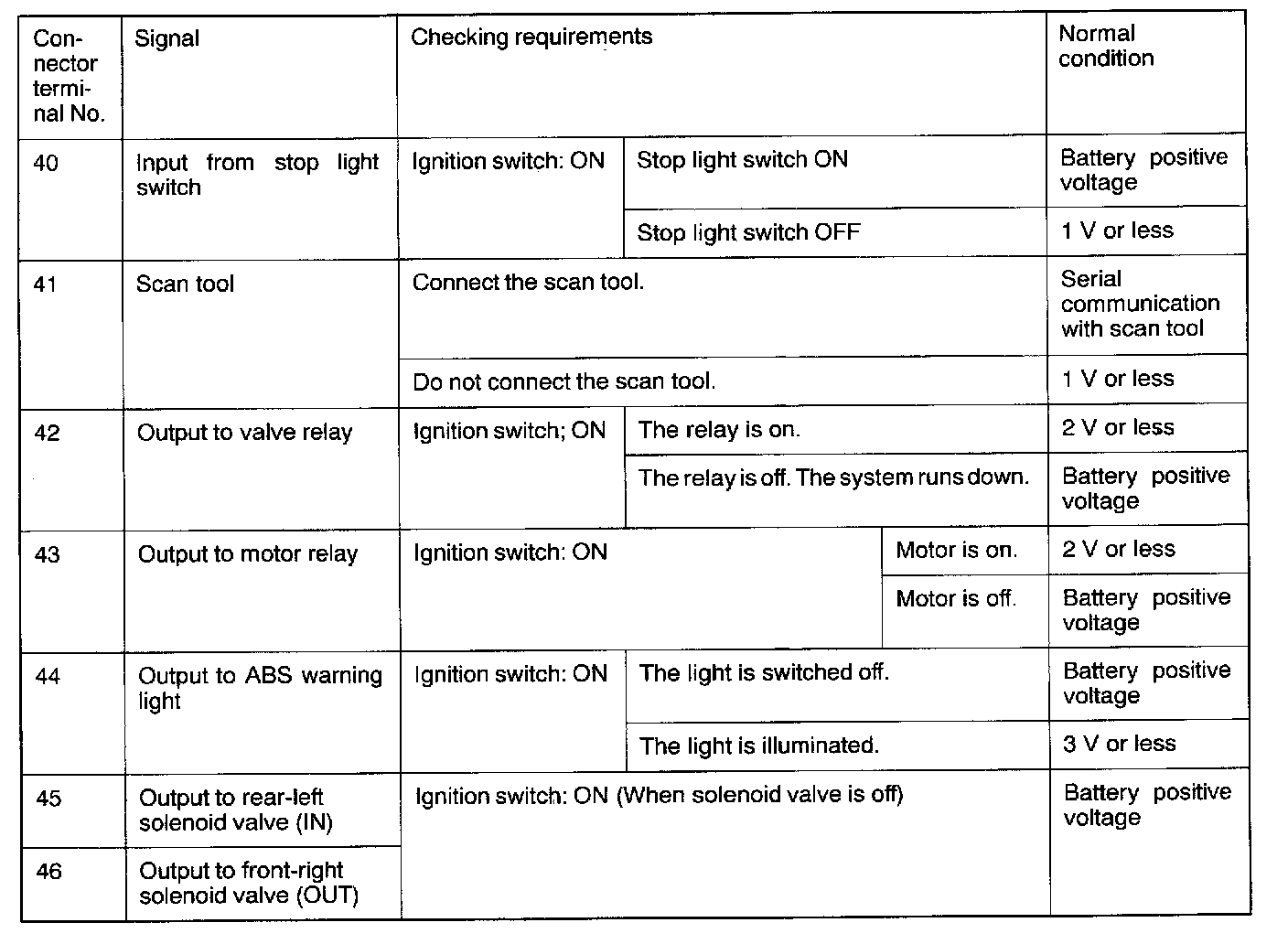

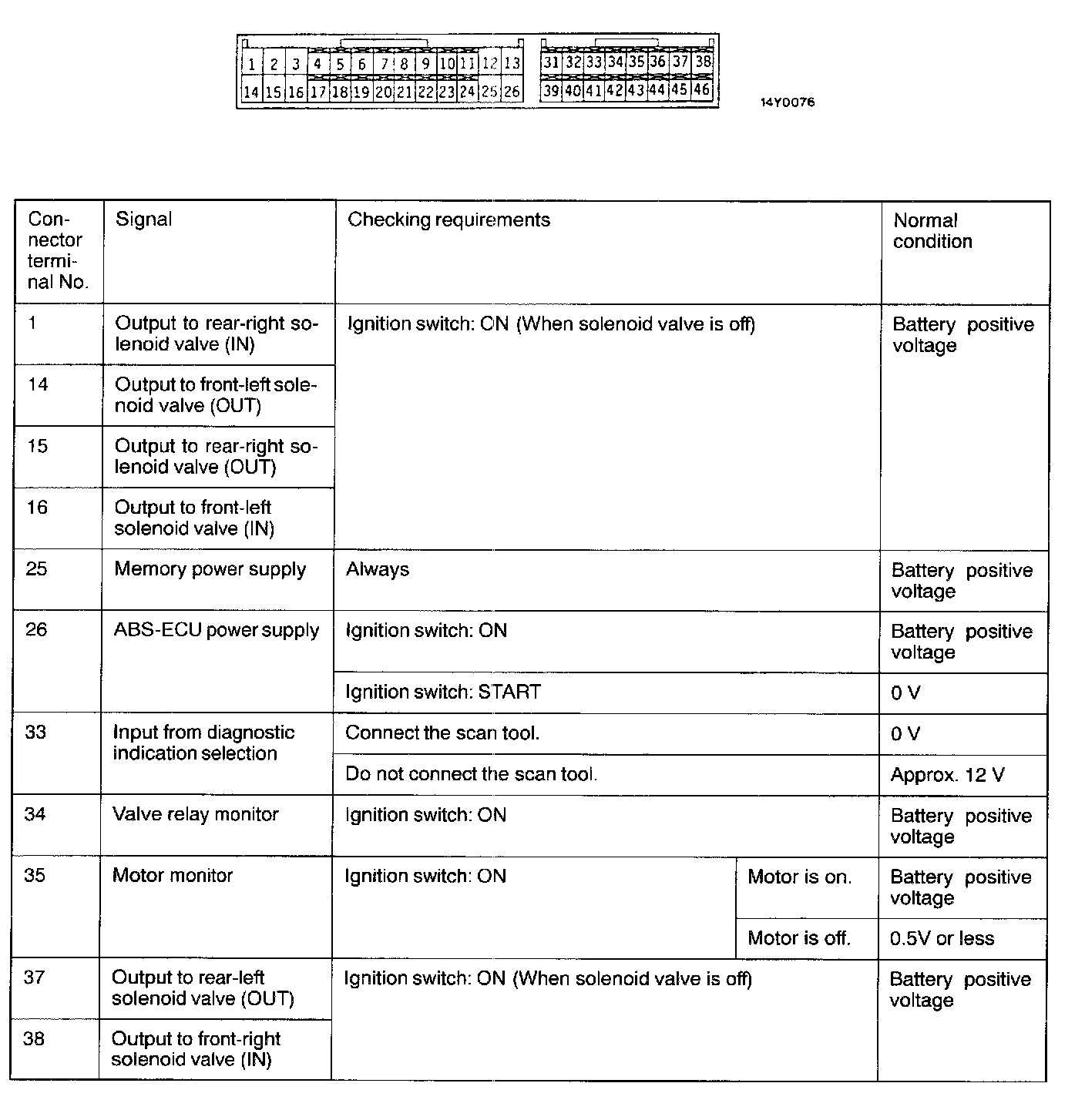

TERMINAL VOLTAGE CHECK CHART

Part 1 Of 2:

Part 2 Of 2:

1. Measure the voltages between terminals (15), (25) and (42) (ground terminals) and each respective terminal.

NOTE: Do not measure terminal voltage for approx. 3 seconds after the ignition switch is turned on. The ABS-ECU performs the initial check for that period.

2. The terminal layouts are shown in the illustrations below.

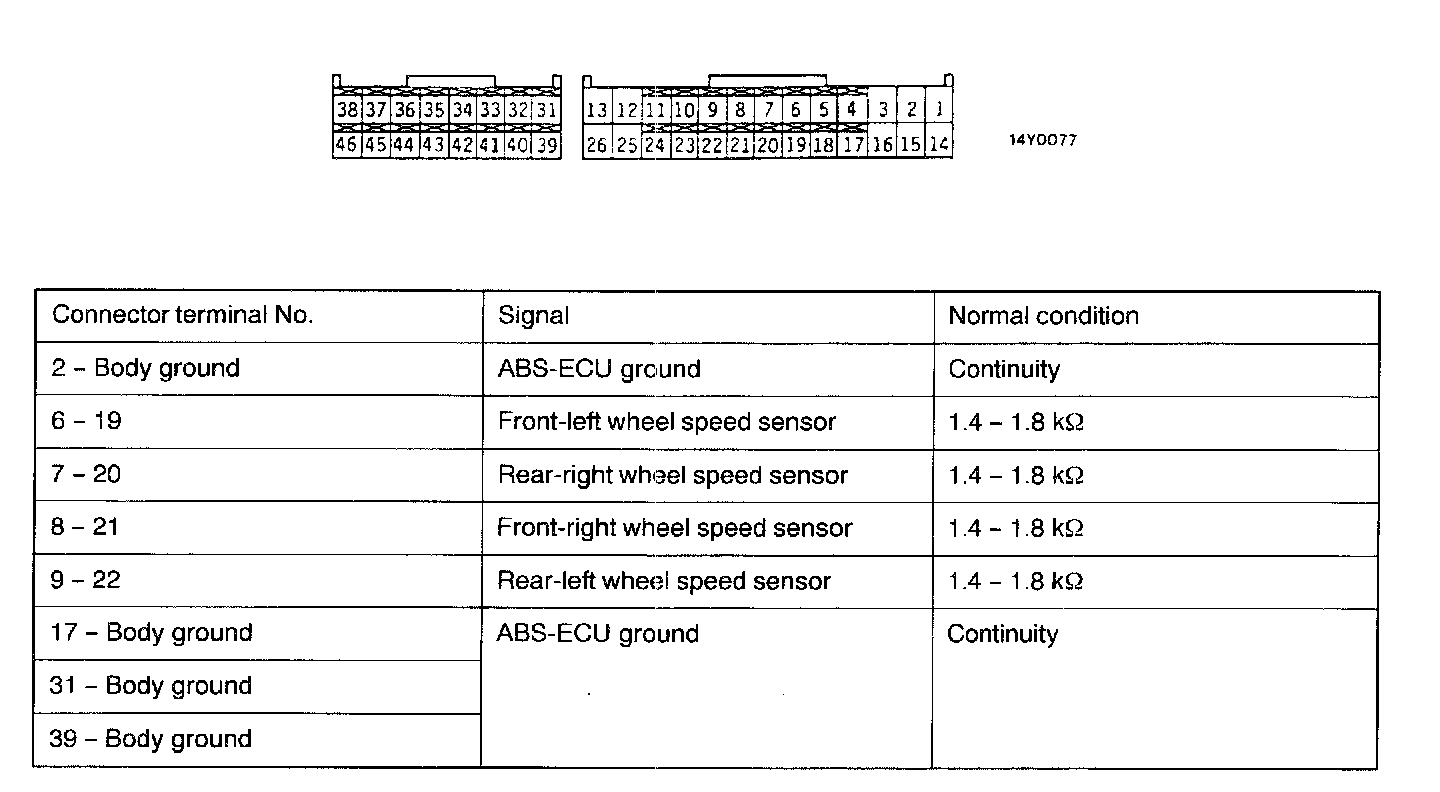

RESISTANCE AND CONTINUITY BETWEEN HARNESS-SIDE CONNECTOR TERMINALS





1. Turn the ignition switch off and disconnect the ABS-ECU connectors before checking resistance and continuity.
2. Check them between the terminals indicated in the table below.
3. The terminal layouts are shown in the illustrations below.
