Hydraulic Assembly: Service and Repair

REMOVAL AND INSTALLATION
Removal Service Point
Hydraulic Unit Assembly Removal

CAUTION:
1. The hydraulic unit assembly is heavy, and so care should be taken when removing it.
2. The hydraulic unit assembly is not to be disassembled; its nuts and bolts should absolutely not be loosened.
3. The hydraulic unit assembly must not be dropped or otherwise subjected to impact shocks.
4. The hydraulic unit assembly must not be turned upside down or laid on its side.

Installation Service Point
>A< Brake pipe connection

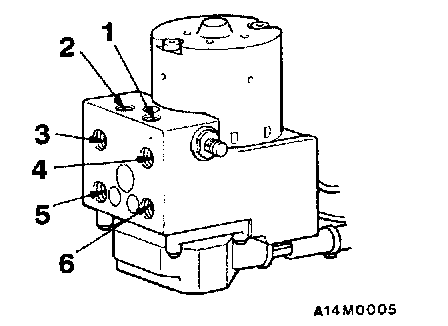

Connect the pipes to the hydraulic unit assembly as shown in the illustration.
1. To the proportioning valve (RH)
2. To the proportioning valve (LH)
3. From the master cylinder (Primary)
4. From the master cylinder (Secondary)
5. To the front brake (RH)
6. To the front brake (LH)
