ABS Light: Testing and Inspection

ABS WARNING LIGHT INSPECTION

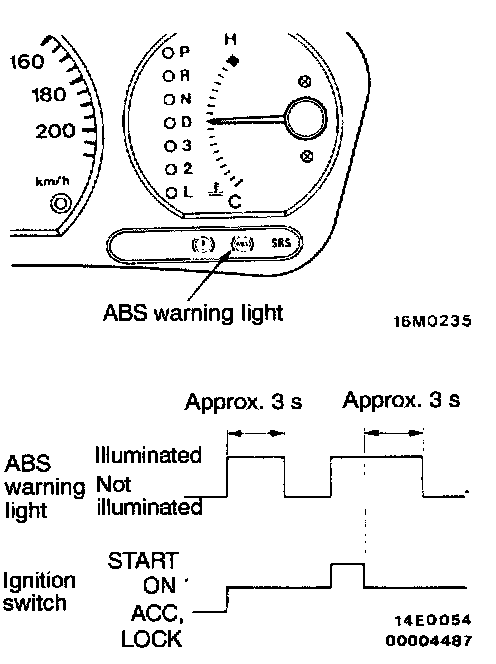

Check that the ABS warning light illuminates as follows.
1. When the ignition key is turned to "ON", the ABS warning light illuminates for approximately 3 seconds and then switches off.
2. When the ignition key is turned to "START", the ABS warning light remains illuminated.
3. When the ignition key is released from the "START" position, the ABS warning light illuminates for approximately 3 seconds and then switches off.
4. If the illumination is other than the above, check the diagnostic trouble codes.
Reading Diagnostic Trouble Codes
