Removal and Installation

Pre-removal and Post-installation
Rear Floor Console Assembly Removal and Installation

INSTALLATION SERVICE POINT

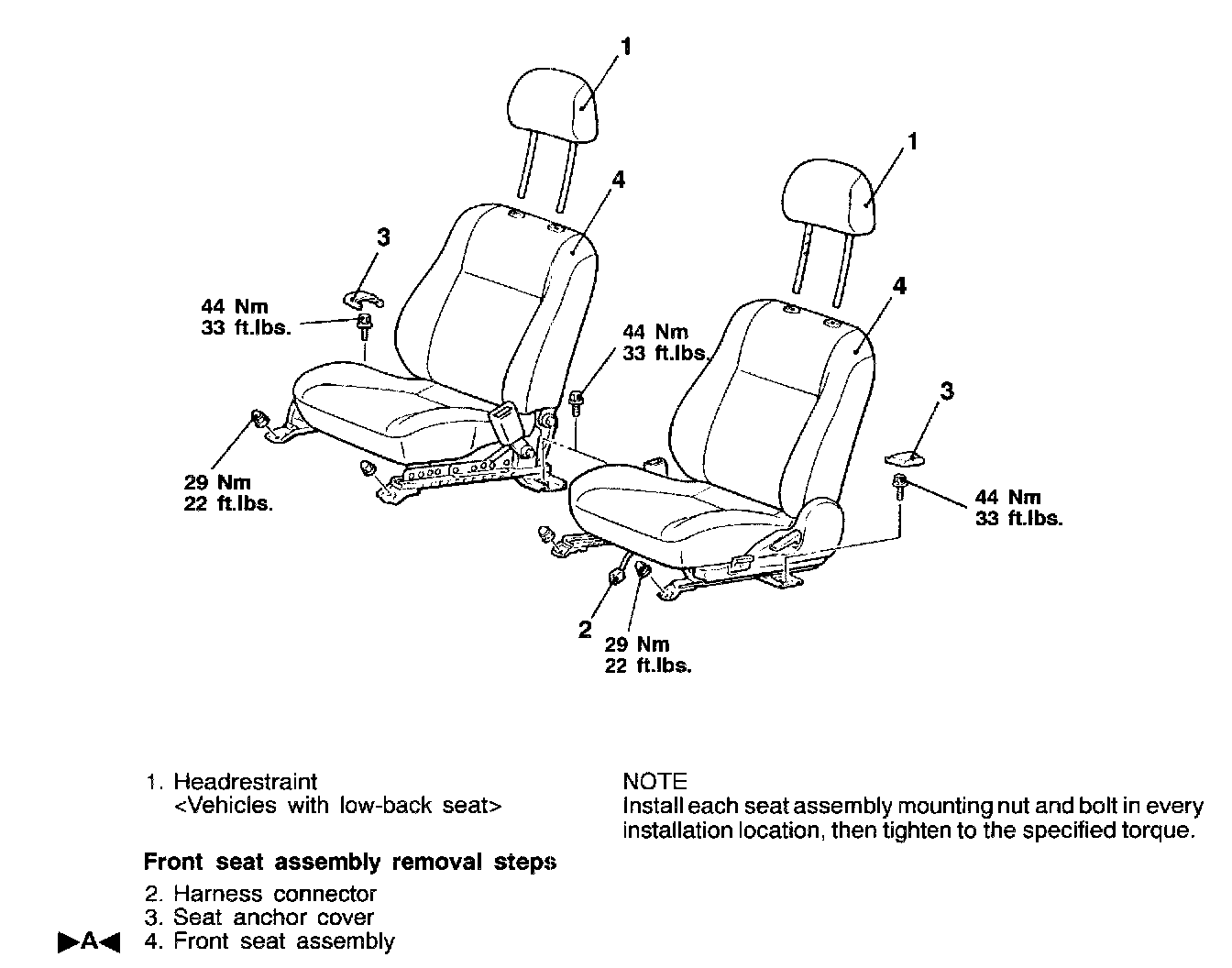

FRONT SEAT ASSEMBLY INSTALLATION

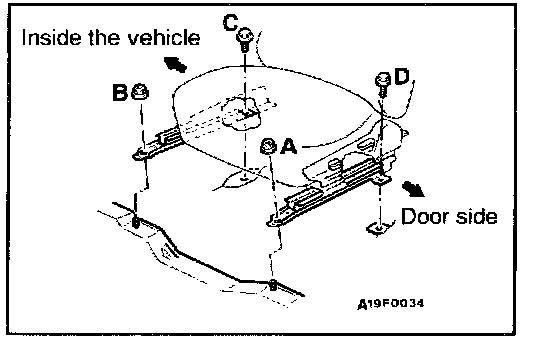

Tighten the front seat mounting bolts in the order A, B, C, and D.
