Home >> Mitsubishi >> 2000 >> Mirage Sedan LS L4-1834cc 1.8L SOHC MFI >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Power Door Lock Switch >> Testing and Inspection

Power Door Lock Switch: Testing and Inspection

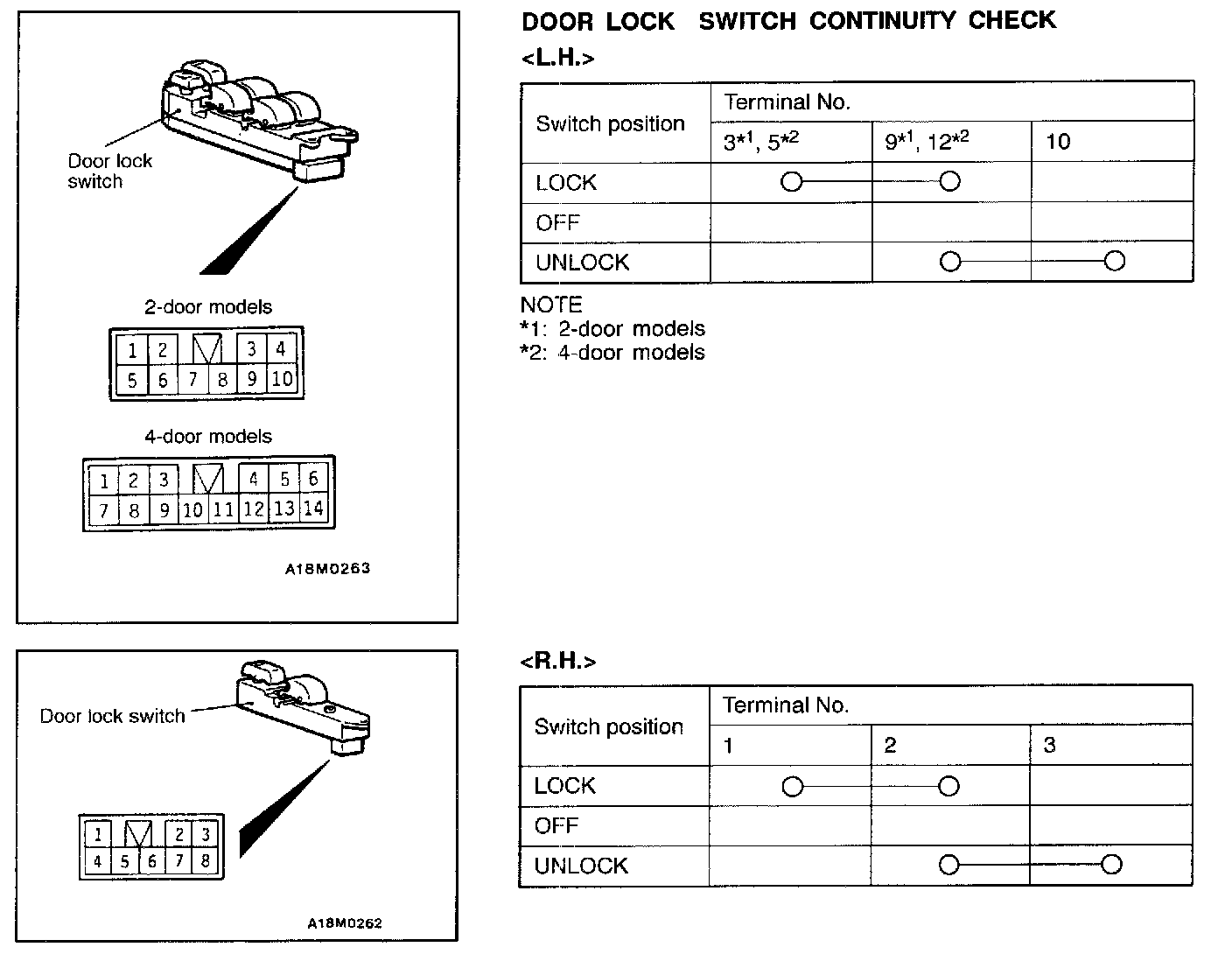

Door Lock Switch Continuity Check:
