Grille: Service and Repair

RADIATOR GRILLE

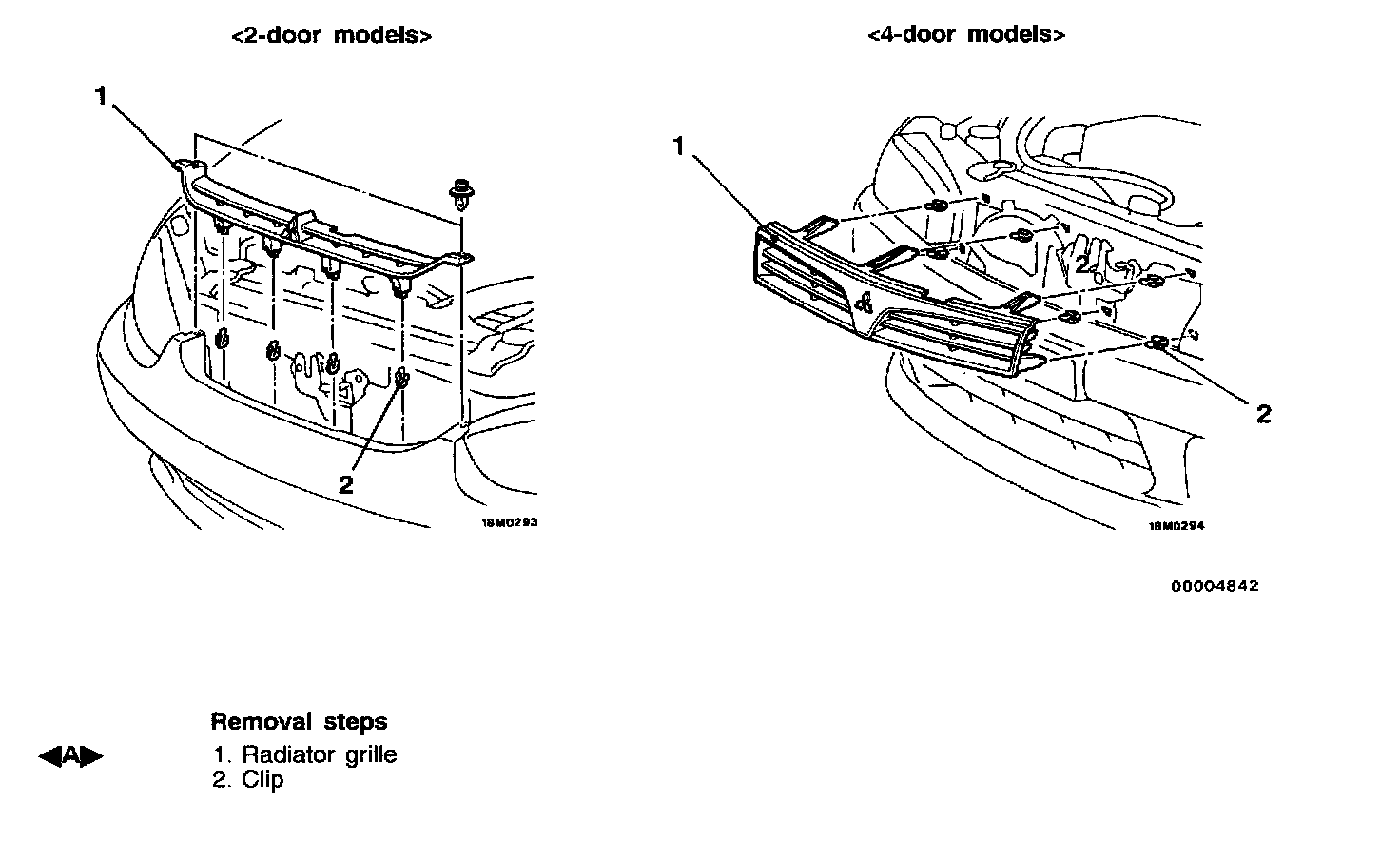

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT




RADIATOR GRILLE REMOVAL

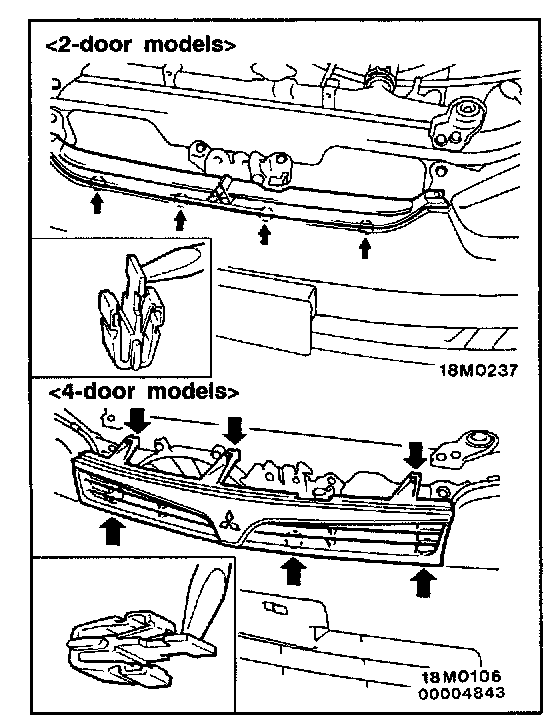

Remove the radiator grille by pushing the tab of the radiator grille clips in the direction of the arrows with a flat-tipped screwdriver, while lightly pulling the radiator grille toward you.
