Home >> Mitsubishi >> 2000 >> Mirage Sedan LS L4-1834cc 1.8L SOHC MFI >> Repair and Diagnosis >> Body and Frame >> Bumper >> Front Bumper >> Service and Repair >> Removal and Installation

Removal and Installation

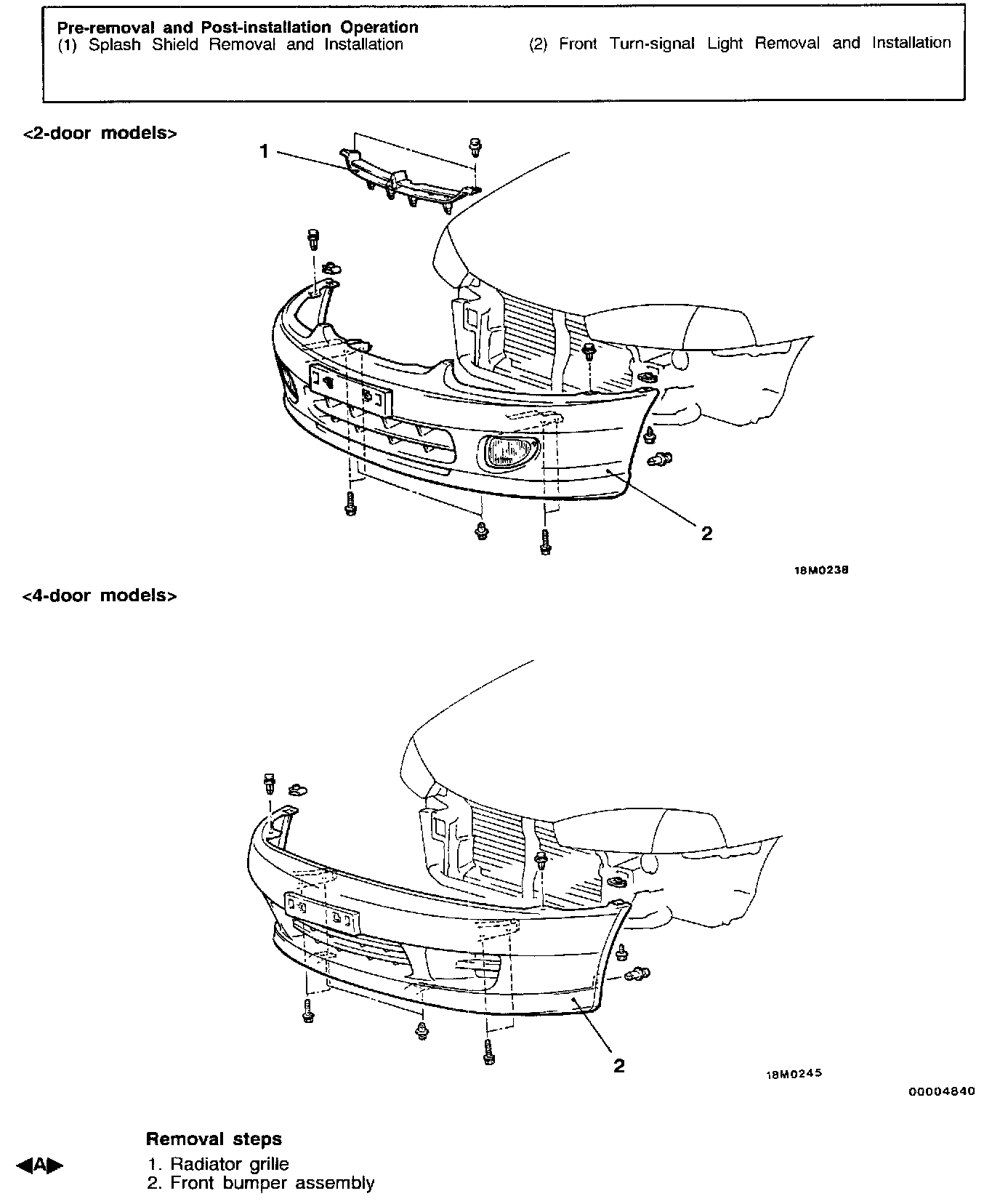

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT

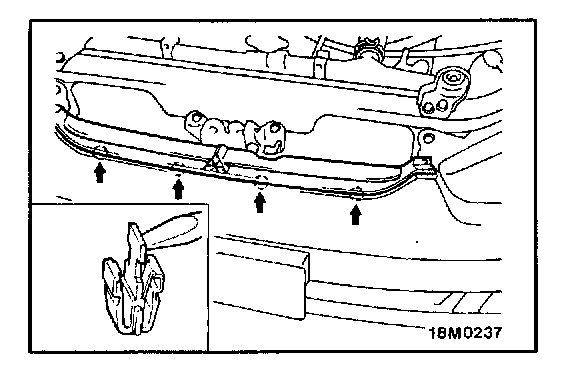

RADIATOR GRILLE REMOVAL <2-door models>
Remove the radiator grille by pushing the tab of the radiator grille clips in the direction of the arrows with a flat-tipped screwdriver, while lightly pulling the radiator grille towards you.
