Disassembly and Assembly

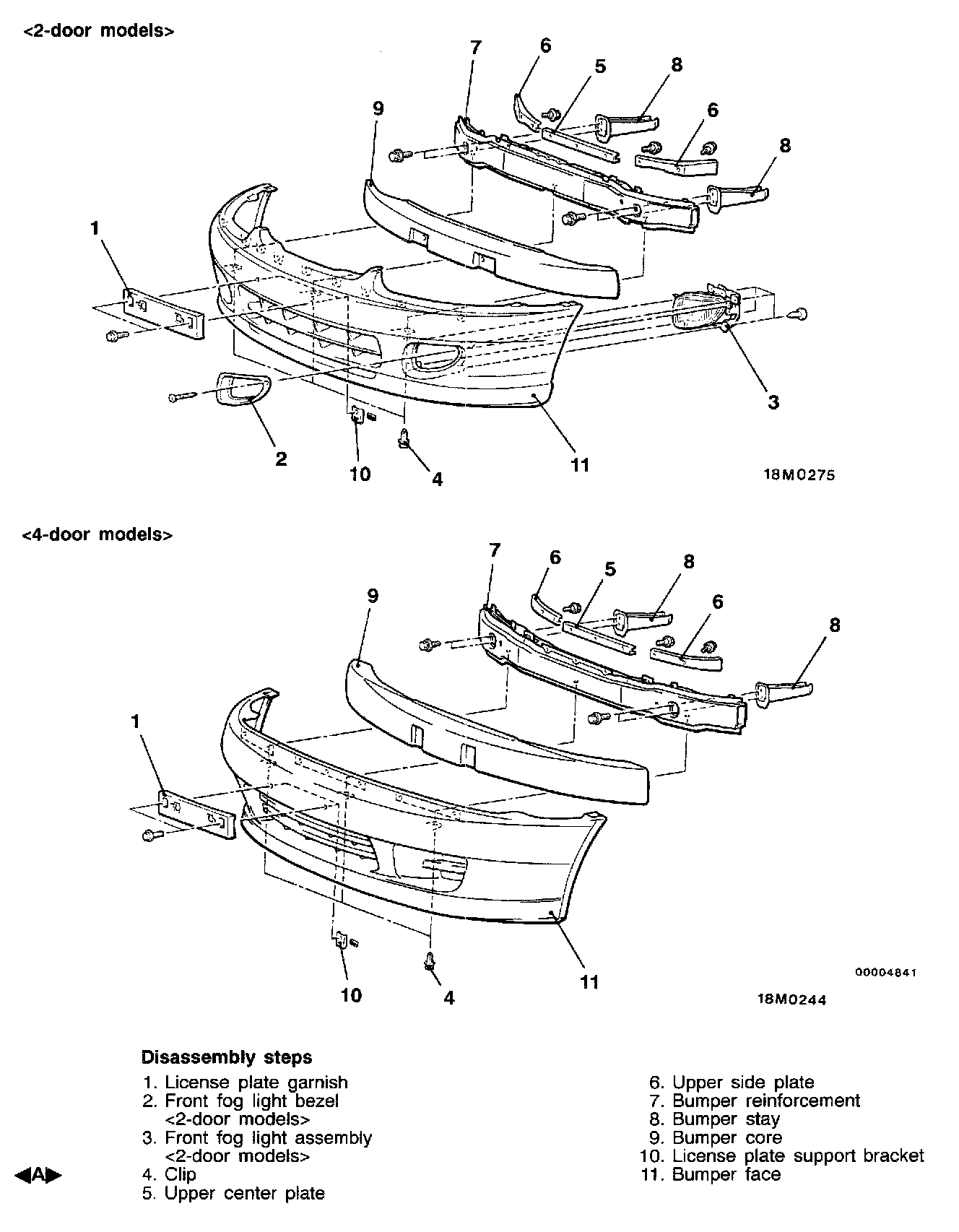

DISASSEMBLY AND REASSEMBLY




DISASSEMBLY SERVICE POINT

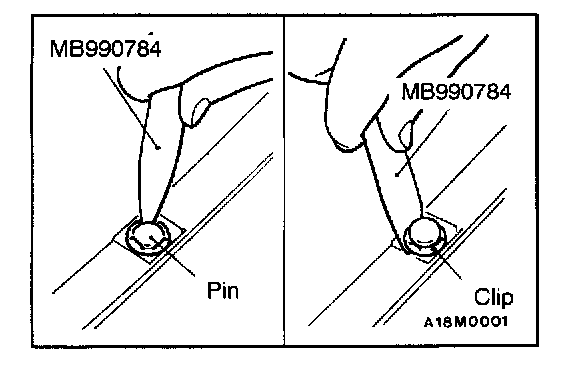

CLIP REMOVAL
1. Use the special tool to pull up the center pin in the clip.
2. Remove the clip.
