Removal and Replacement

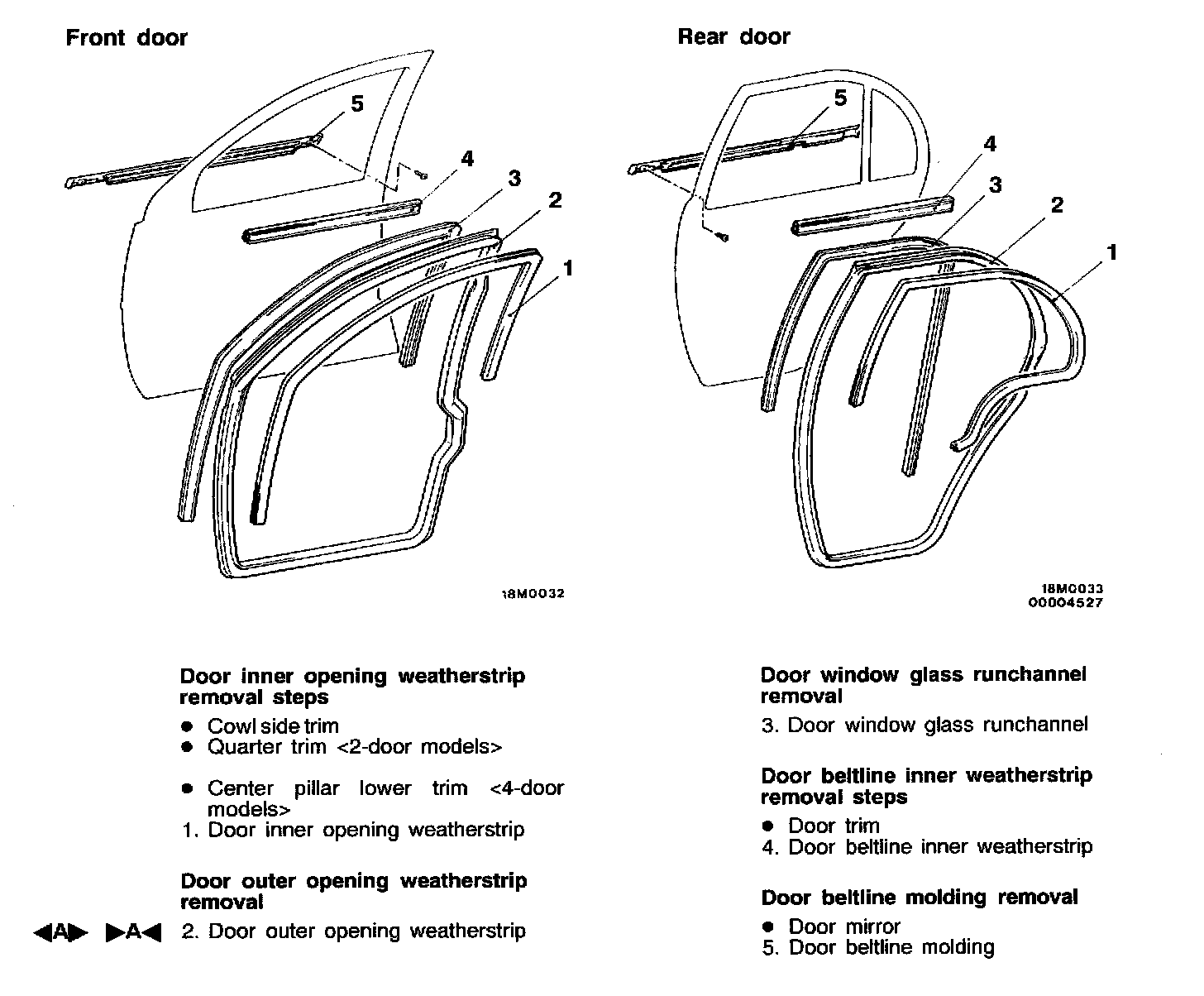

Window Glass Runchannel and Door Opening Weatherstrip:

REMOVAL AND INSTALLATION




REMOVAL SERVICE POINT

[A] DOOR OUTER OPENING WEATHERSTRIP REMOVAL

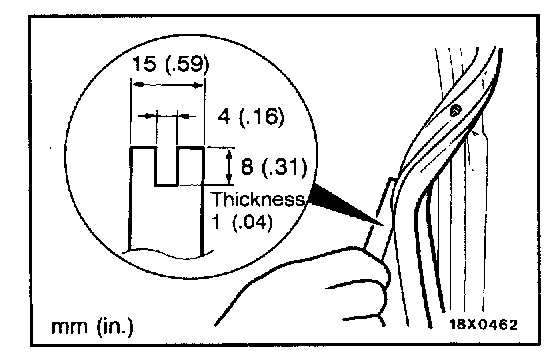

Make a tool as shown in the illustration to remove the door opening weatherstrip.




INSTALLATION SERVICE POINT

]A[ DOOR OUTER OPENING WEATHERSTRIP INSTALLATION

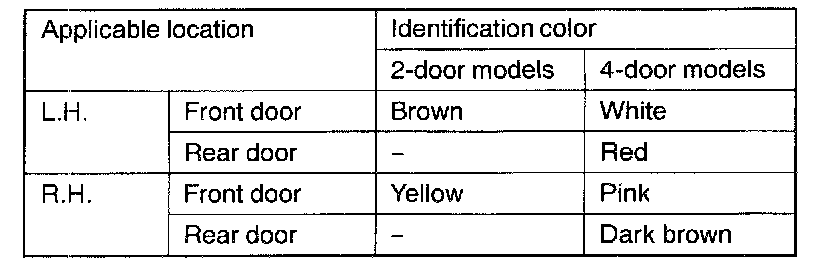

The clip color identifies the left and right weatherstrips, so be sure to use the colors so as to install correctly
