Transfer Drive Gear - Disassembly/Assembly Revision
NO: TSB-01-23-008DATE: April, 2001
MODEL: 1998-2001 Mirage
SUBJECT:
TRANSFER DRIVE GEAR DISASSEMBLY/REASSEMBLY CORRECTIONS - SERVICE MANUAL REVISION
[TSB Revision TSB-01-23-008]
PURPOSE

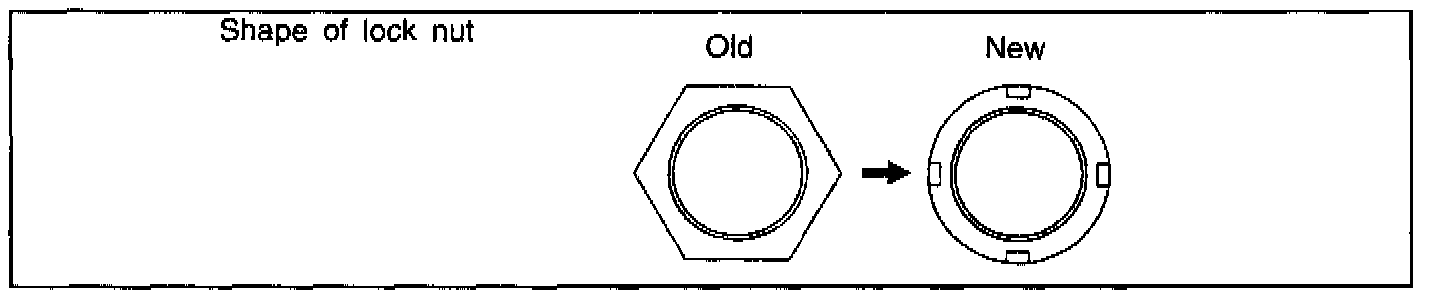

Beginning with January 1998 transaxle production, the shape of the transfer drive gear lock nut was changed. The new style transfer drive gear/nut assembly cannot be disassembled. This bulletin notes this change in the 1998 manual, and deletes transfer drive gear disassembly/reassembly procedures and related items and tools from the 1999 - 2001 manuals.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.
AFFECTED VEHICLES
1998 - 2001 Mirage equipped with automatic transaxle
AFFECTED SERVICE MANUALS
1998 Mirage Service Manual, Volume 1, Page 23B-65
1999 Mirage Service Manual, Volume 1, Pages 23B-11, 12, 13, 14, 64, 65
2000 Mirage Service Manual, Volume 1, Page 23B-11
2001 Mirage Service Manual, Volume 1, Pages 23B-10, 65, 66
SERVICE MANUAL REVISIONS
1998 Mirage Service Manual, Volume 1, Page 23B-65

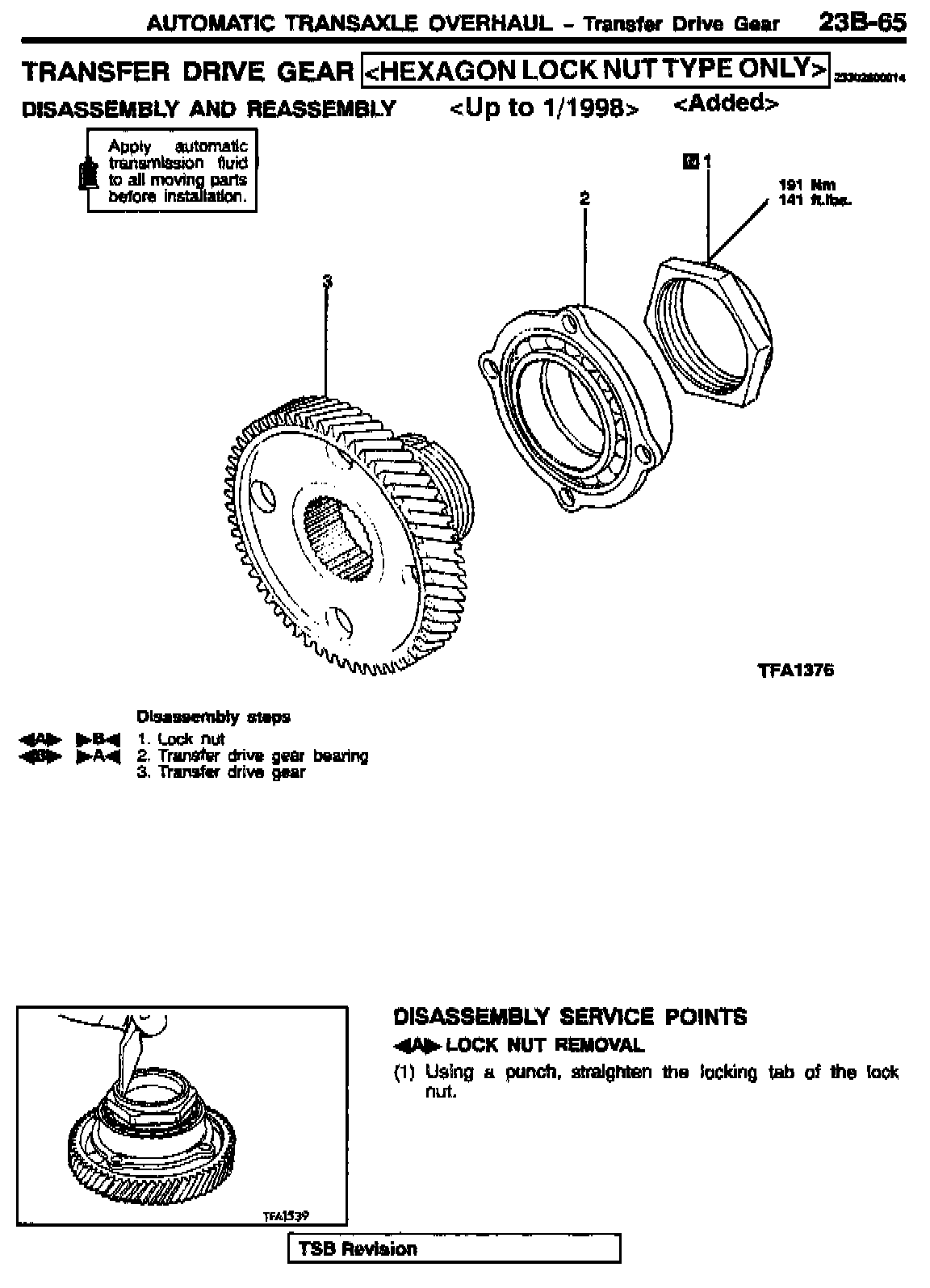

Revise the page to indicate the date of production change.
1999 & 2000 Mirage Service Manuals, Volume 1, Page 23B-11
2001 Mirage Service Manual, Volume 1, Page 23B-10

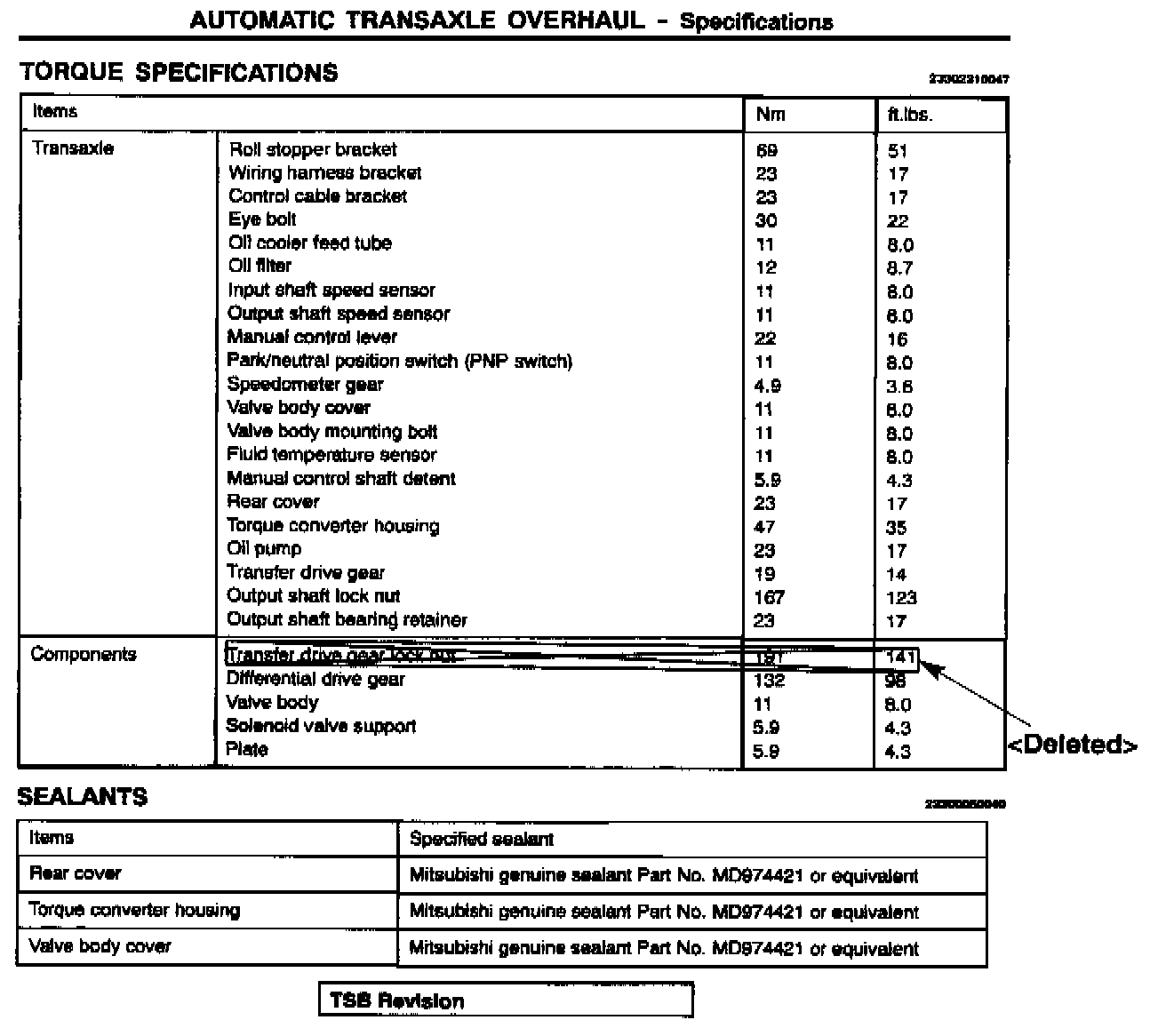

Delete the transfer drive gear lock nut torque specification as shown.
1999 Mirage Service Manual, Volume 1, Page 23B-12

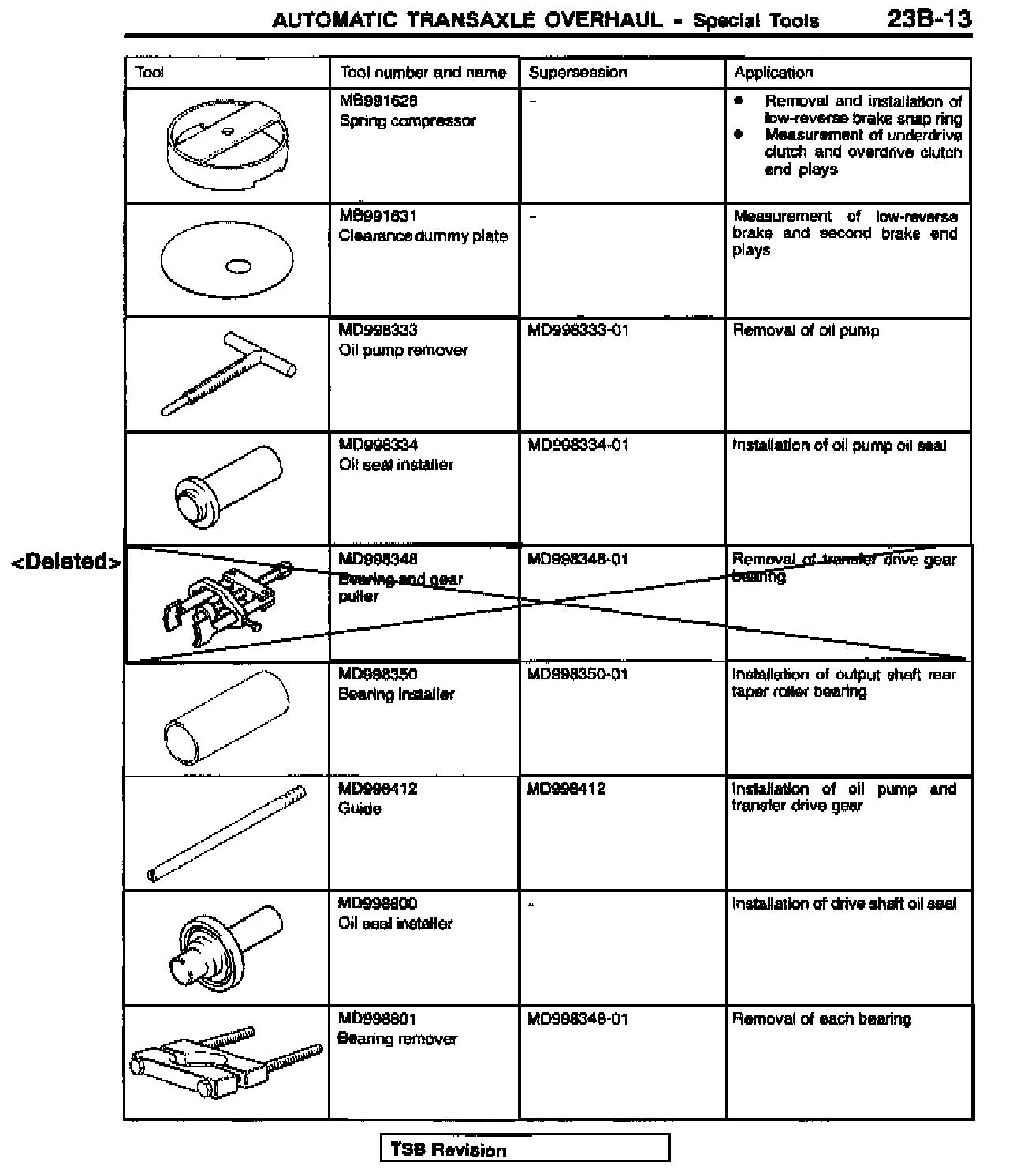

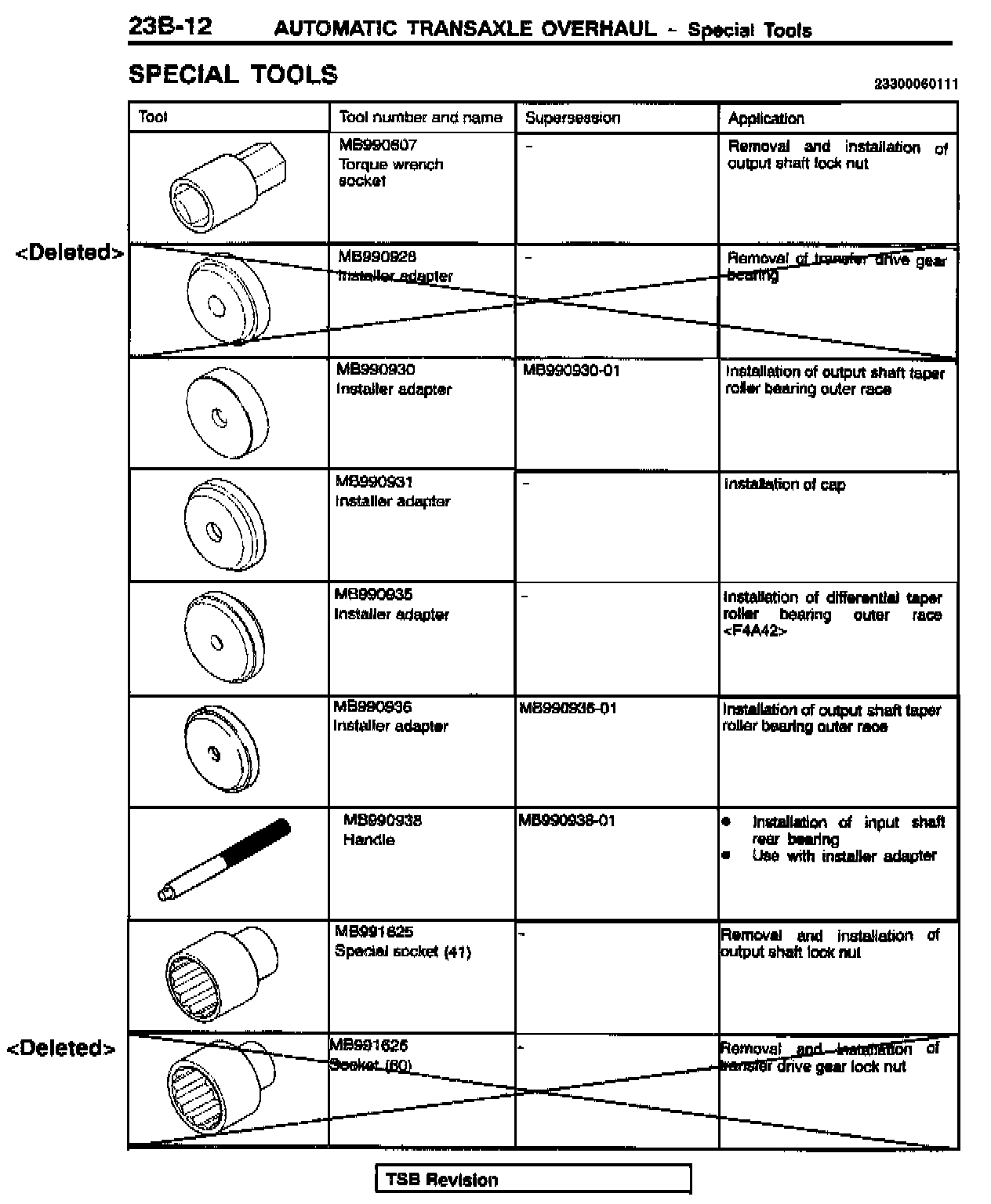

Delete the transfer drive gear lock nut related special tool as shown.
1999 Mirage Service Manual, Volume 1, Page 23B-13

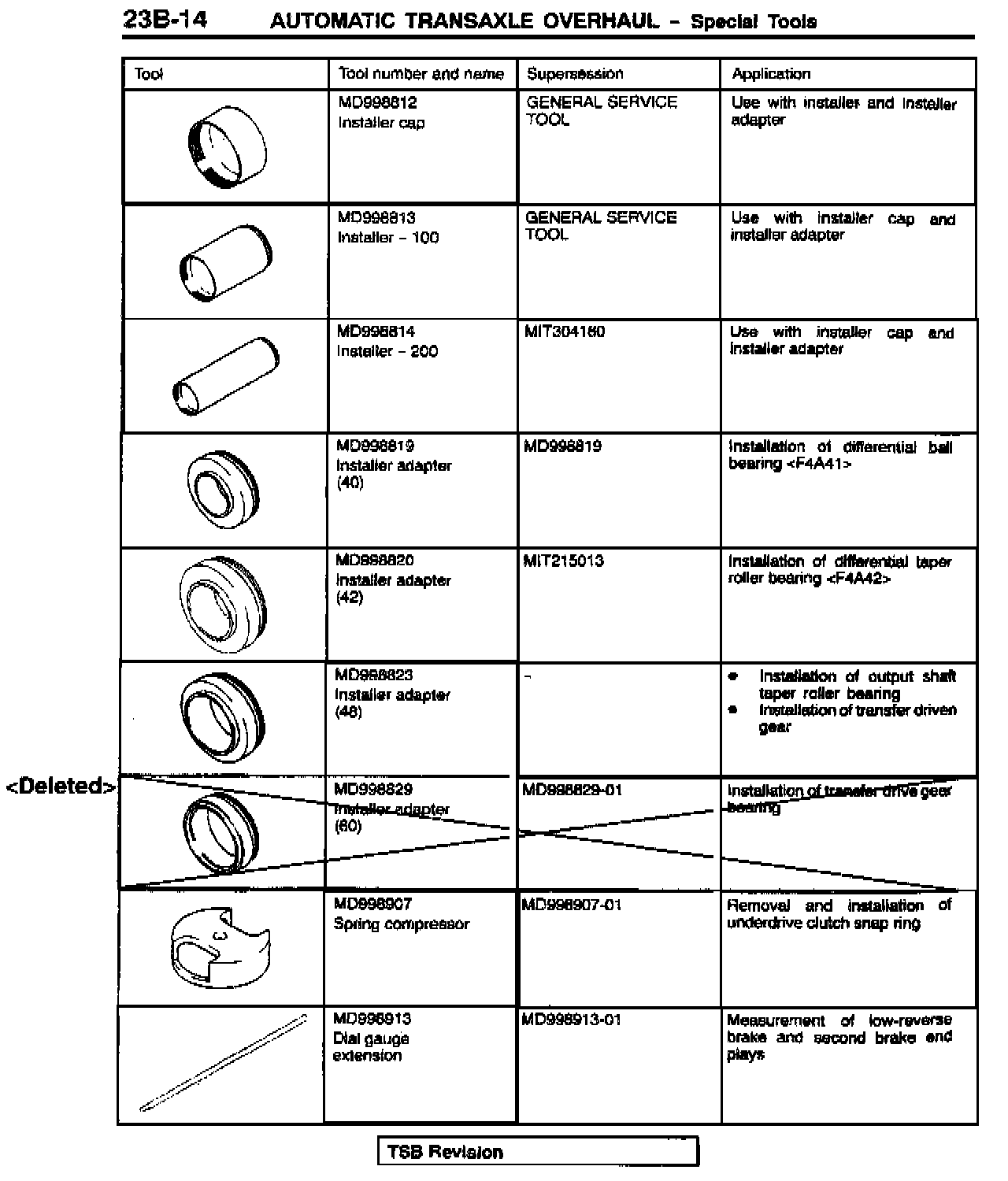

Delete the transfer drive gear lock nut related special tool as shown.
1999 Mirage Service Manual, Volume 1, Page 23B-14
Delete the transfer drive gear lock nut related special tool as shown.
2000 Mirage Service Manual, Volume 1, Page 23B-64
2001 Mirage Service Manual, Volume 1, Page 23B-65

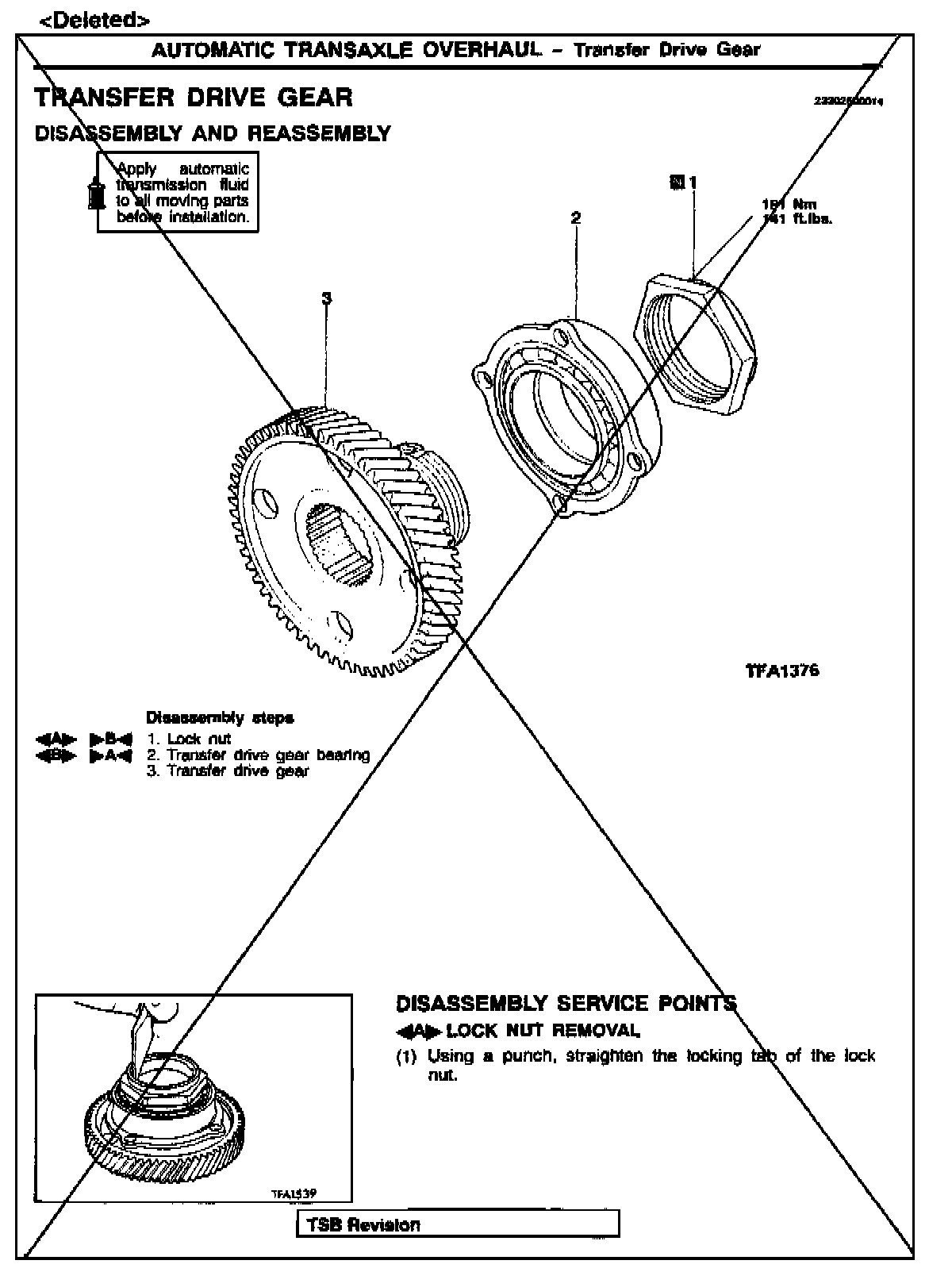

Delete the transfer drive gear disassembly and reassembly information as shown.
2000 Mirage Service Manual, Volume 1, Page 23B-65
2001 Mirage Service Manual, Volume 1, Page 23B-66

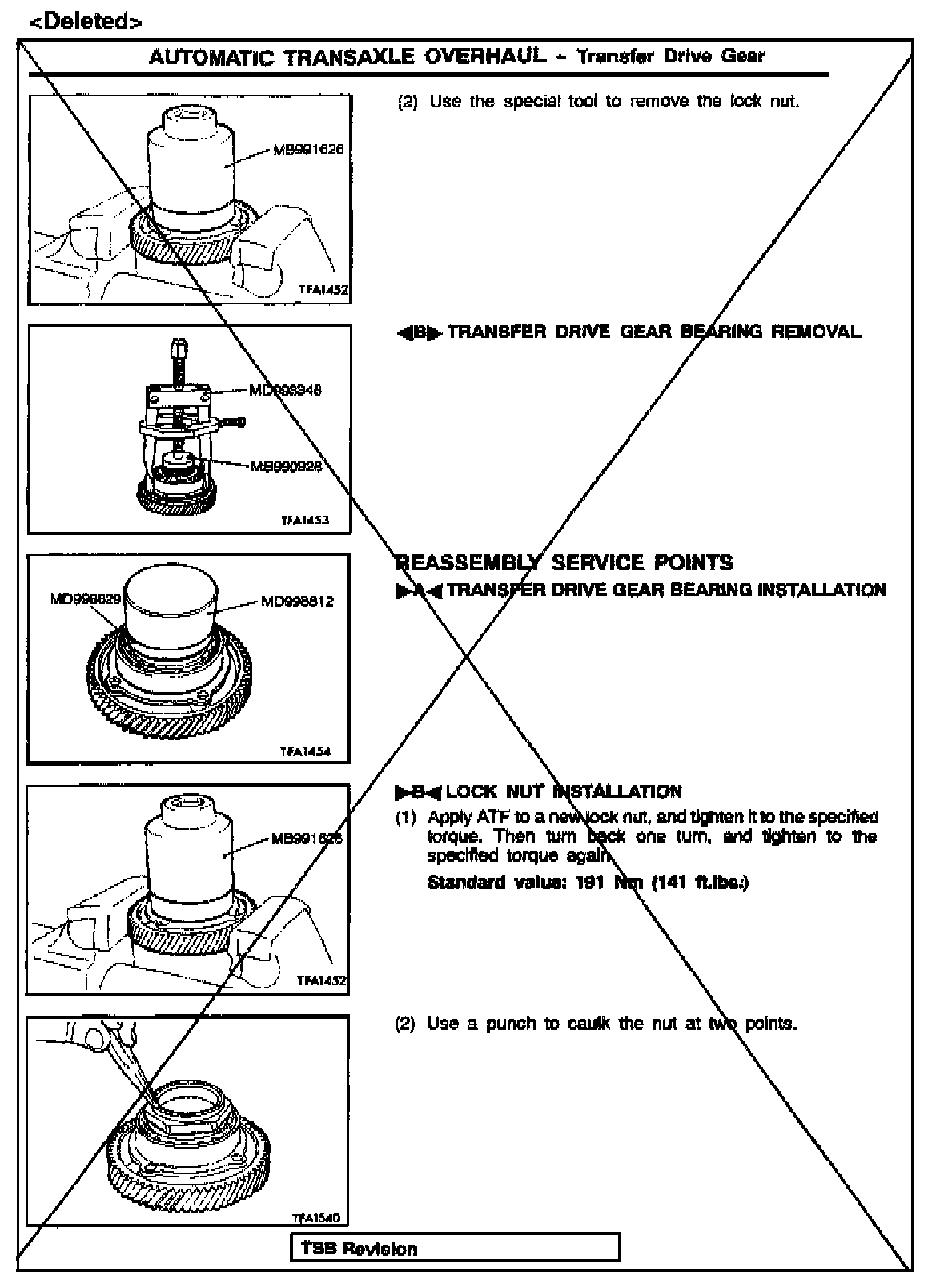

Delete the transfer drive gear disassembly and reassembly information as shown.
