Transaxle Model Number & One-Way-Clutch Revisions

No: TSB-00-23-006

DATE: August, 2000

MODEL: 2000 Mirage

SUBJECT:
CORRECTED TRANSAXLE MODEL NUMBER AND
REVISED ONE-WAY CLUTCH INFORMATION
SERVICE MANUAL REVISION

[TSB Revision TSB-00-23-006]

PURPOSE
This bulletin Contains the following information concerning the 2000 model year Mirage automatic transaxle:

^ The transaxle model numbers are changed.

^ The sentence in GENERAL INFORMATION, step 4, "The one-way clutch has been removed." is deleted. The automatic transaxle in the 2000 Mirage DOES have the one-way clutch.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.

AFFECTED VEHICLES
2000 Mirage

AFFECTED SERVICE MANUAL
2000 Mirage Service Manual, Volume 1, Page 23A-3

PARTS INFORMATION





2000 Mirage Service Manual, Volume 1, Page 23A-3

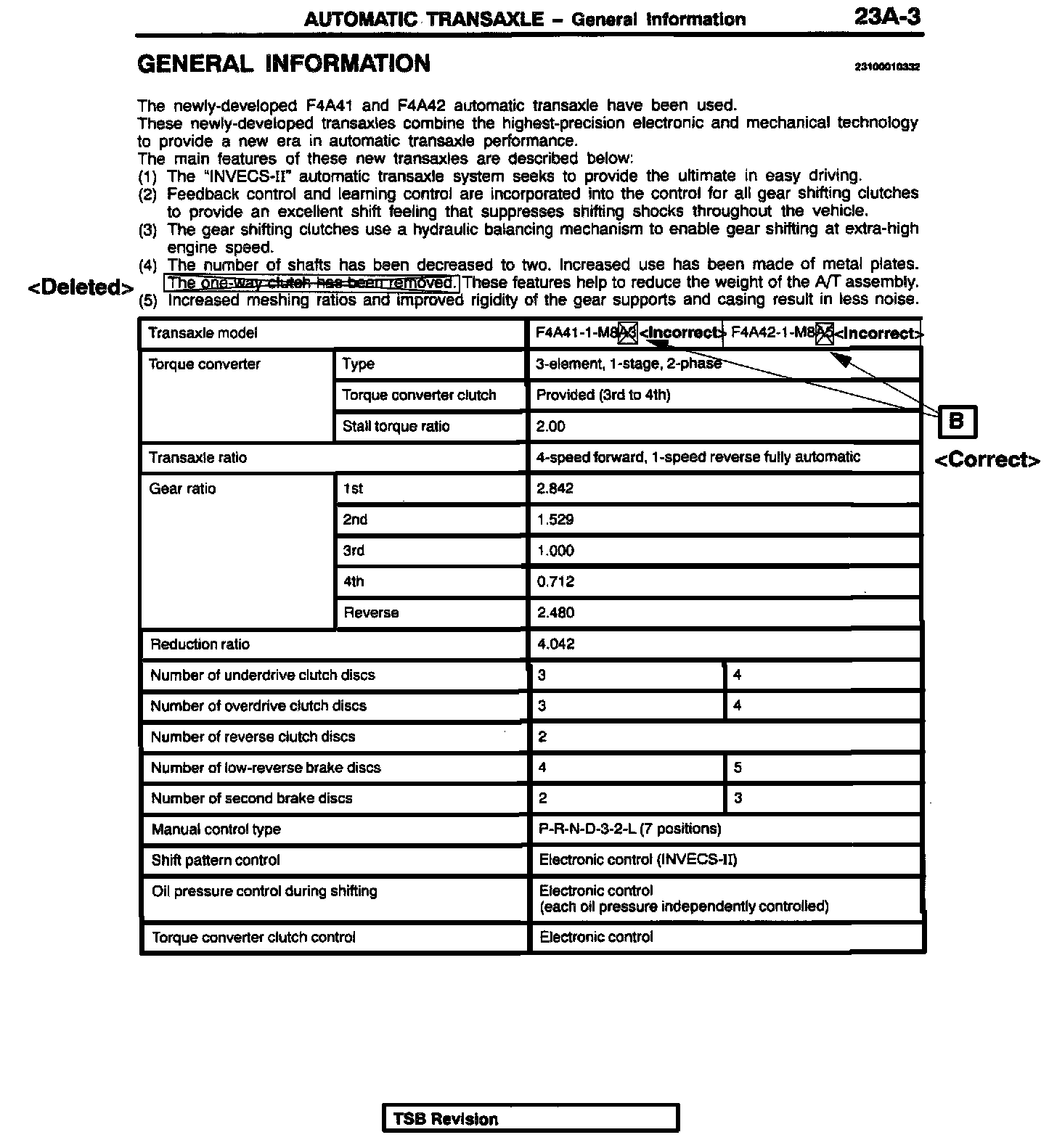

Delete the indicated sentence and change the transaxle model numbers as shown.
