Air Bag System - SRS Fuse Numbering, Manual Correction
No: TSB-06-54-004DATE: June, 2006
MODEL: See below
SUBJECT:
SRS CIRCUIT DIAGRAM - SERVICE MANUAL REVISION
PURPOSE
The SRS system fuse numbers are incorrectly identified in the circuit diagram and in troubleshooting for codes 41 and 42 in the following service manuals.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.
AFFECTED VEHICLES
1997-2002 Mirage
AFFECTED SERVICE MANUALS
1997-2002 Mirage Service Manual CD-ROM
2000 Mirage Service Manual Volume 2, Page 90-104, 52B-10 and 52B-22
2001 Mirage Service Manual Volume 2, Page 90-120, 52B-9 and 52B-22
2002 Mirage Service Manual Volume 2, Page 90-110, 52B-10 and 52B-23

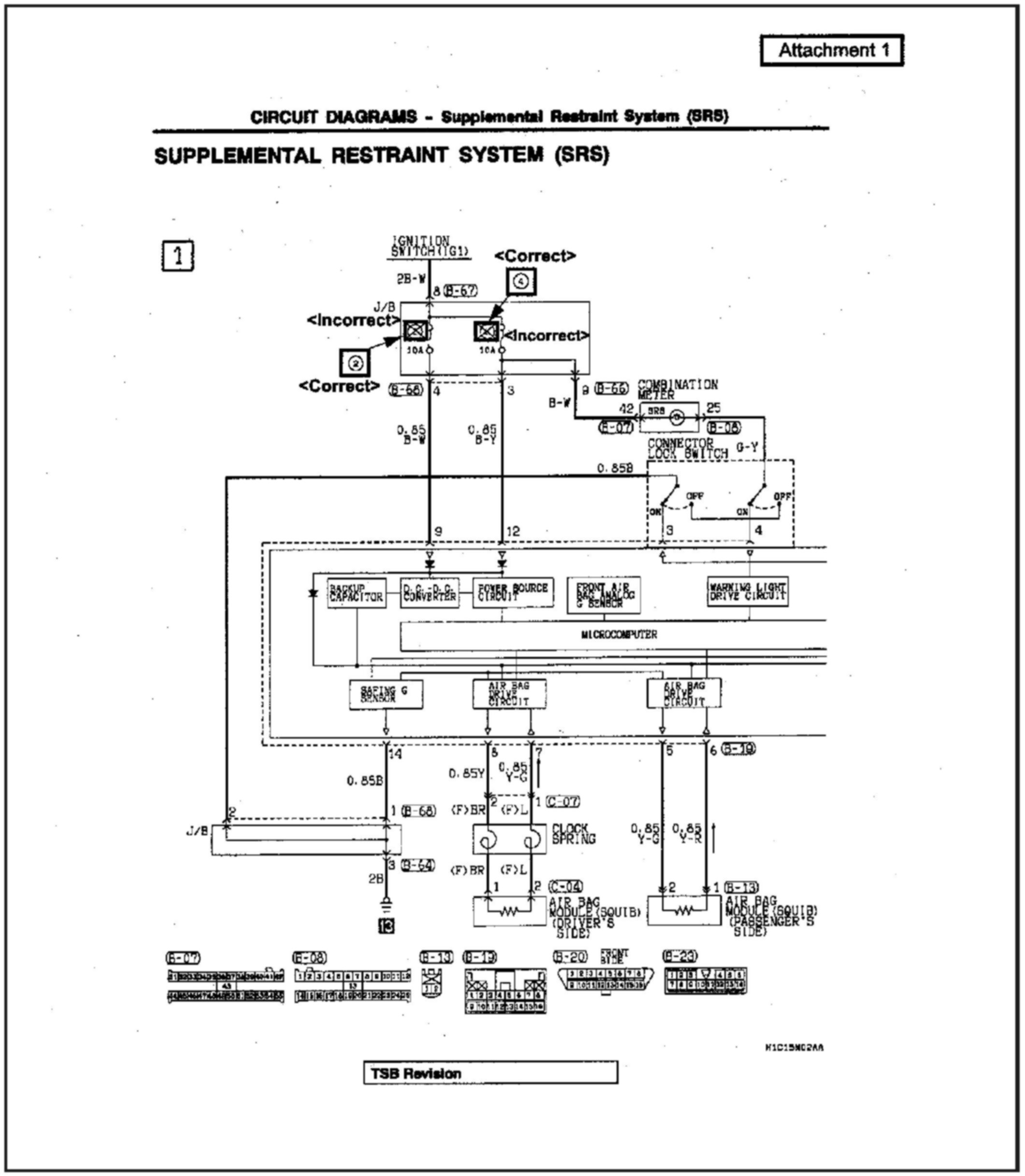

2000 Mirage Service Manual Volume 2, Page 90-104
2001 Mirage Service Manual Volume 2, Page 90-120
2002 Mirage Service Manual Volume 2, Page 90-110

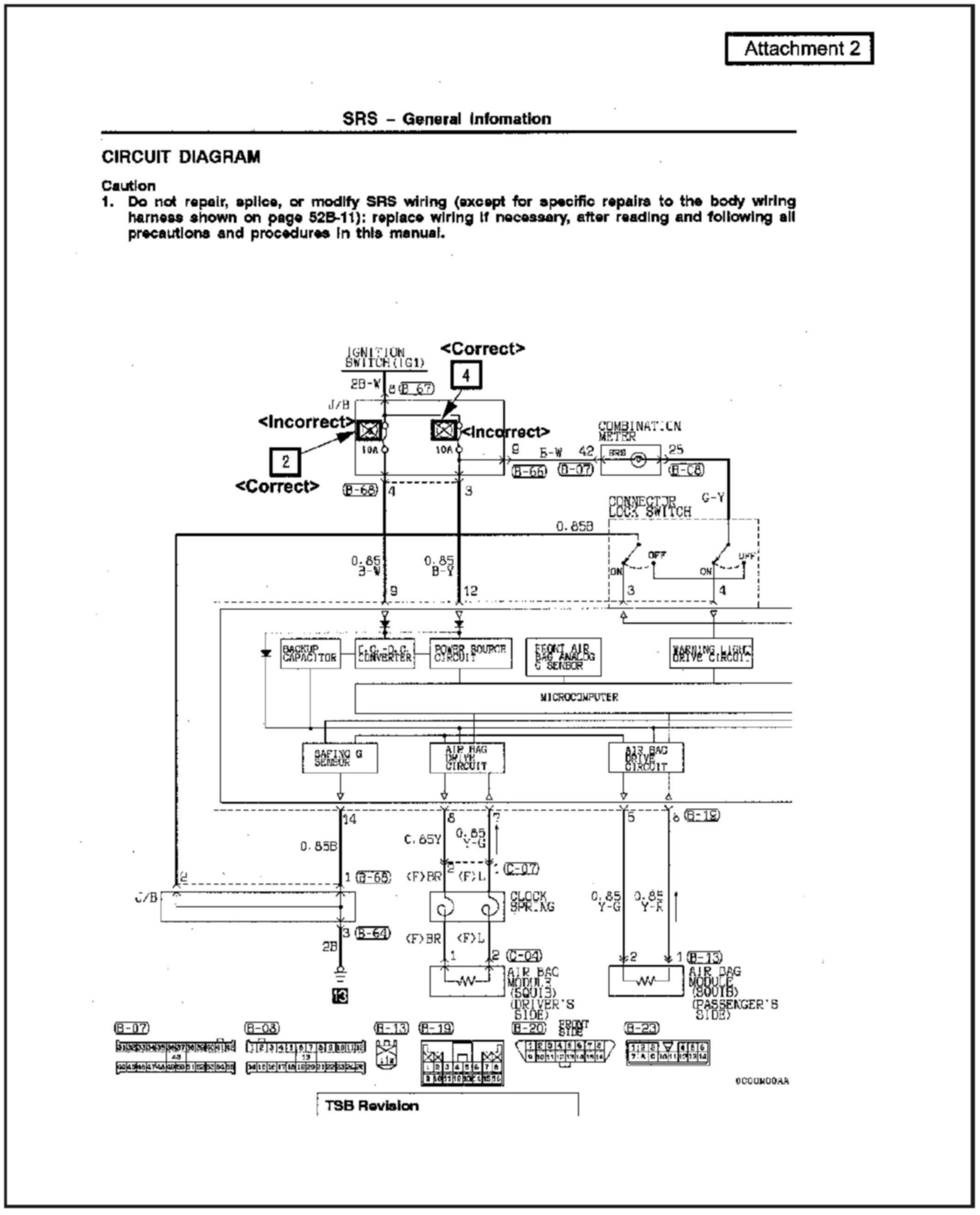

2000 Mirage Service Manual Volume 2, Page 52B-10
2001 Mirage Service Manual Volume 2, Page 52B-9
2002 Mirage Service Manual Volume 2, Page 52B-10

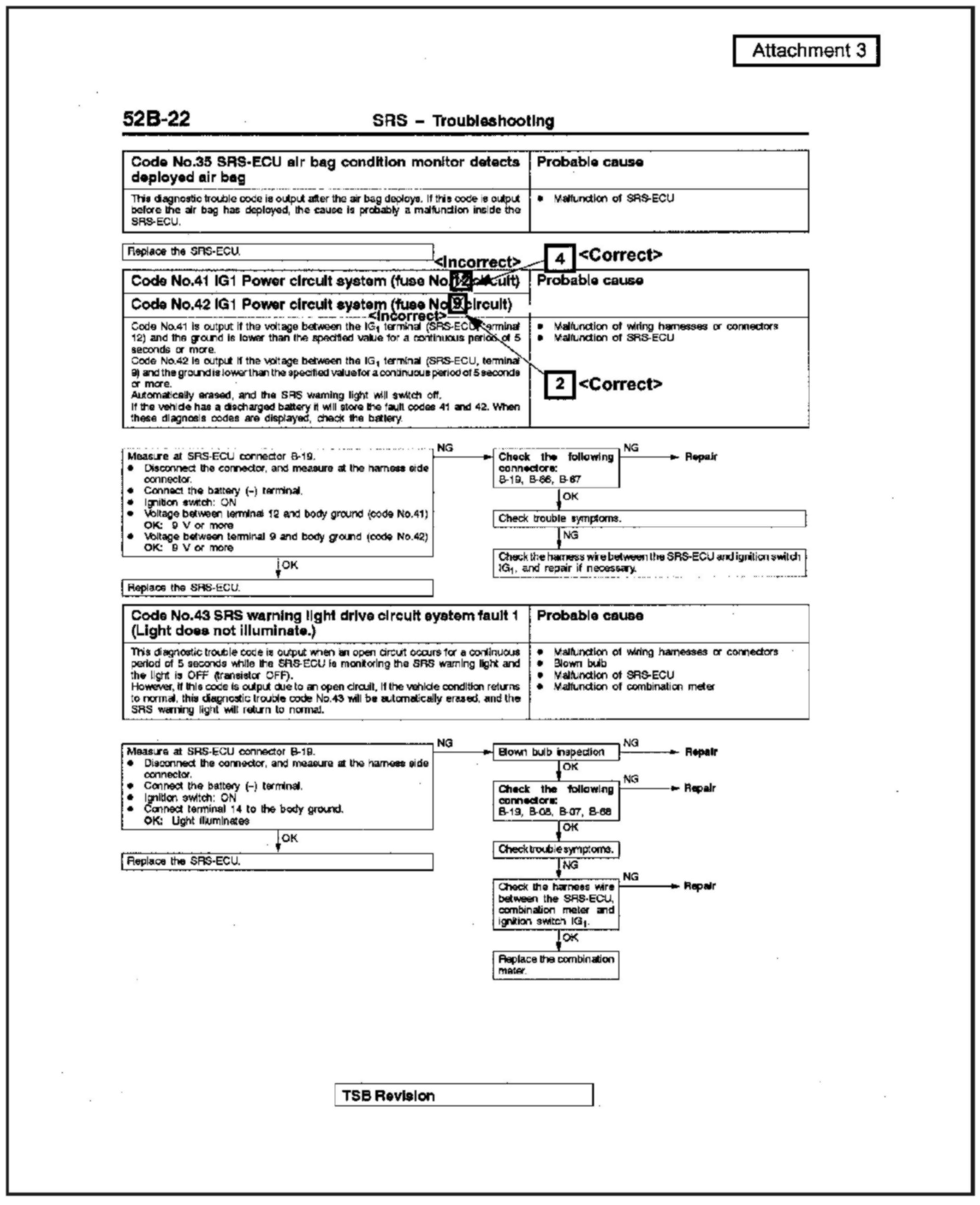

2000-2001 Mirage Service Manual Volume 2, Page 52B-22
2002 Mirage Service Manual Volume 2, Page 52B-23
