Symptom Related Diagnostic Procedures
TROUBLESHOOTING HINTS1. Charging warning light does not go on when the ignition switch is turned to "ON", before the engine starts.
- Check the bulb.
2. Charging warning light fails to go off once the engine starts.
- Check the IC voltage regulator (located inside the generator).
3. Discharged or overcharged battery.
- Check the IC voltage regulator (located in side the generator).
4. The charging warning light illuminates dimly.
- Check the diode (within the combination meter) for a short-circuit.

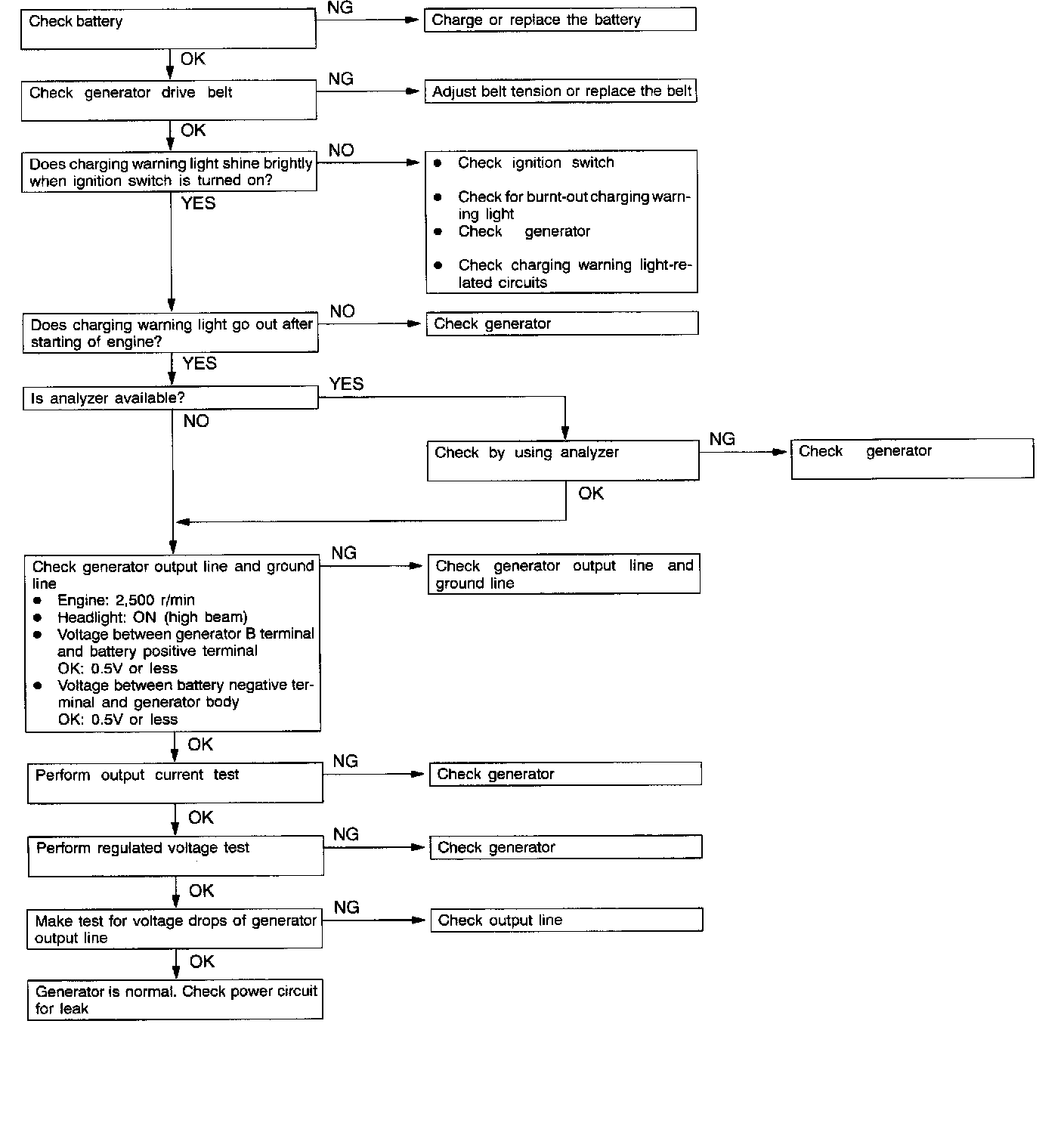

TROUBLESHOOTING GUIDE
The charging system Troubleshooting guide is shown in the chart.
