Restraints and Safety Systems: Service Precautions

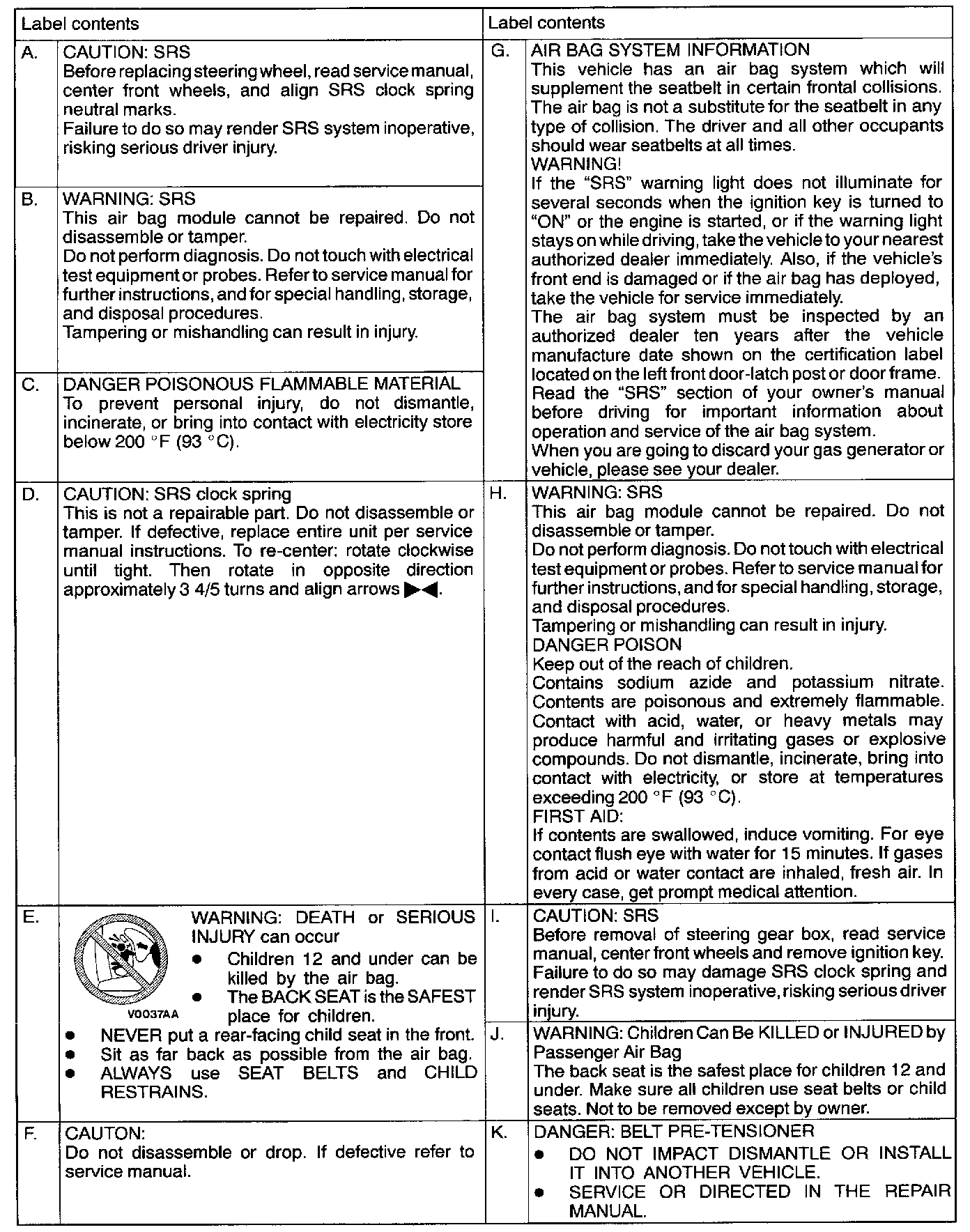

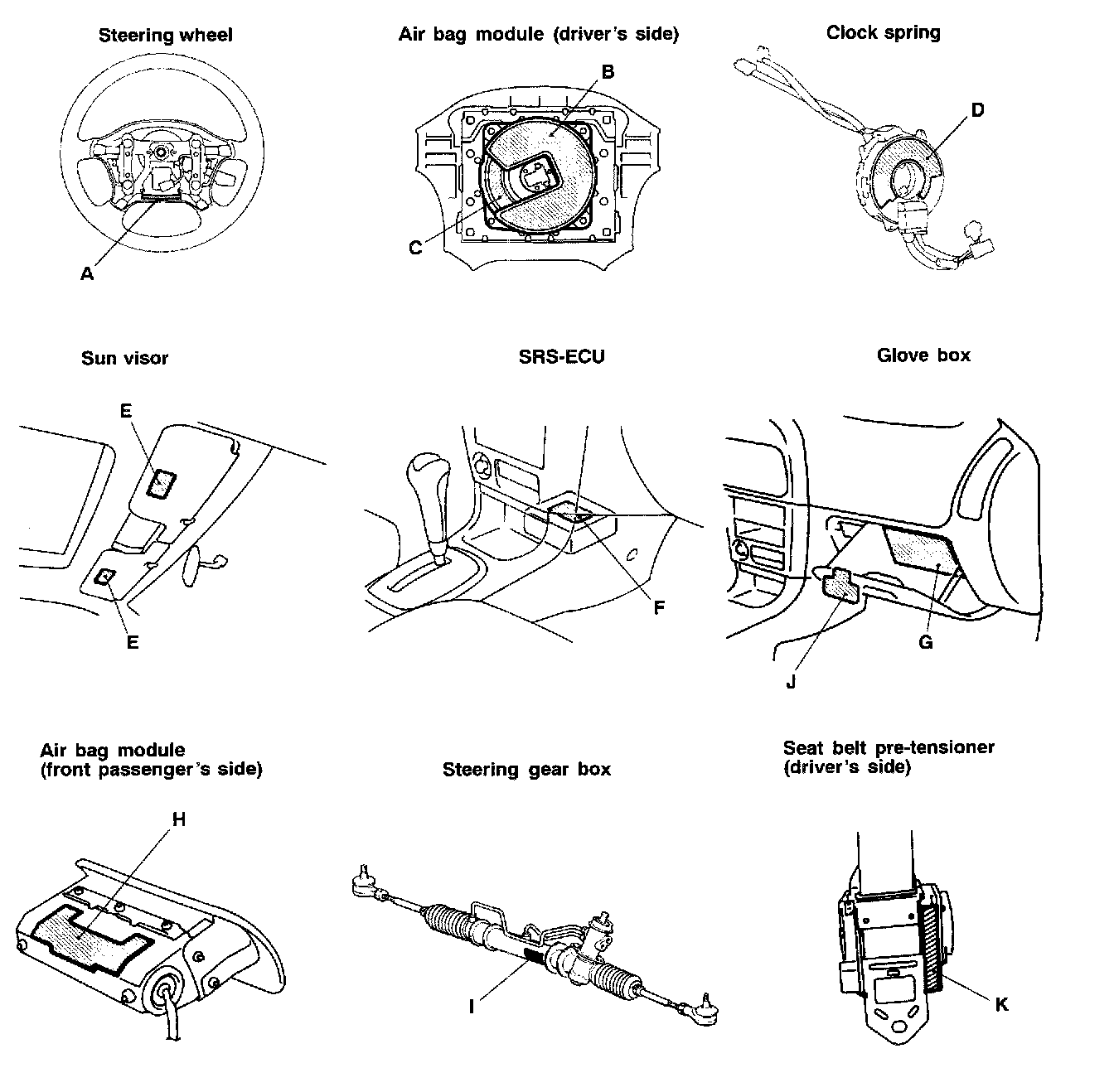

A number of caution labels relating to the SRS and seat belt with pre-tensioner are found in the vehicle, as shown in the following illustration.

Follow label instructions when servicing SRS and seat belt pre-tensioner.

If labels are dirty or damaged, replace them with new ones.
