Electrical Diagrams

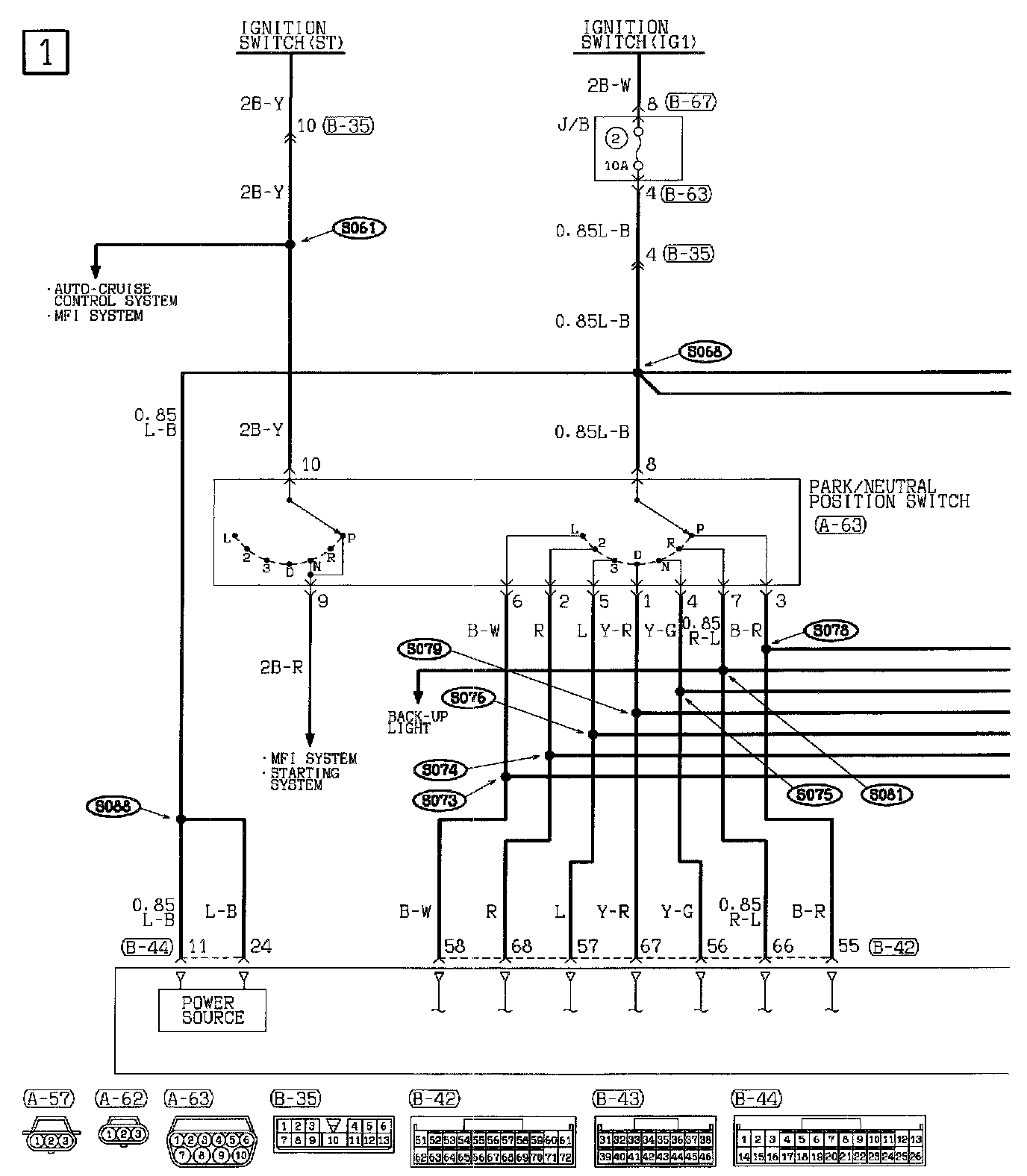

ELC 4-Speed Automatic Transaxle (Part 1 Of 8):

J/B
Park/Neutral Position Switch
- Power Source

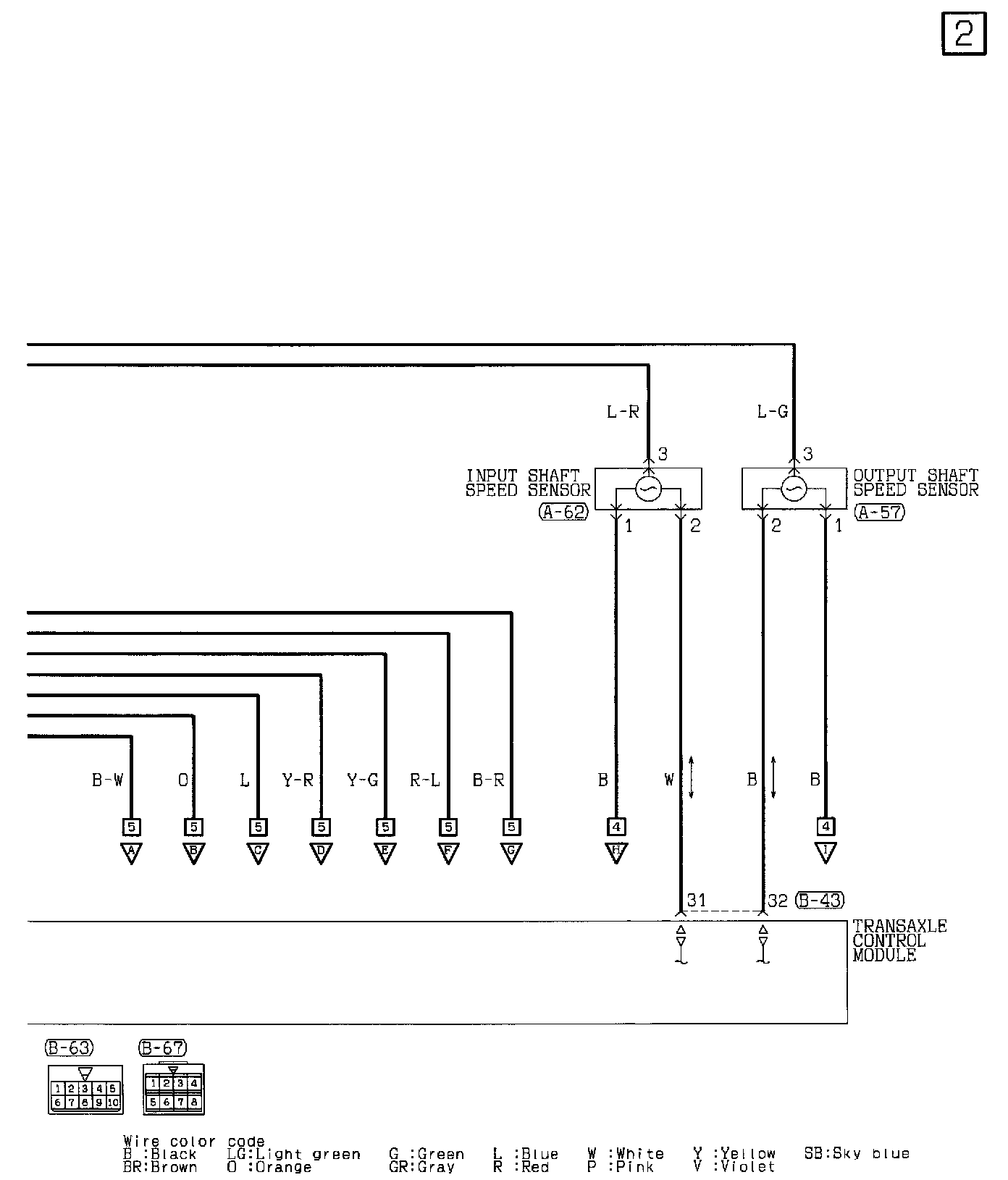

ELC 4-Speed Automatic Transaxle (Part 2 Of 8):

Input and Output Shaft Speed Sensor
Transaxle Control Module

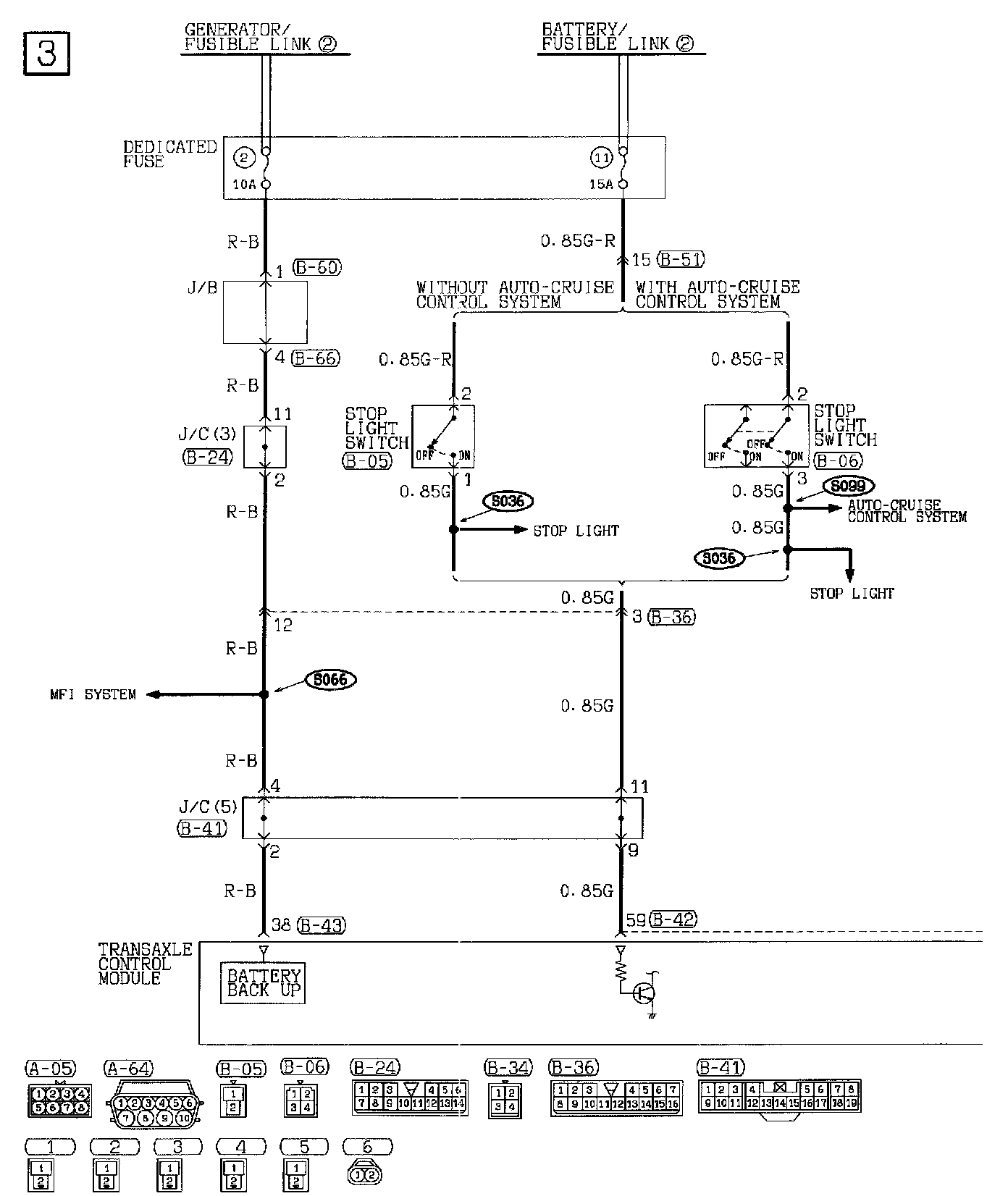

ELC 4-Speed Automatic Transaxle (Part 3 Of 8):

Dedicated Fuse
J/B
J/C
Stop Light Switch
Transaxle Control Module
- Battery Back Up

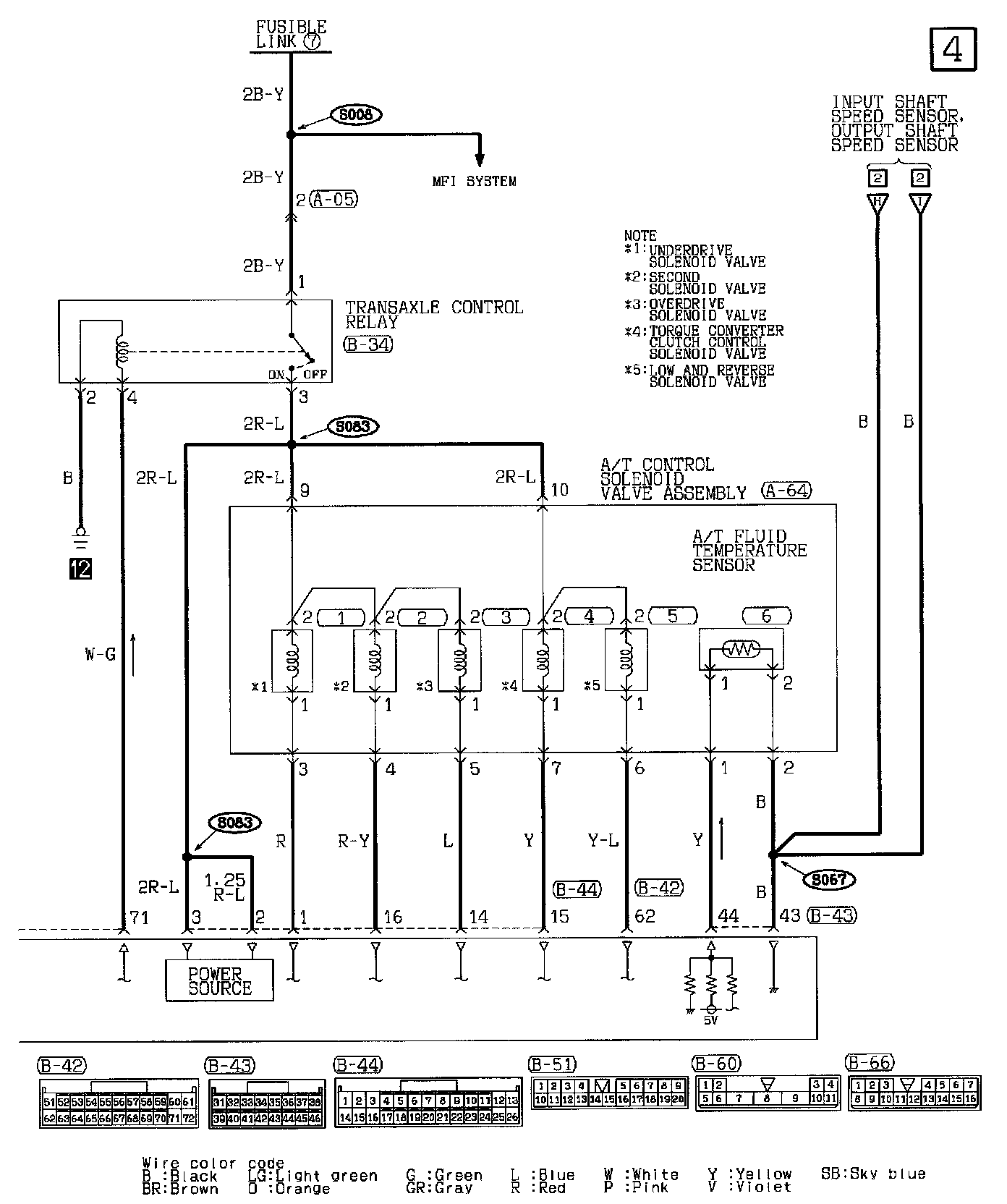

ELC 4-Speed Automatic Transaxle (Part 4 Of 8):

A/T Control Solenoid Valve Assembly
- A/T Fluid Temperature Sensor
Power Source
Transaxle Control Relay

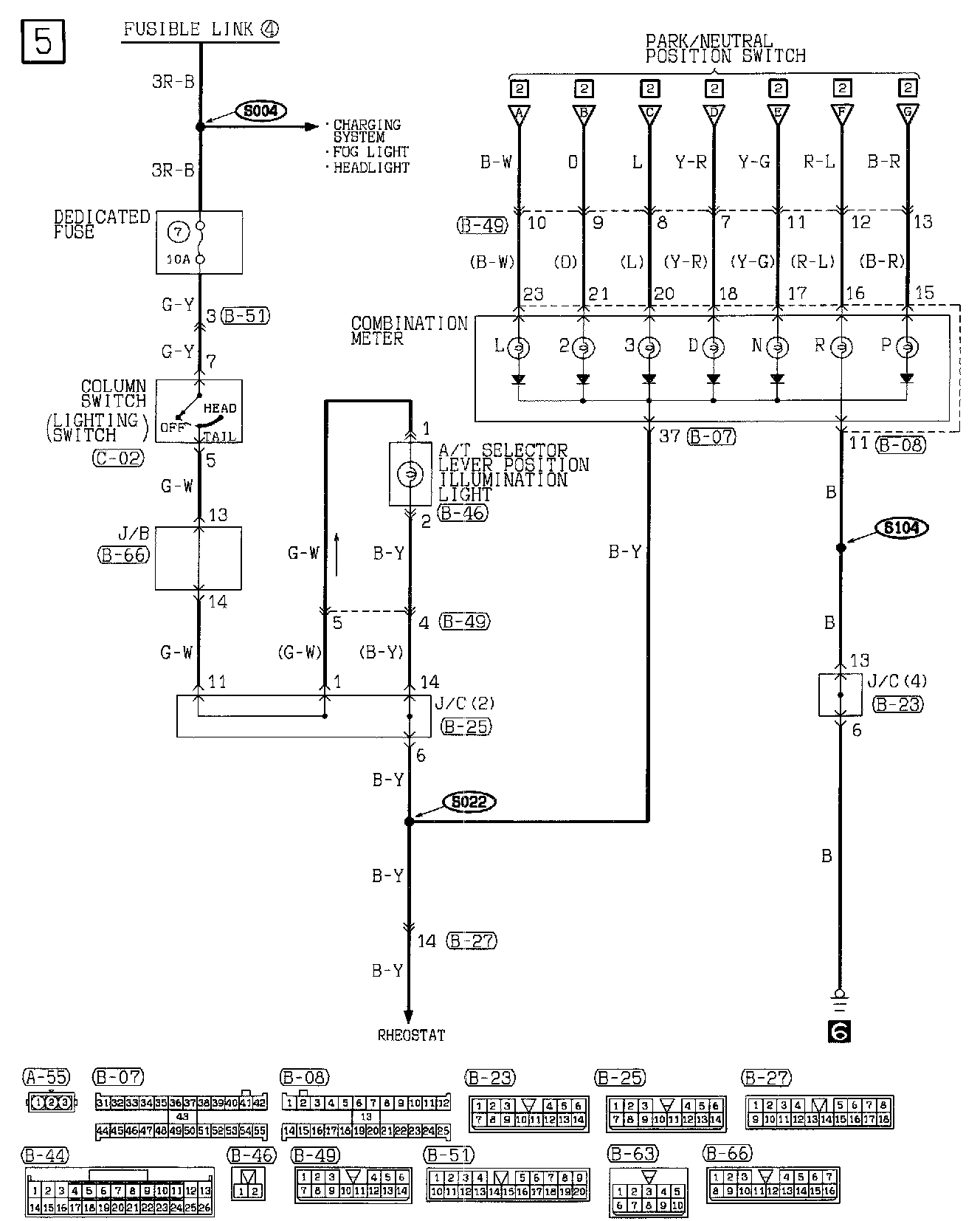

ELC 4-Speed Automatic Transaxle (Part 5 Of 8):

A/T Selector Lever Position Illumination Light
Dedicated Fuse
Column Switch(Lighting Switch)
Combination Meter
J/B
J/C

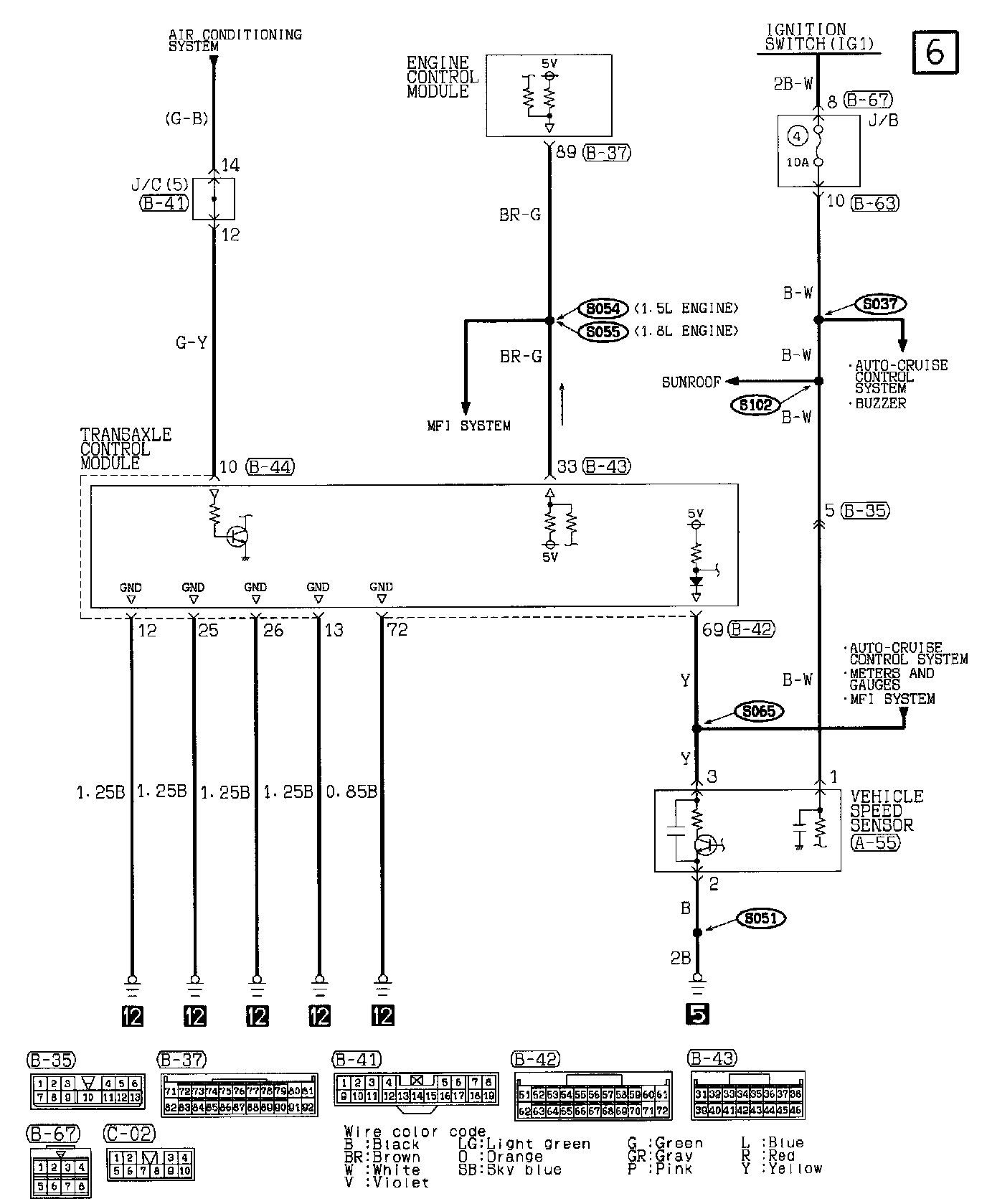

ELC 4-Speed Automatic Transaxle (Part 6 Of 8):

J/B
J/C
Transaxle Control Module
Engine Control Module
Vehicle Speed Sensor

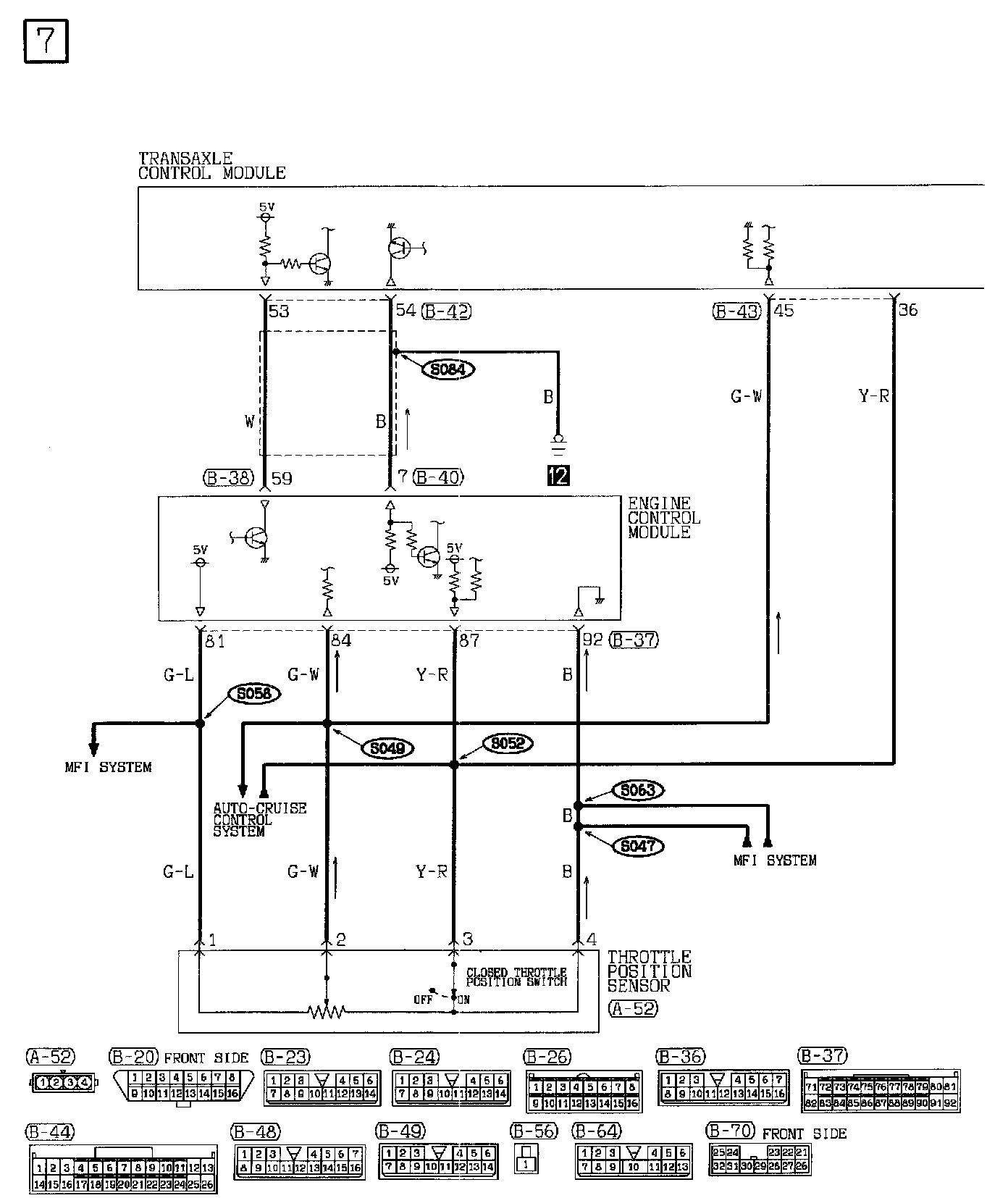

ELC 4-Speed Automatic Transaxle (Part 7 Of 8):

Transaxle Control Module
Engine Control Module
Throttle Position Sensor

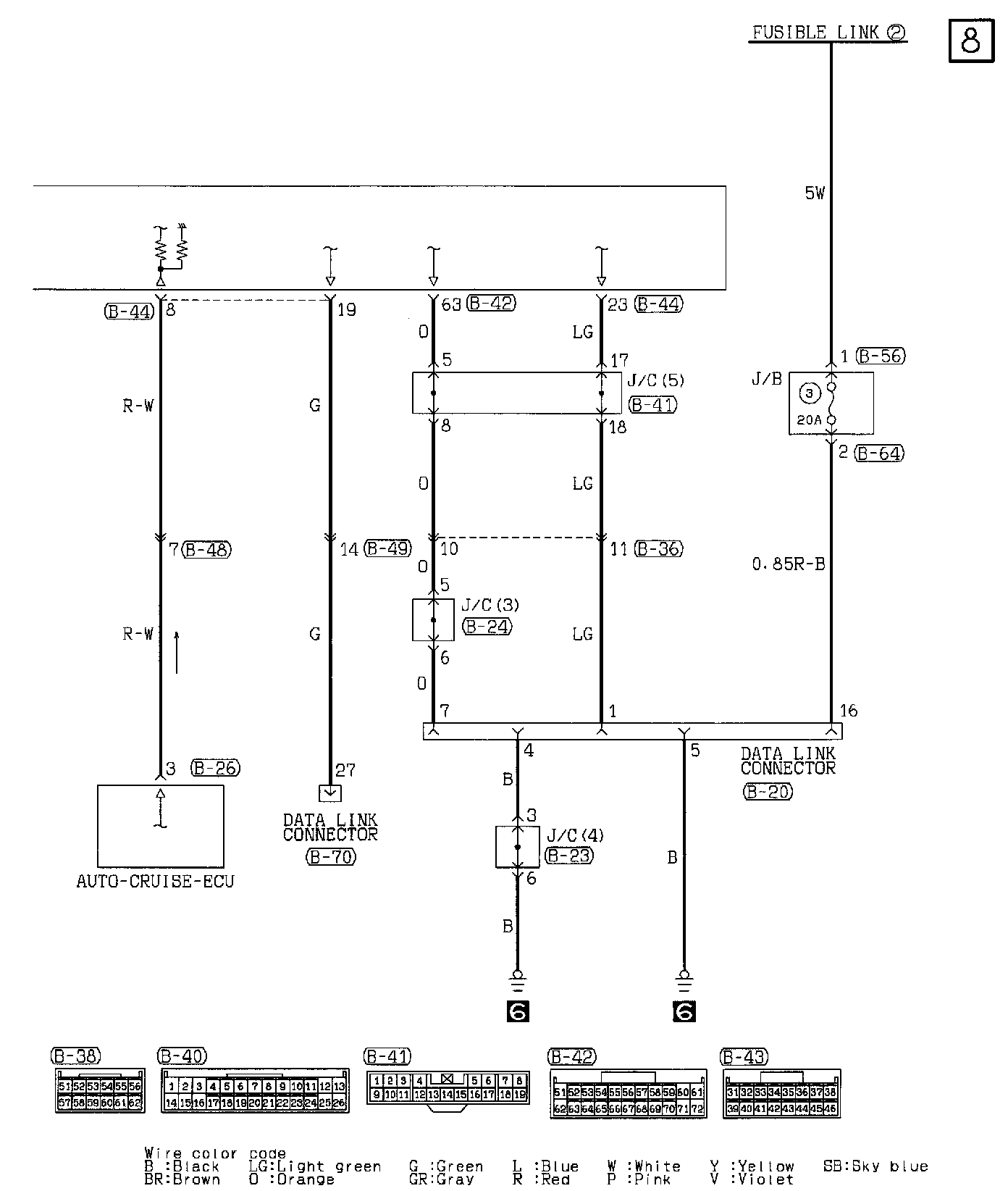

ELC 4-Speed Automatic Transaxle (Part 8 Of 8):

J/C
J/B
Auto-Cruise ECU
Data Link Connector
