Planetary Carrier Assembly

DISASSEMBLY AND ASSEMBLY
ASSEMBLY SERVICE POINTS

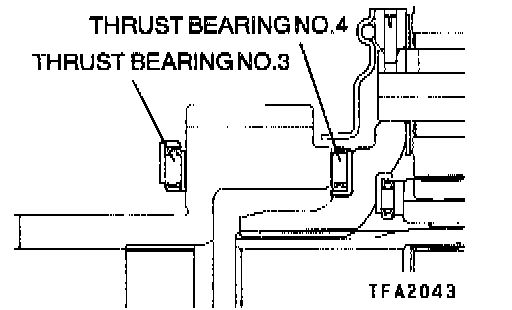

>A< THRUST BEARING NUMBER 4 AND THRUST BEARING NUMBER 3 INSTALLATION

CAUTION: Be careful about the installation direction of the thrust bearings.





Check the installation direction of thrust bearings number 3 and 4, and install them as shown.

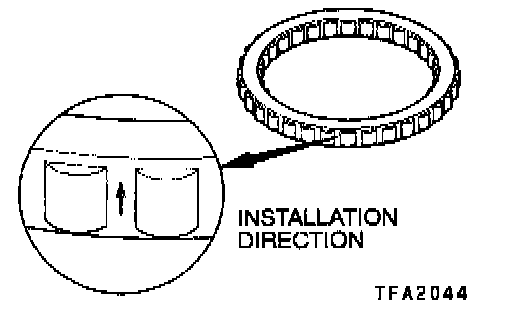

>B< 0NE-WAY CLUTCH INSTALLATION





Insert the one-way clutch into the overdrive annulus gear so that the arrow points to the output planetary carrier side.
