Oil Pump

DISASSEMBLY AND ASSEMBLY
ASSEMBLY SERVICE POINTS
>A< OIL SEAL INSTALLATION
1. Apply a small amount of Automatic Transmission Fluid (ATF) to the lip of oil seal.

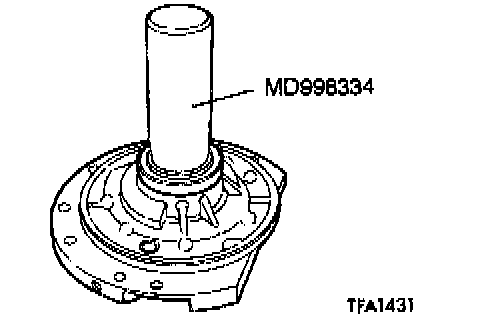

2. Use special tool MD998334 to tap the oil seal in the oil pump body.

>B< O-RING INSTALLATION
Install a new O-ring to the outer groove of the oil pump, and apply ATF or petroleum jelly (Vaseline) to the O-ring.
