Trailing Arm: Service and Repair

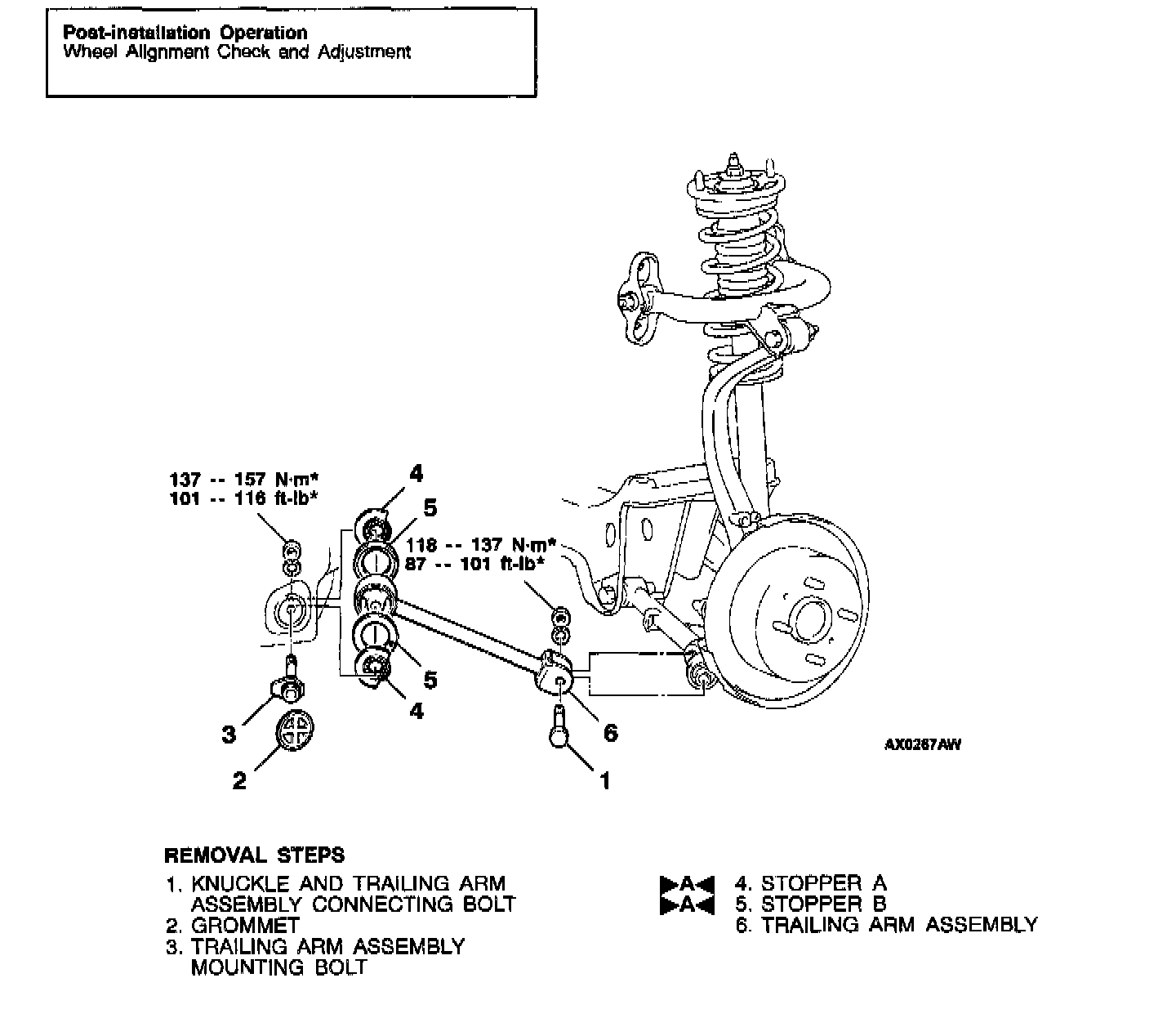

REMOVAL AND INSTALLATION

CAUTION: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in the unladen condition.

Installation Service Points

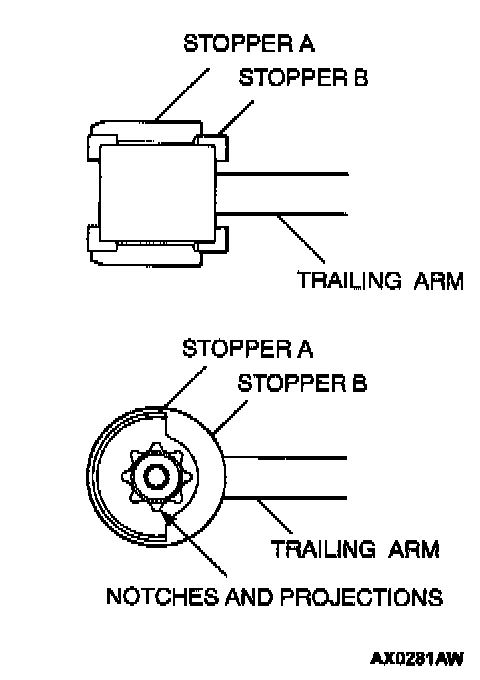

[A]Stopper B/Stopper A Installation





1. Install stopper B in the shown direction.
2. Install stopper A in the shown direction while checking that the notches on stopper A are engaged with the projections on the trailing arm bushing.

INSPECTION
- Check the bushings for wear and deterioration.
- Check the trailing arm for bends or damage.
