Upper Control Arm

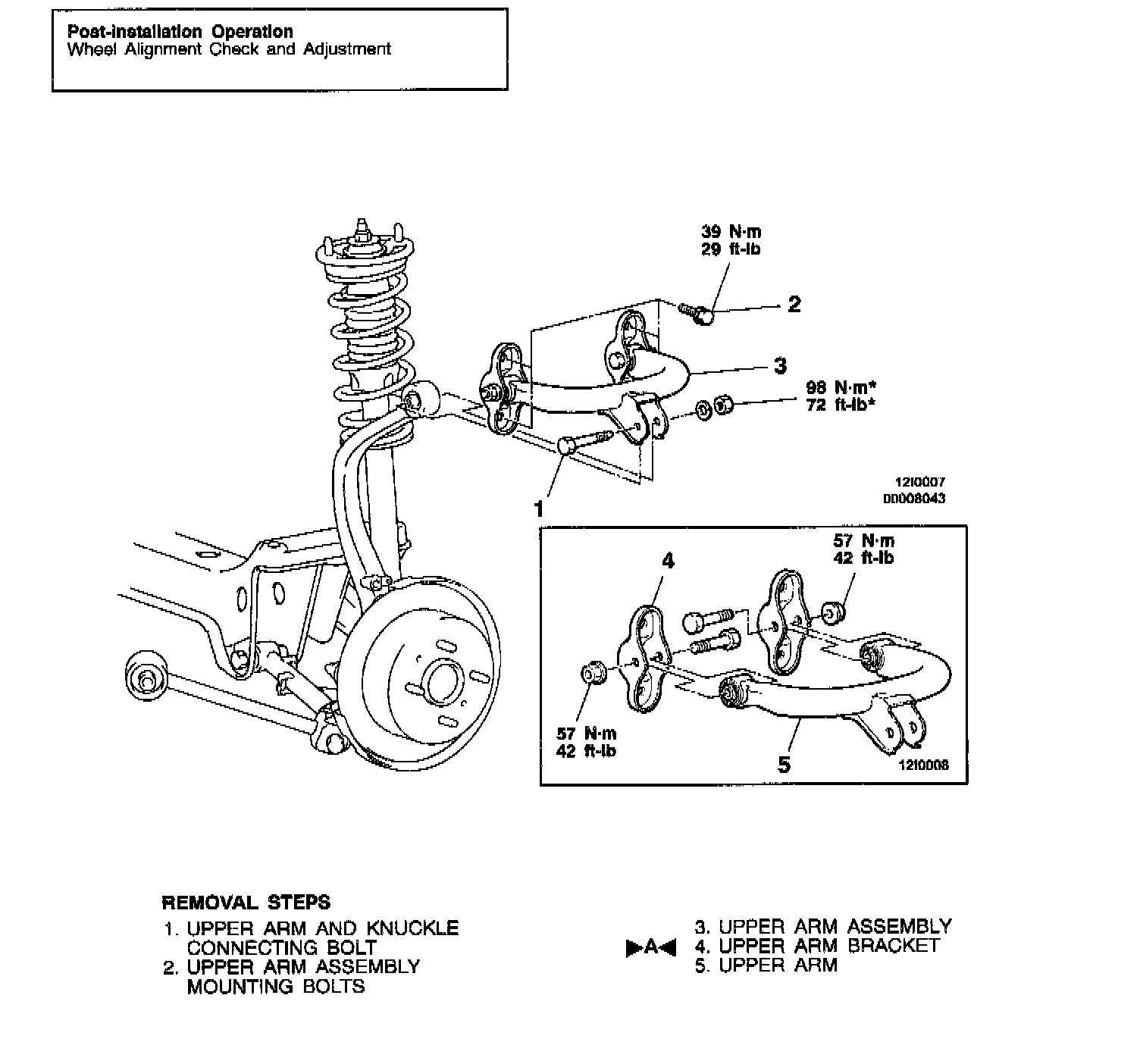

REMOVAL AND INSTALLATION

CAUTION: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in the unladen condition.

Installation Service Point
[A]Upper Arm Bracket Installation

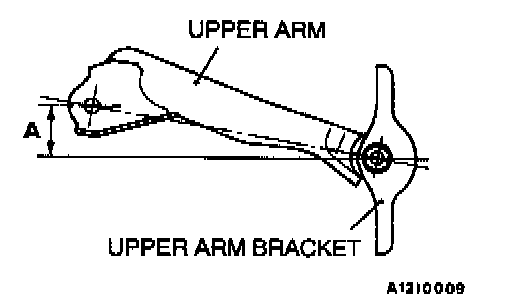

Install the upper arm bracket so that the dimension shown in the illustration is at the standard value.

Standard value (A): 37.2 ± 2 mm (1.46 ± 0.08 inches)





NOTE: Refer to distances B and C shown in the illustration to check the installation angle of the upper arm bracket.

INSPECTION
- Check the bushings for wear and deterioration.
- Check the upper arm for bends or damage.
- Check all bolts for condition and straightness.
