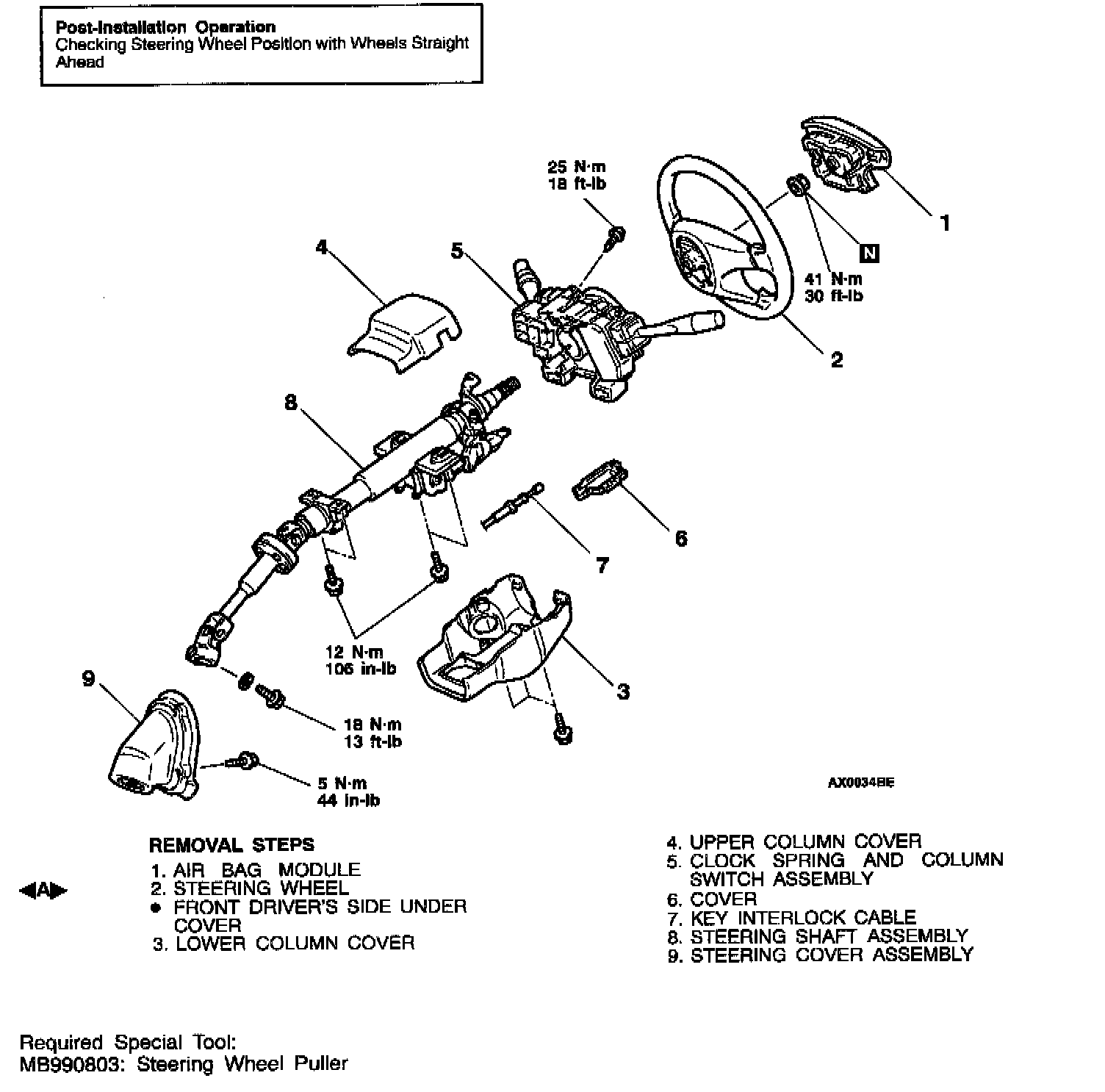

Removal and Replacement

REMOVAL AND INSTALLATION





WARNING:
- Before removing the air bag module, refer to Service Precautions and Air Bag Module and Clock Spring.
- When removing and installing the steering wheel, do not let it bump against the air bag module.

Removal Service Point
[A]Steering Wheel Removal





CAUTION: Do not hammer on the steering wheel to remove it; doing so will damage the collapsible mechanism.

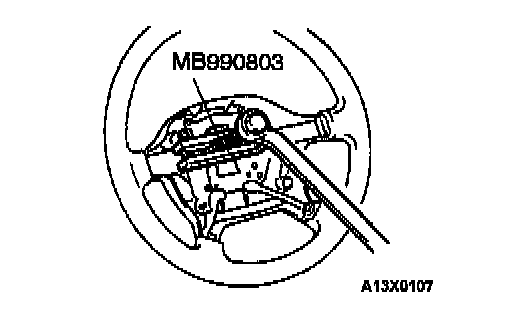

Use special tool MB990803 to remove the steering wheel.
