Seat Belt: Testing and Inspection

OUTER SEAT BELT CHECK
Check that the B section (red) of the label attached to the outer seat belt is not exposed from the outer seat belt sleeve. If it is exposed, replace the outer seat belt.

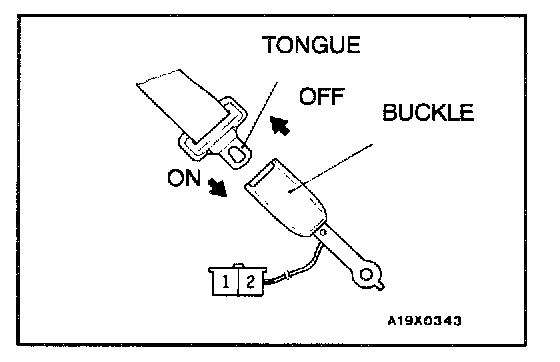

Front Seat Belt Buckle Switch Continuity Check:

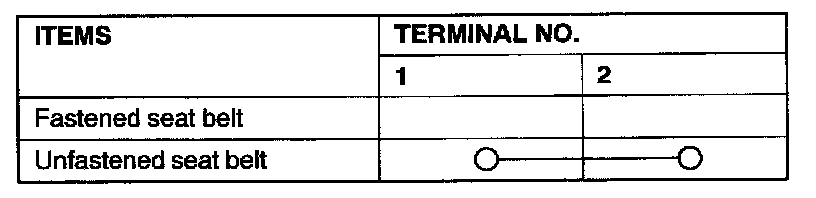

SEAT BELT BUCKLE SWITCH CONTINUITY CHECK
