Home >> Mitsubishi >> 2000 >> Galant GTZ V6-3.0L SOHC >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Lighting and Horns >> Headlamp Relay >> Testing and Inspection

Headlamp Relay: Testing and Inspection

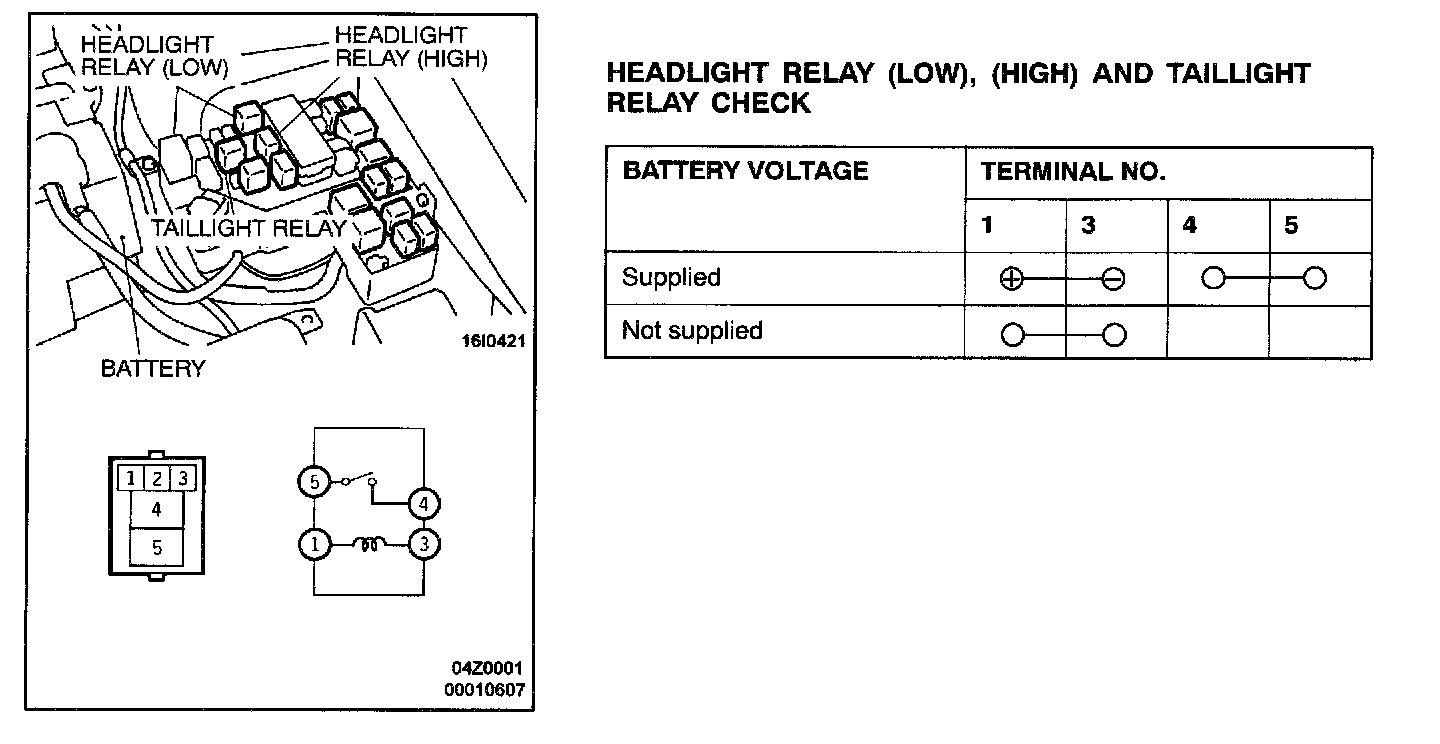

Headlight Relay (low), (high) And Taillight Relay Check:
