Removal and Installation






REMOVAL SERVICE POINT




REAR COMBINATION LIGHT REMOVAL

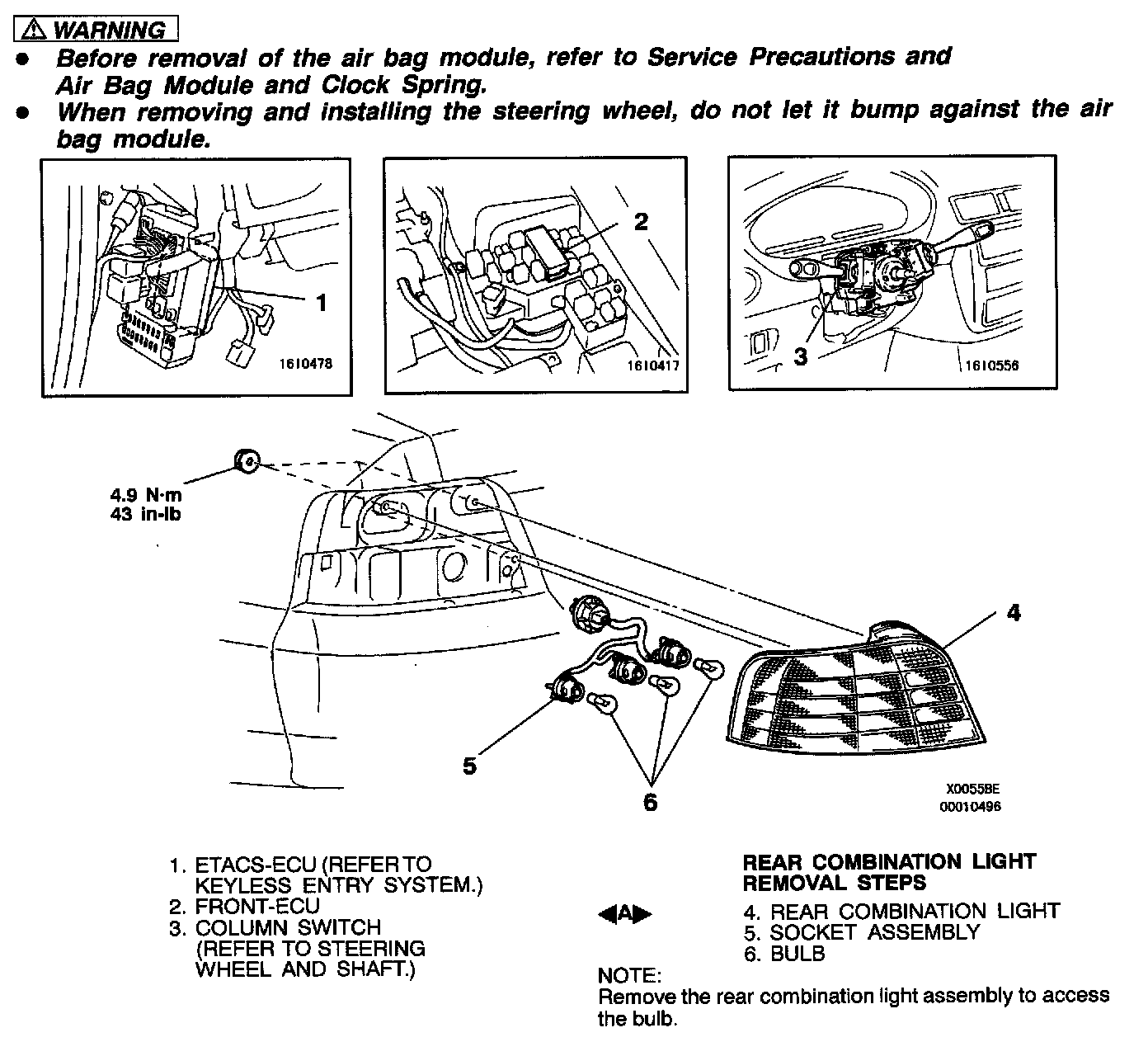

1. Remove the plastic stud cap, then turn up the trunk trim assembly as shown in the illustration.
2. Removal the rear combination light mounting nuts and disconnect the connector.
3. Remove the rear combination light.
