Courtesy Lamp Bulb: Service and Repair





1. Disconnect the connector

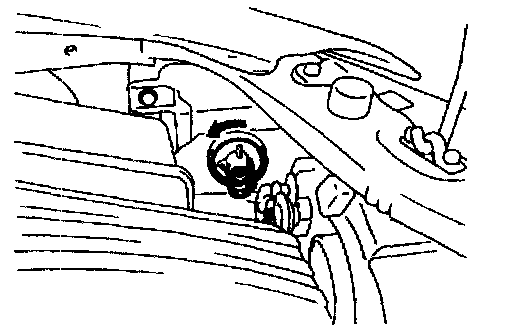

2. Turn the bulb socket counterclockwise together with the bulb, and remove the bulb.

CAUTION: If the bulb socket is not securely installed, moisture will enter the lens.
