Blower Switch Assembly Continuity Check

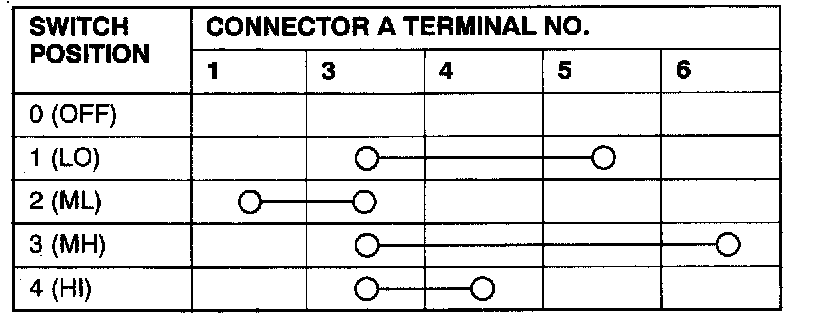

Blower Switch:




1. BLOWER SWITCH

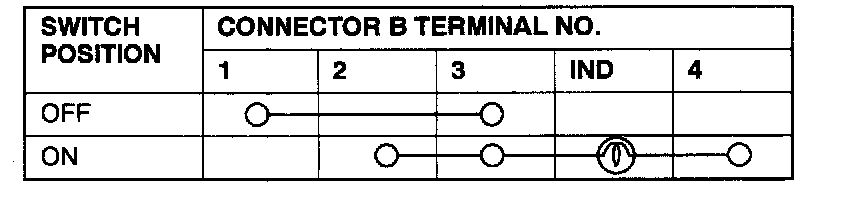

A/C Switch:




2. A/C SWITCH

Inside/Outside Air Changeover Switch:




3. INSIDE/OUTSIDE AIR CHANGEOVER SWITCH
