Hose/Line HVAC: Service and Repair

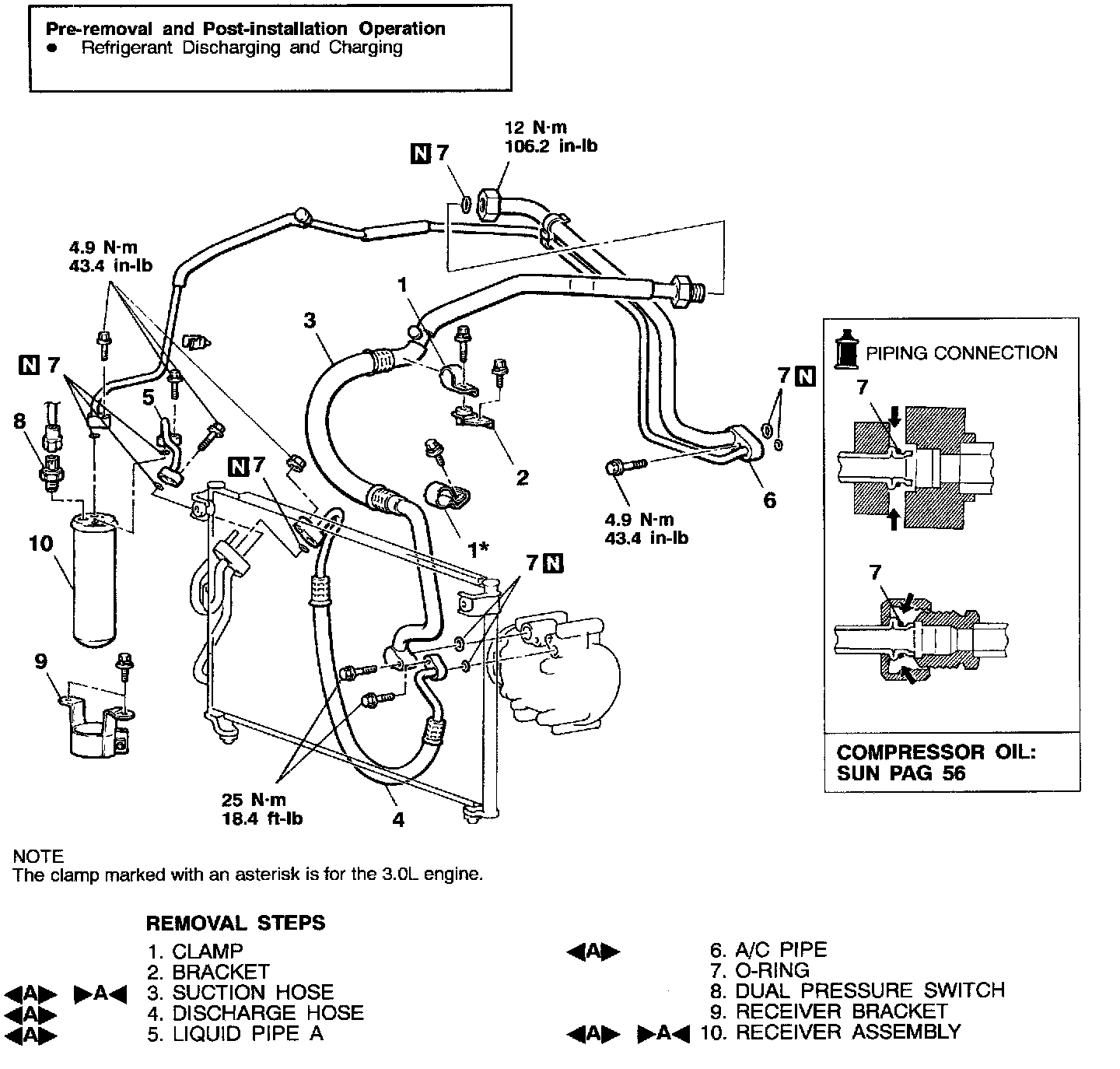

REMOVAL AND INSTALLATION
REMOVAL SERVICE POINT
HOSE/PIPE/RECEIVER ASSEMBLY DISCONNECTION
CAUTION: Seal the hoses completely, otherwise the compressor oil and receiver will absorb water vapor easily, possibly damaging the compressor and deteriorating performance.
Plug the disconnected hose, the receiver, the condenser; the evaporator and the compressor nipple to prevent foreign material from getting into them.
INSTALLATION SERVICE POINT
>A< SUCTION HOSE/RECEIVER ASSEMBLY INSTALLATION
When replacing the suction hose or receiver assembly, refill them with a specified amount of compressor oil, and then install them.
Compressor oil: SUN PAG 56
Quantity:
Suction hose: 10 cubic.cm (0.3 fl.oz)
Receiver assembly: 10 cubic.cm (0.3 fl.oz)
