Generator and Drive Belt

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT
[A] CRANKSHAFT BOLT LOOSENING

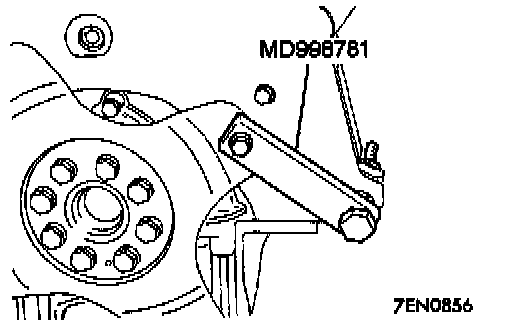

1. Install special tool MD998781 to hold the drive plate.
2. Loosen and remove the crankshaft bolt and washer.

INSTALLATION SERVICE POINT
]A[ CRANKSHAFT BOLT TIGHTENING

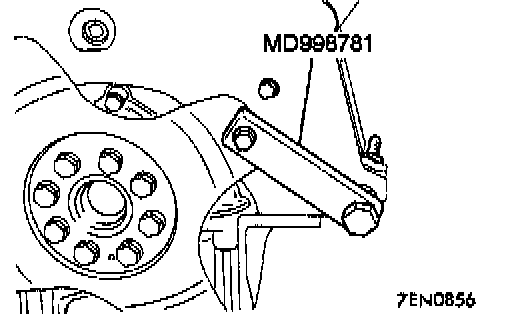

1. Install special tool MD998781 to hold the drive plate.
2. Install the washer and crankshaft bolt, and then tighten the bolt.
Tightening torque: 182 Nm (134 ft. lbs.)
