California

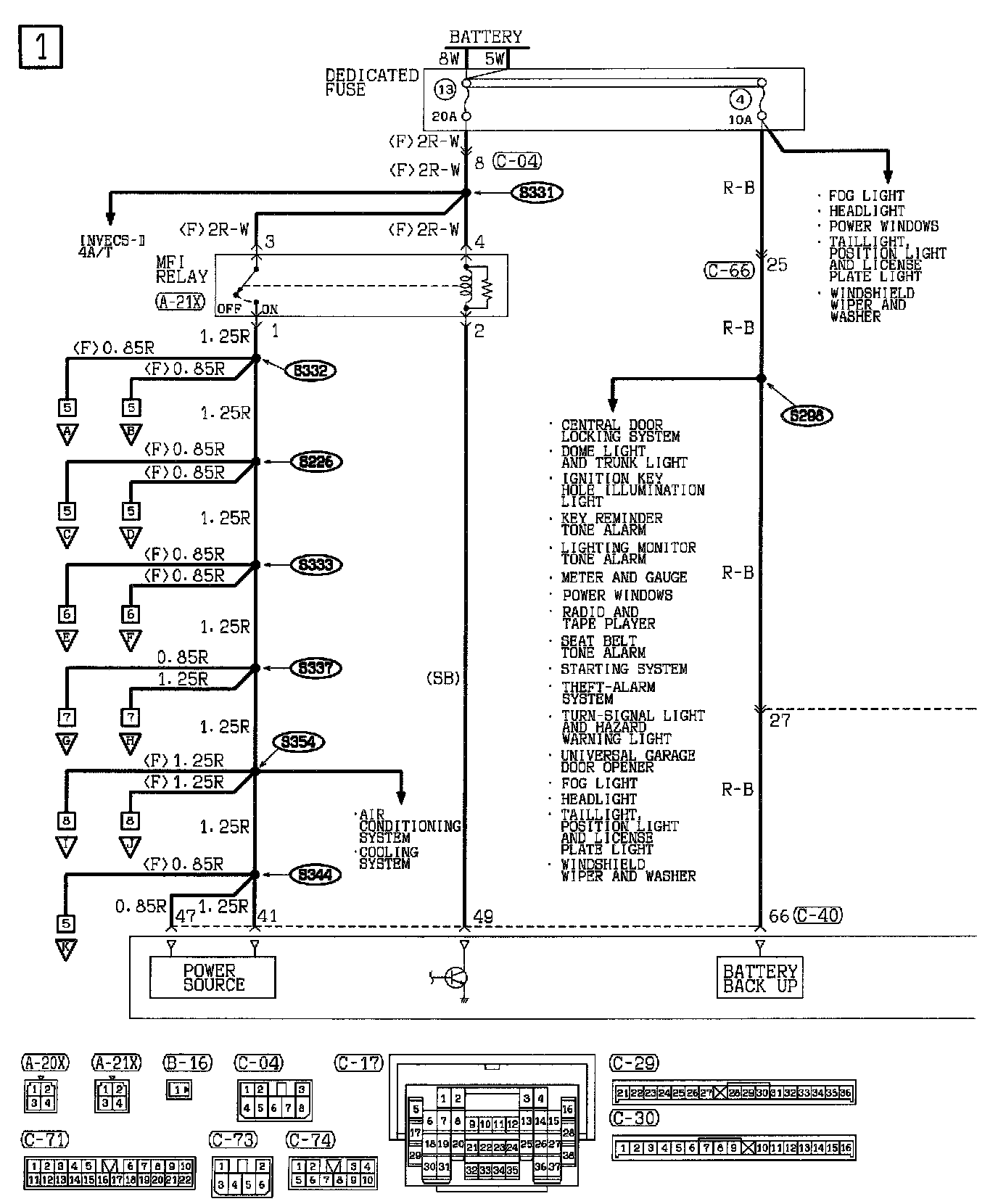

Dedicated Fuse
MFI Relay
Battery Back Up
Power Source

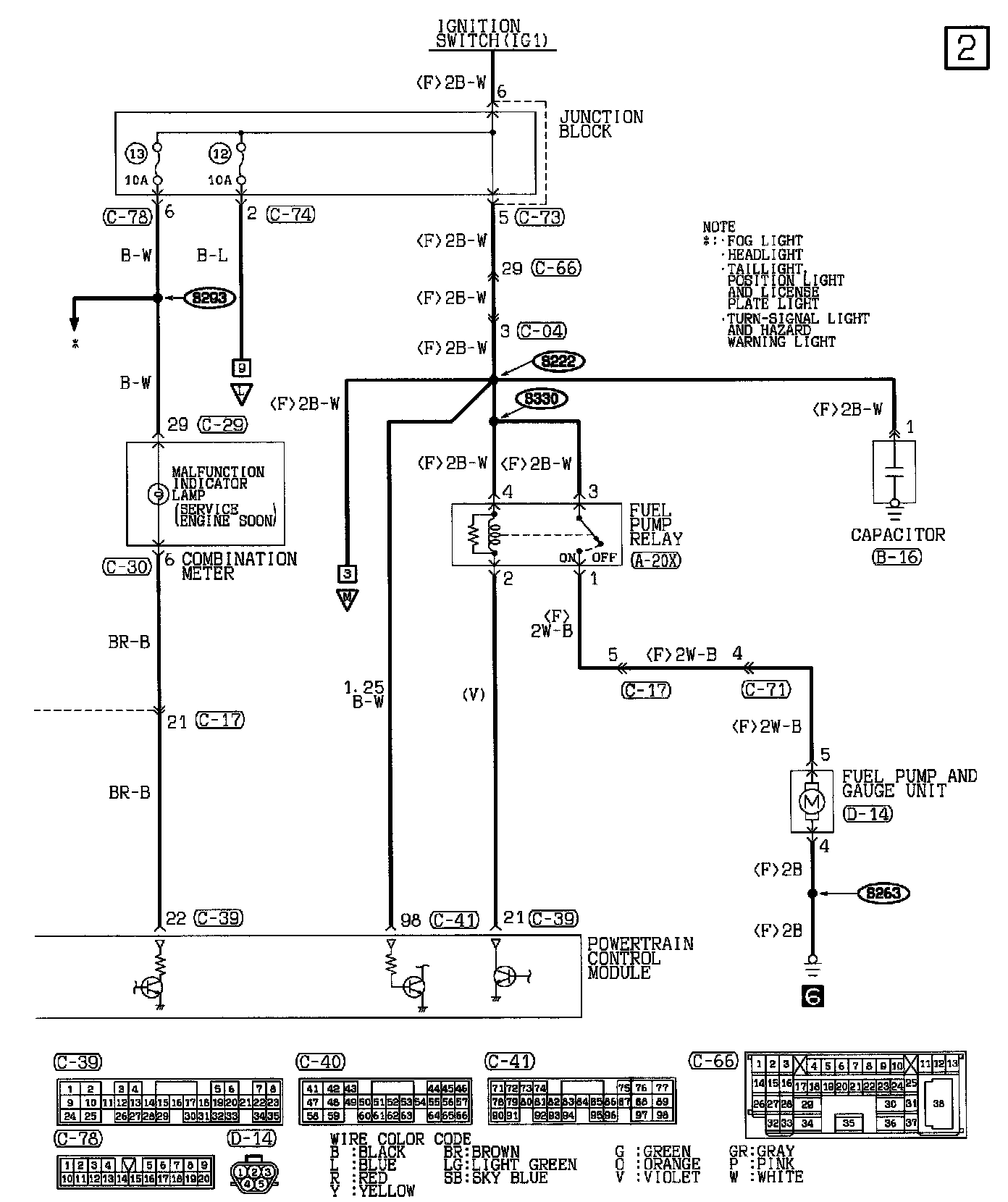

Capacitor
Combination Meter
Fuel Pump And Gauge Unit
Fuel Pump Relay
Junction Block
Powertrain Control Module

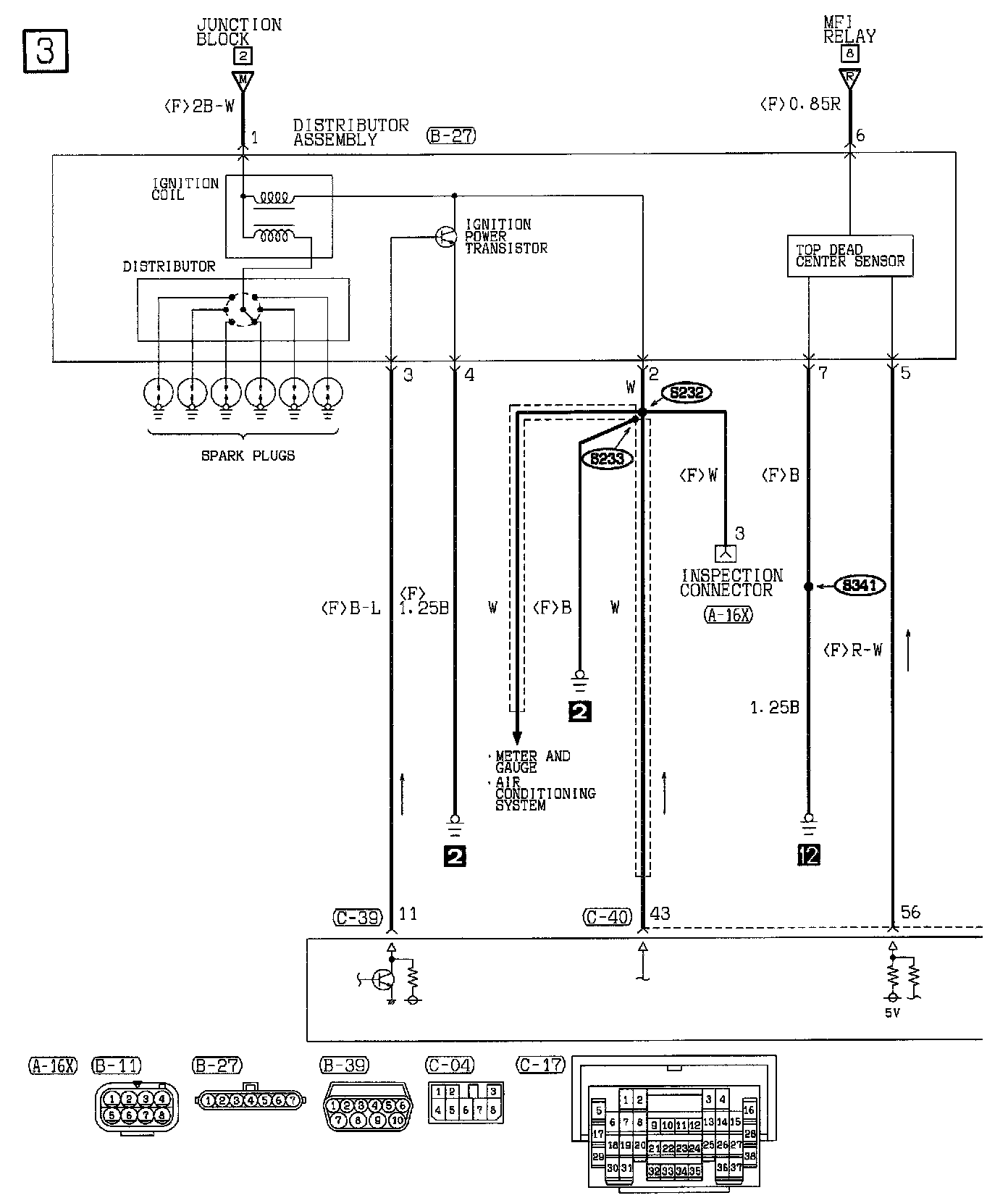

Distributor Assembly
Distributor
Ignition Coil
Top Dead Center Sensor
Inspection Connector

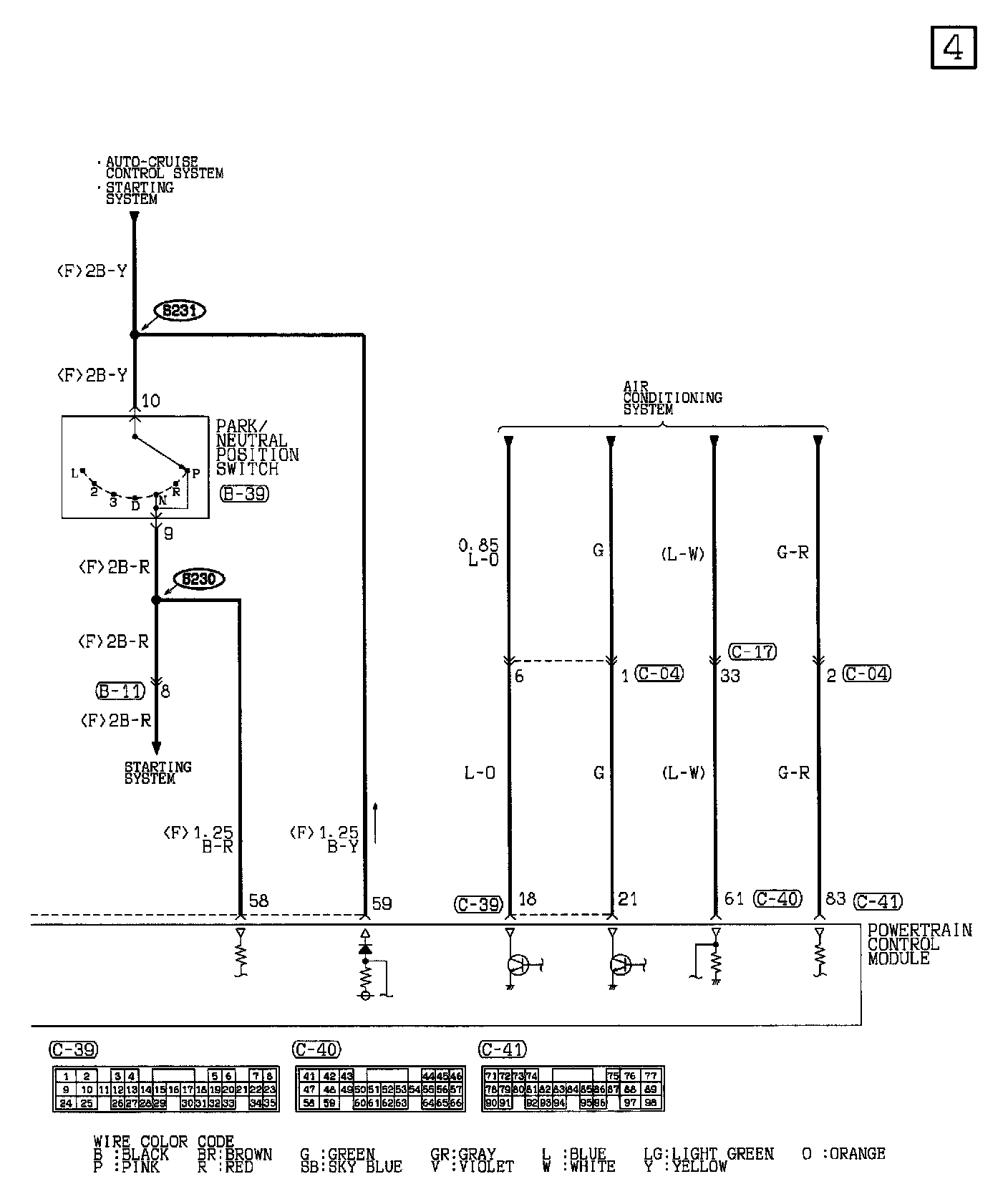

Park/Neutral Position Switch
Powertrain Control Module

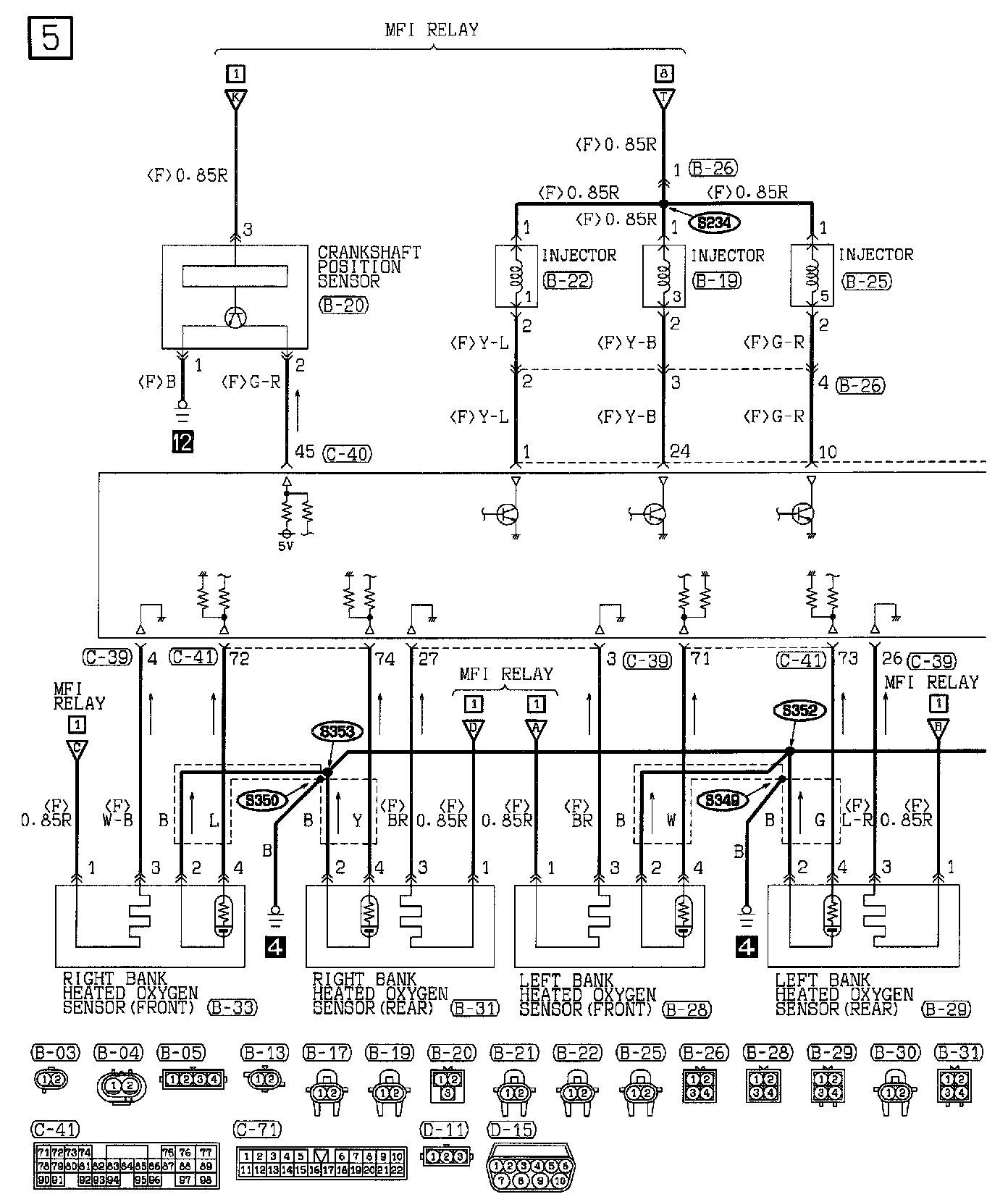

Crankshaft Position Sensor
Injectors
Left Bank Heated Oxygen Sensor (Front & Rear)
Right Bank Heated Oxygen Sensor (Front & Rear)

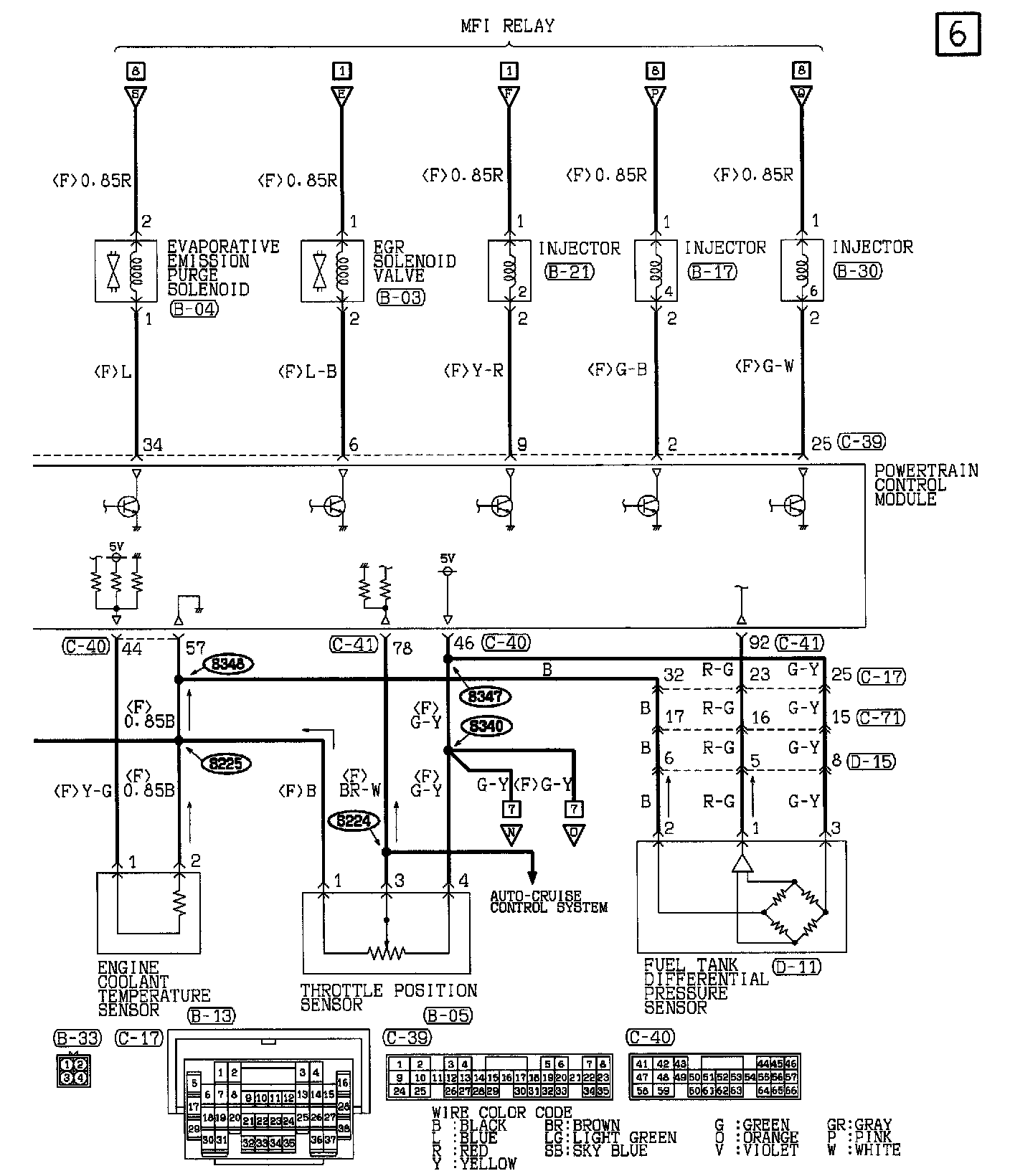

EGR Solenoid Valve
Engine Coolant Temperature Sensor
Evaporative Emission Purge Solenoid
Fuel Injectors
Fuel Tank Differential Sensor
Powertrain Control Module
Throttle Position Sensor

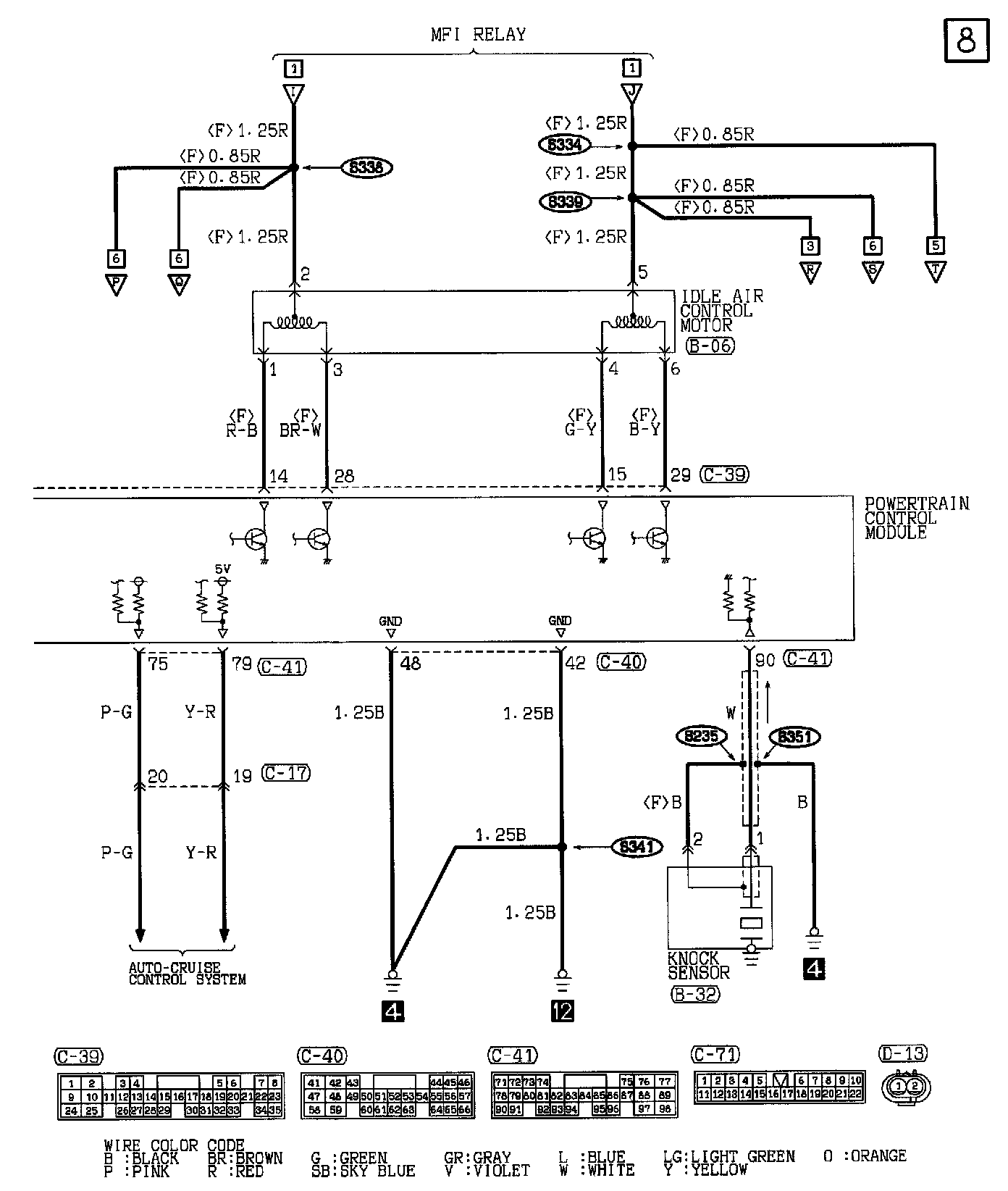

Idle Air Control Motor
Powertrain Control Module

Powertrain Control Module
Vehicle Speed Sensor

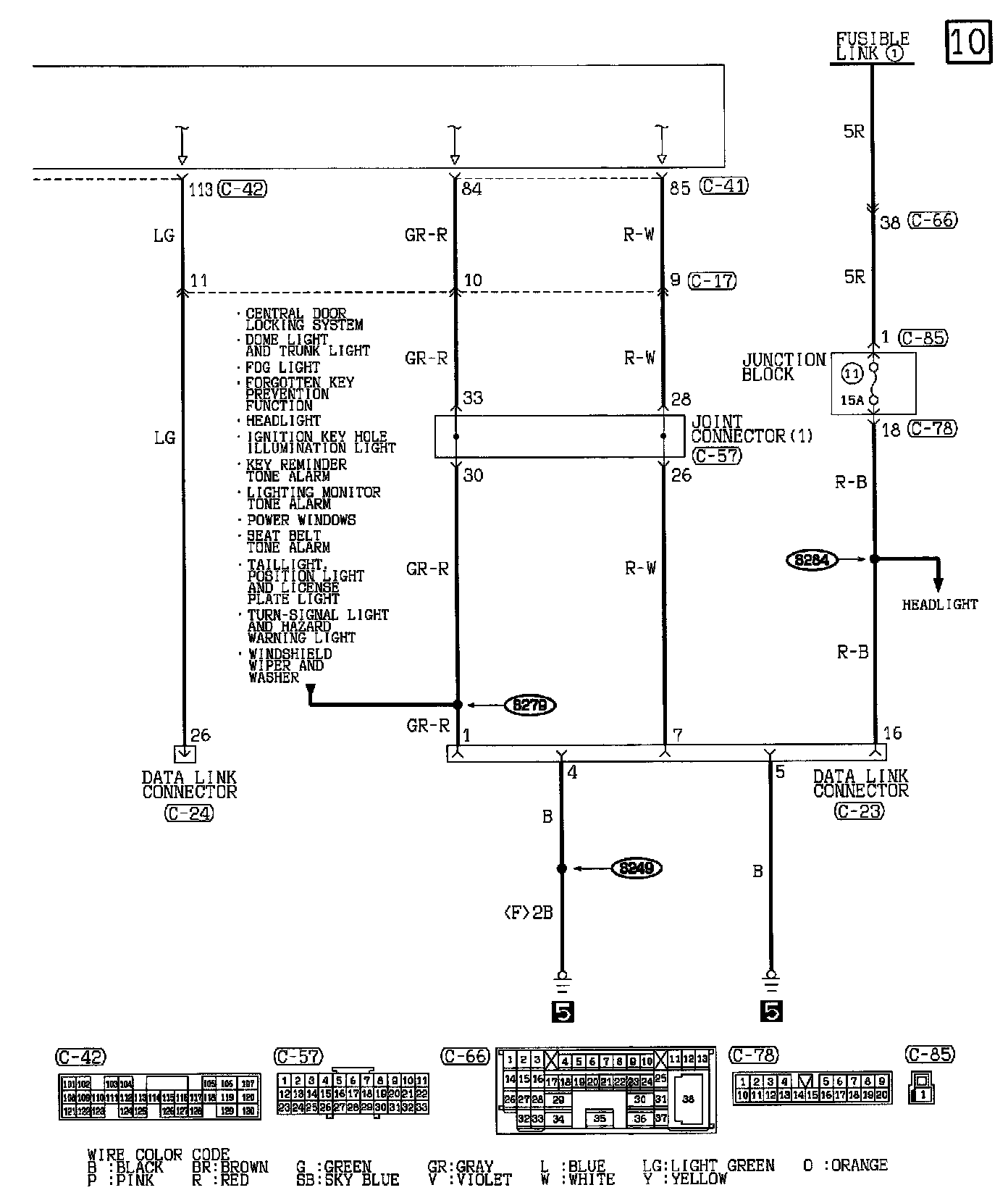

Data Link Connector
Junction Block
Joint Connector (1)
Powertrain Control Module
