Brake Proportioning/Combination Valve: Service and Repair

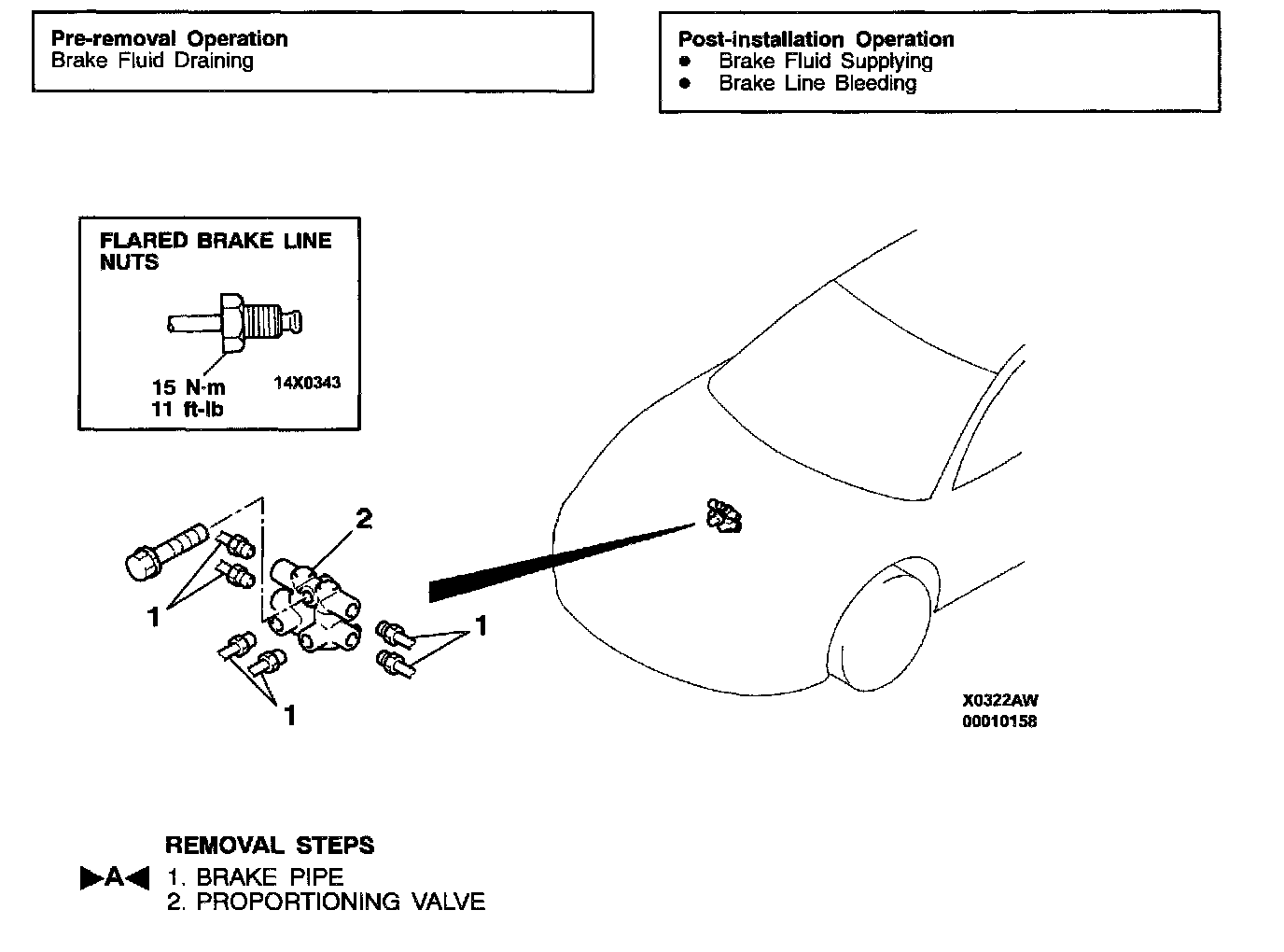

REMOVAL AND INSTALLATION

Installation Service Point
>A< BRAKE PIPE CONNECTION

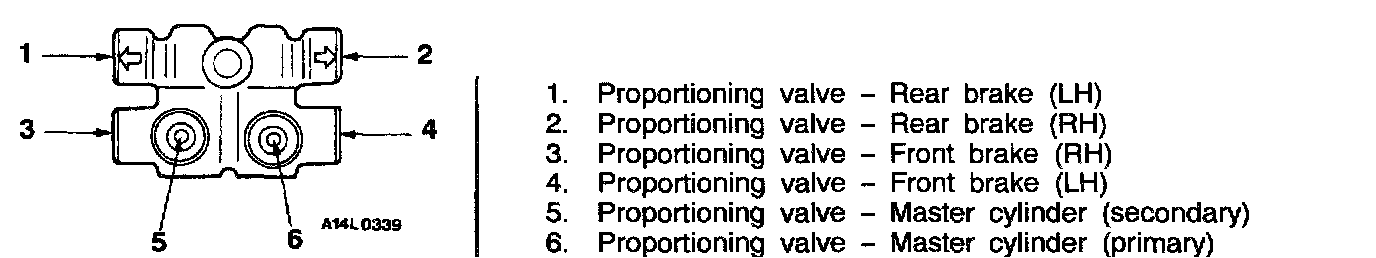

Connect the pipes to the hydraulic unit as shown in the illustration.
1. Proportioning valve - Rear brake (LH)
1. Proportioning valve - Rear brake (RH)
3. Proportioning valve - Front brake (RH)
4. Proportioning valve - Front brake (LH)
5. Proportioning valve - Master cylinder (secondary)
6. Proportioning valve - Master cylinder (primary)
