Disassembly and Assembly

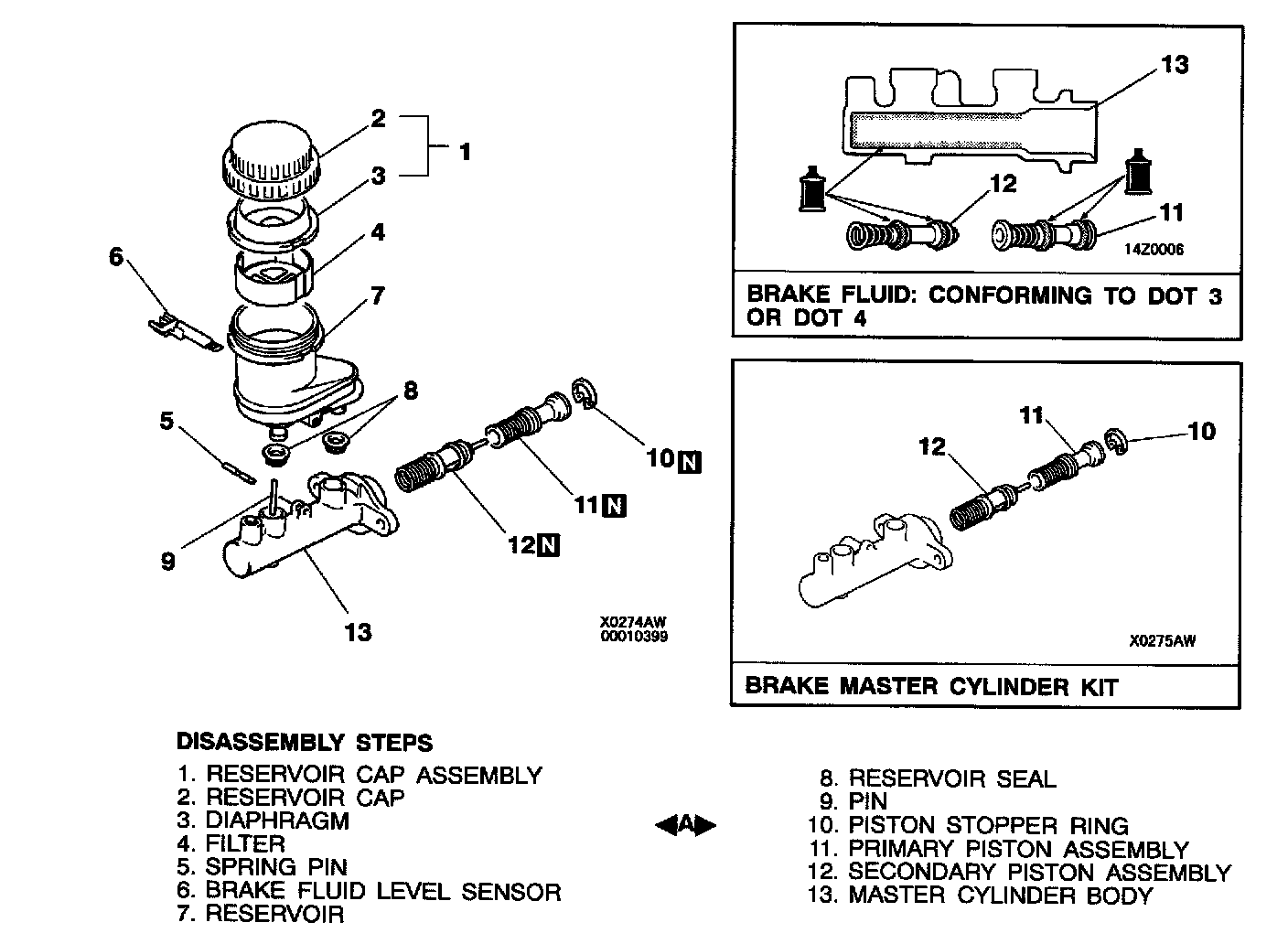

DISASSEMBLY AND ASSEMBLY

CAUTION: Do not disassemble the primary and secondary piston assemblies.

Disassembly Service Point

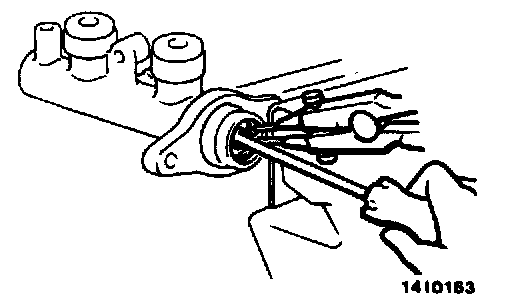

PISTON STOPPER RING DISASSEMBLY

While depressing the piston, remove the piston stopper ring.

INSPECTION
- Check the inner surface of the master cylinder body for corrosion or pitting.
- Check the primary and secondary pistons for corrosion, scoring, wear or damage.
- Check the diaphragm for cracks and wear.
