Lock Cylinder Switch: Service and Repair

REMOVAL SERVICE POINT




STEERING LOCK CYLINDER REMOVAL
1. Insert the key in the steering lock cylinder and turn it to the "ACC" position.

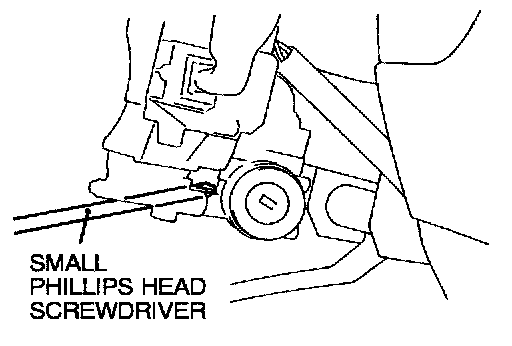

2. Using a small phillips head screwdriver, pull the steering lock cylinder toward you.
