Select Lever

DISASSEMBLY AND ASSEMBLY
ASSEMBLY SERVICE POINT

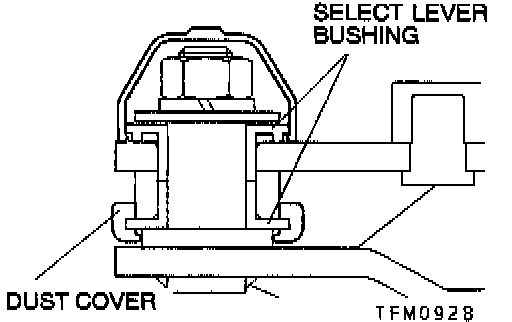

>A< DUST COVER AND SELECT LEVER BUSHING INSTALLATION





Use the figure to make sure the dust cover and select lever bushing installation direction is correct, and the correctly distinguished parts are assembled.
