Home >> Mitsubishi >> 2000 >> Galant ES L4-2350cc 2.4L SOHC MFI >> Repair and Diagnosis >> Heating and Air Conditioning >> Condenser Fan Motor Relay >> Testing and Inspection

Condenser Fan Motor Relay: Testing and Inspection

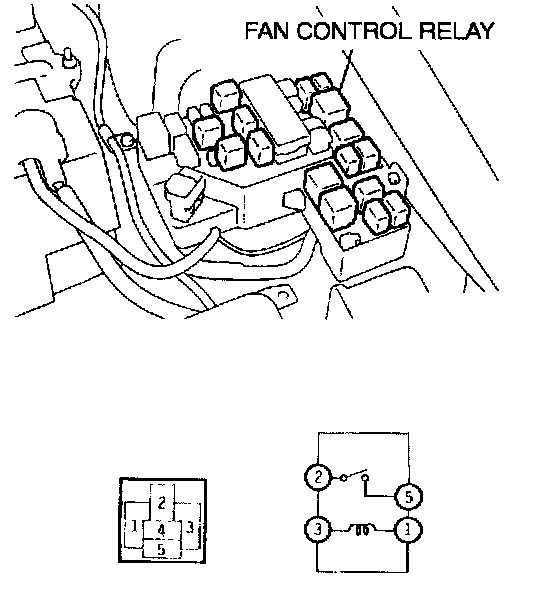

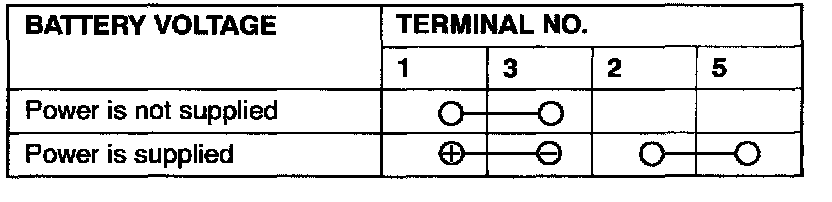

FAN CONTROL RELAY CONTINUITY CHECK
