Removal and Replacement

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINTS
[A] POWER STEERING OIL PUMP AND BRACKET ASSEMBLY REMOVAL
Remove the power steering oil pump and bracket assembly from the engine with the hose attached.

NOTE: Place the removed power steering oil pump in a place where it will not be a hindrance when removing and installing the engine assembly, and tie it with a cord.

[B] A/C COMPRESSOR REMOVAL
Remove the compressor from the compressor bracket with the hose still attached.

NOTE: Place the removed A/C compressor where it will not be a hindrance when removing and installing the engine assembly, and tie it with a cord.

[C] TRANSAXLE ASSEMBLY REMOVAL





CAUTION: Do not remove the flywheel mounting bolt shown by the arrow. If this bolt is removed, the flywheel will become out of balance and damaged.

[D] ENGINE MOUNT BRACKET REMOVAL
1. Support the engine with a garage jack.

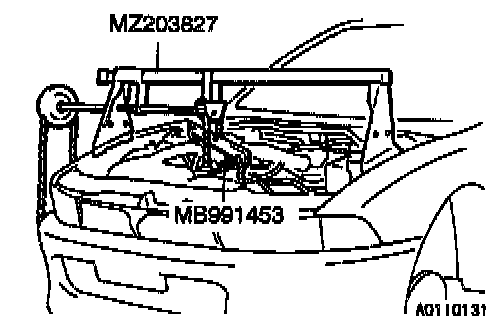

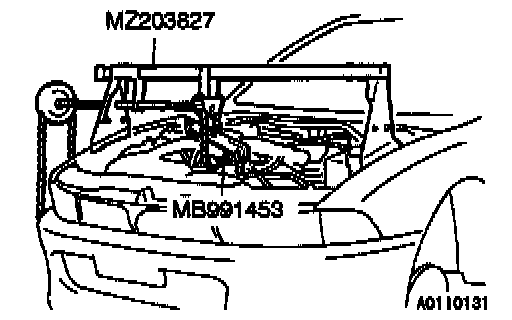

2. Remove the special tools MB991453 and MZ203827 which was attached when the transaxle assembly was removed.
3. Hold the engine assembly with a chain block or similar tool.
4. Place a garage jack against the engine oil pan with a piece of wood in between, jack up the engine so that the weight of the engine is no longer being applied to the engine mount bracket, and then remove the engine mount bracket.

[E] ENGINE ASSEMBLY REMOVAL
After checking that all cables, hoses and harness connectors, etc., are disconnected from the engine, lift the chain block slowly to remove the engine assembly upward from the engine compartment.

INSTALLATION SERVICE POINTS
]A[ ENGINE ASSEMBLY INSTALLATION
Install the engine assembly, checking that the cables, hoses, and harness connectors are not clamped.

]B[ ENGINE MOUNT STOPPER INSTALLATION

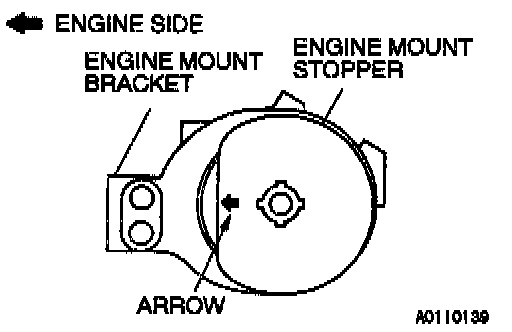

Clamp the engine mount stopper so that the arrow points in the direction as shown in the diagram.

]C[ ENGINE MOUNT BRACKET INSTALLATION





1. Place a garage jack against the engine oil pan with a piece of wood in between, and install the engine mount bracket while adjusting the position of the engine.

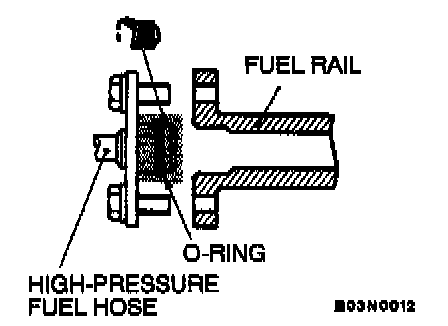

2. While turning the high-pressure fuel hose to the right and left, install it to the fuel rail, while being careful not to damage the O-ring. After installing, check that the hose turns smoothly.
3. If the hose does not turn smoothly, the O-ring is probably being clamped. Disconnect the high-pressure fuel hose and check the O-ring for damage. After this, re-insert the fuel rail and check that the hose turns smoothly.

]D[ HIGH-PRESSURE FUEL HOSE INSTALLATION

CAUTION: Do not let any engine oil get into the fuel rail.





1. Apply a small amount of new engine oil to the O-ring.
2. While turning the high-pressure fuel hose to the right and left, install it to the fuel rail,
