Generator and Ignition System

REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINT

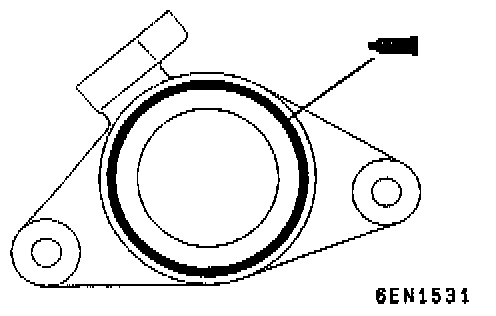

]A[ CAMSHAFT POSITION SENSOR SUPPORT INSTALLATION





Apply a 3 mm (0.12 inch) bead of sealant (Mitsubishi Genuine Part number MD970389) in the groove shown.
