Manual Air Conditioning System

Automatic Compressor Controller
Dedicated Fuse
Heater Control Panel Illumination Light
Junction Block
Outside/Inside Air Damper Control Motor

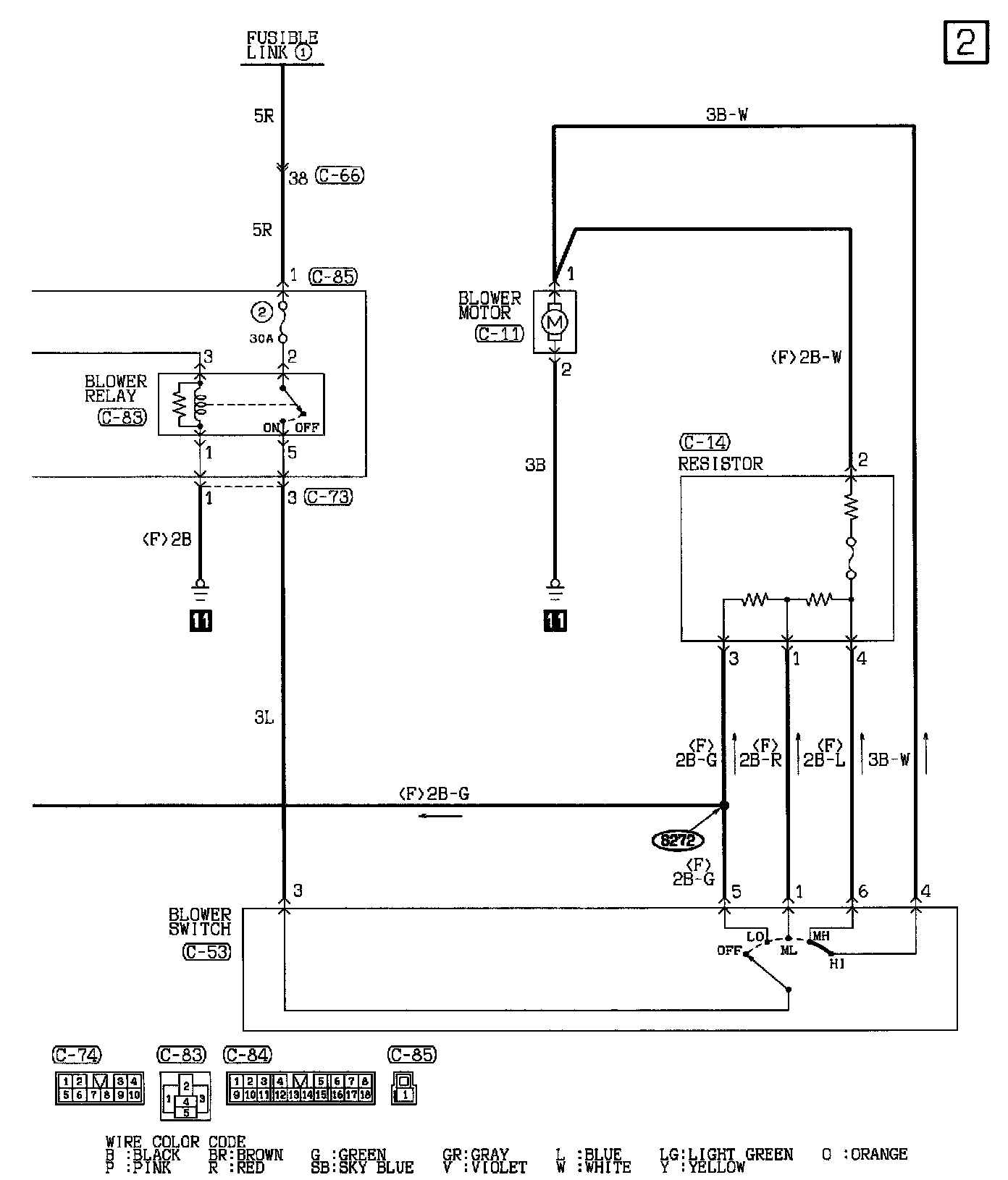

Blower Switch
Blower Motor
Blower Relay
Resistor

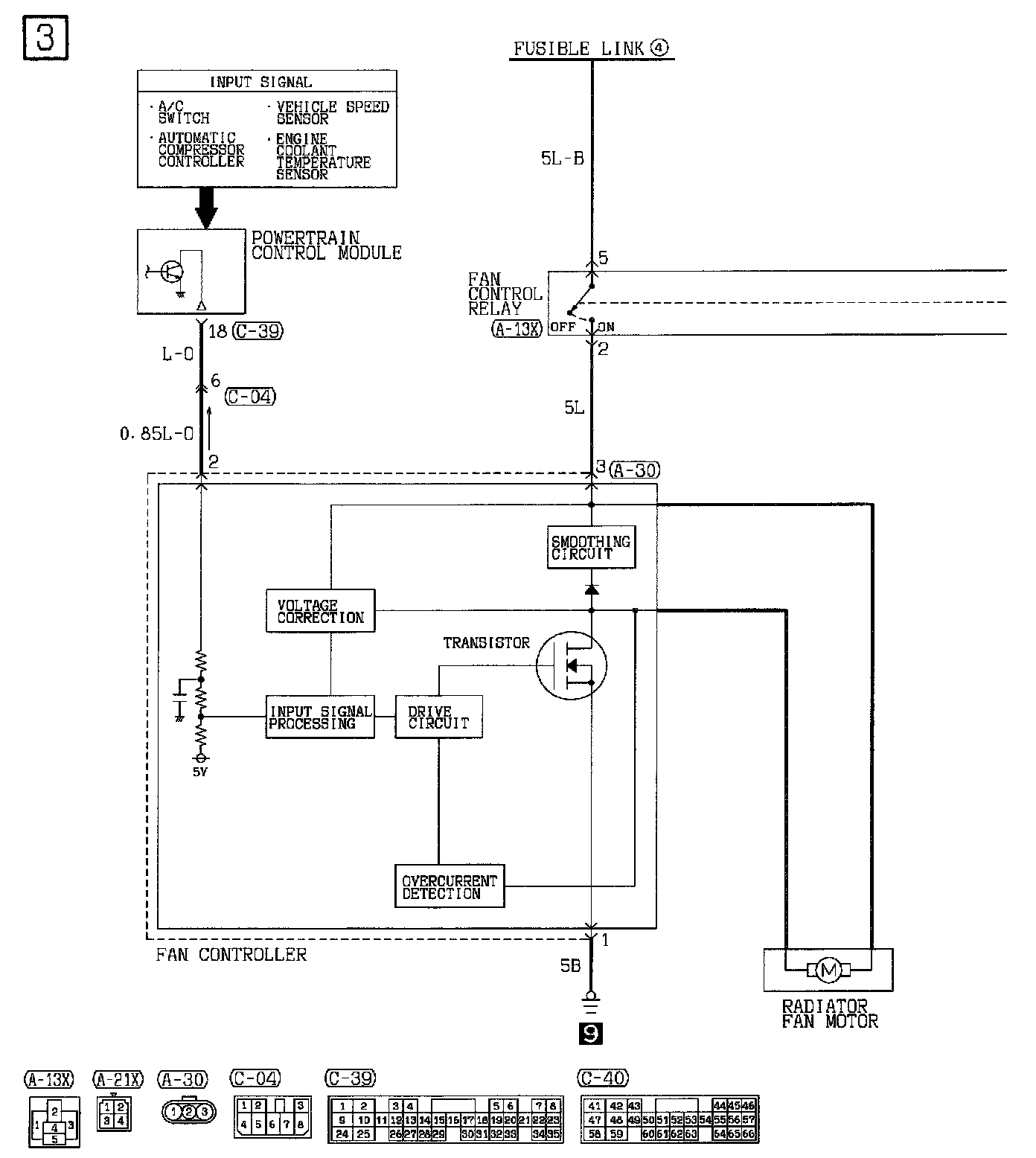

Fan Controller
Fan Control Relay
Powertrain Control Module
Radiator Fan Motor




Dedicated Fuse

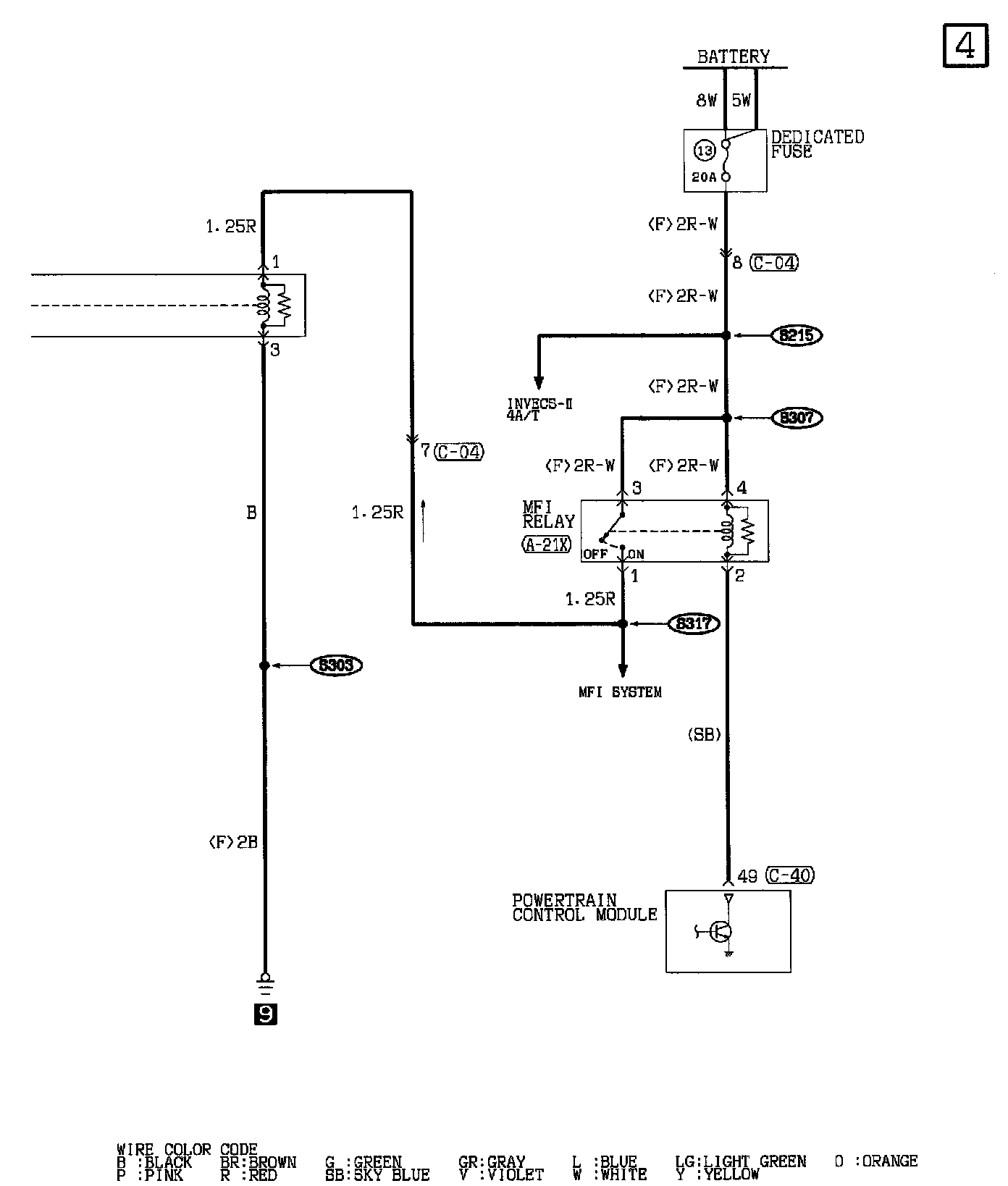

MFI Relay
Powertrain Control Module




Automatic Compressor Controller

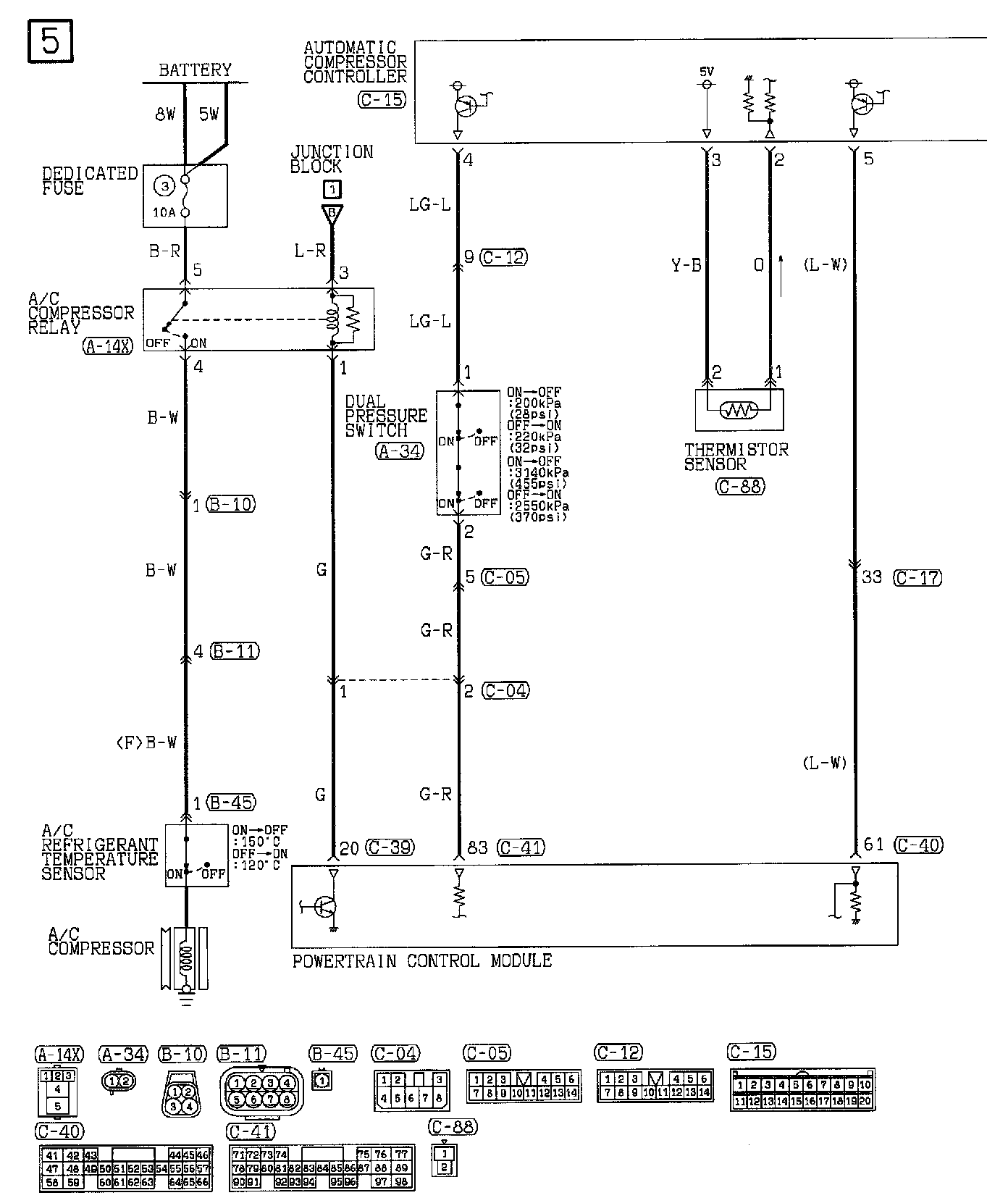

A/C Compressor
A/C Compressor Relay
A/C Refrigerant Temperature Sensor
Air Thermo Sensor
Automatic Compressor Controller
Dedicated Fuse
Dual Pressure Switch
Powertrain Control Module
Thermistor Sensor

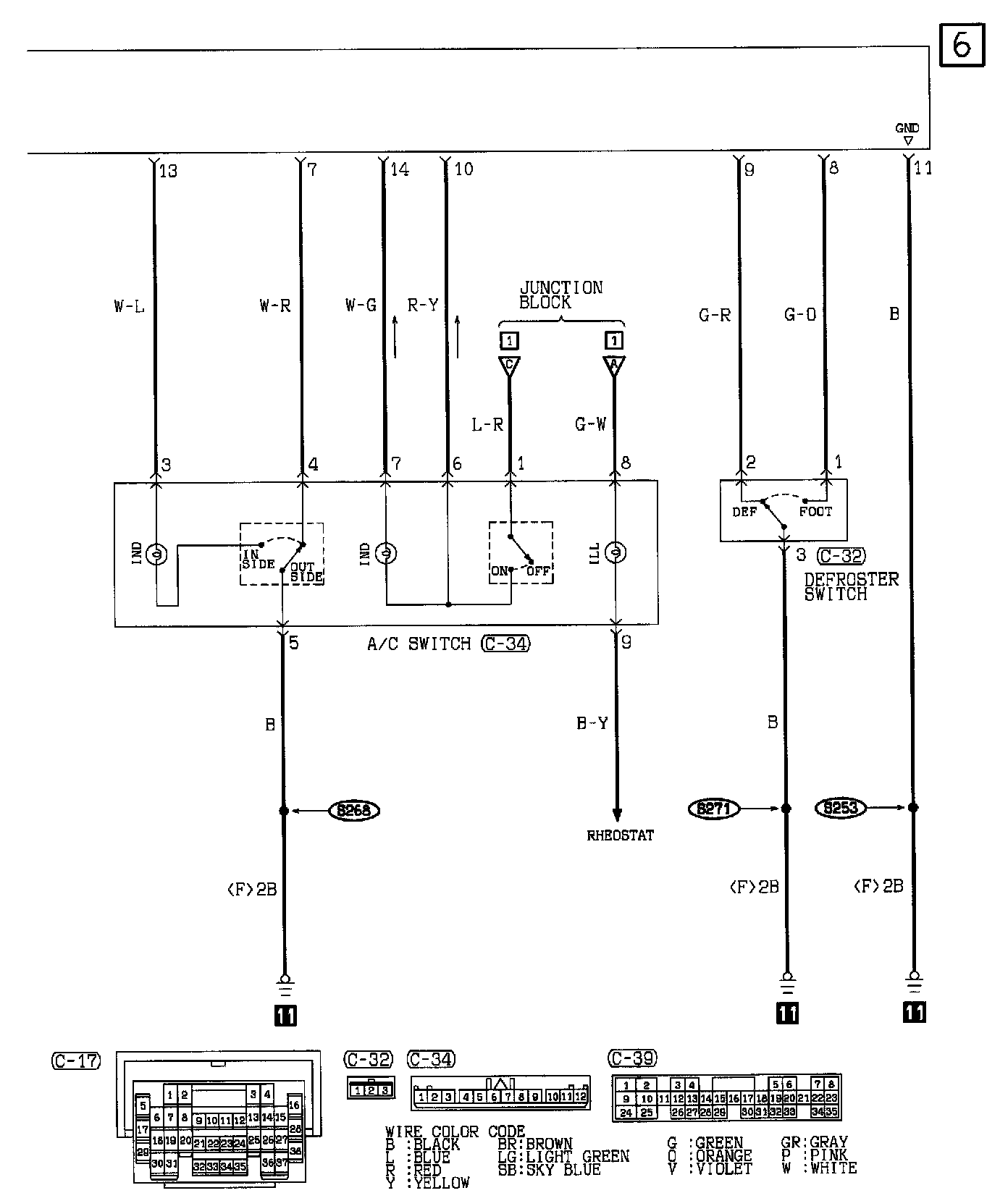

A/C Switch
Junction Block
Defroster Switch
