Theft-Alarm System

Junction Block
Theft-Alarm Horn
Theft-Alarm Horn Relay

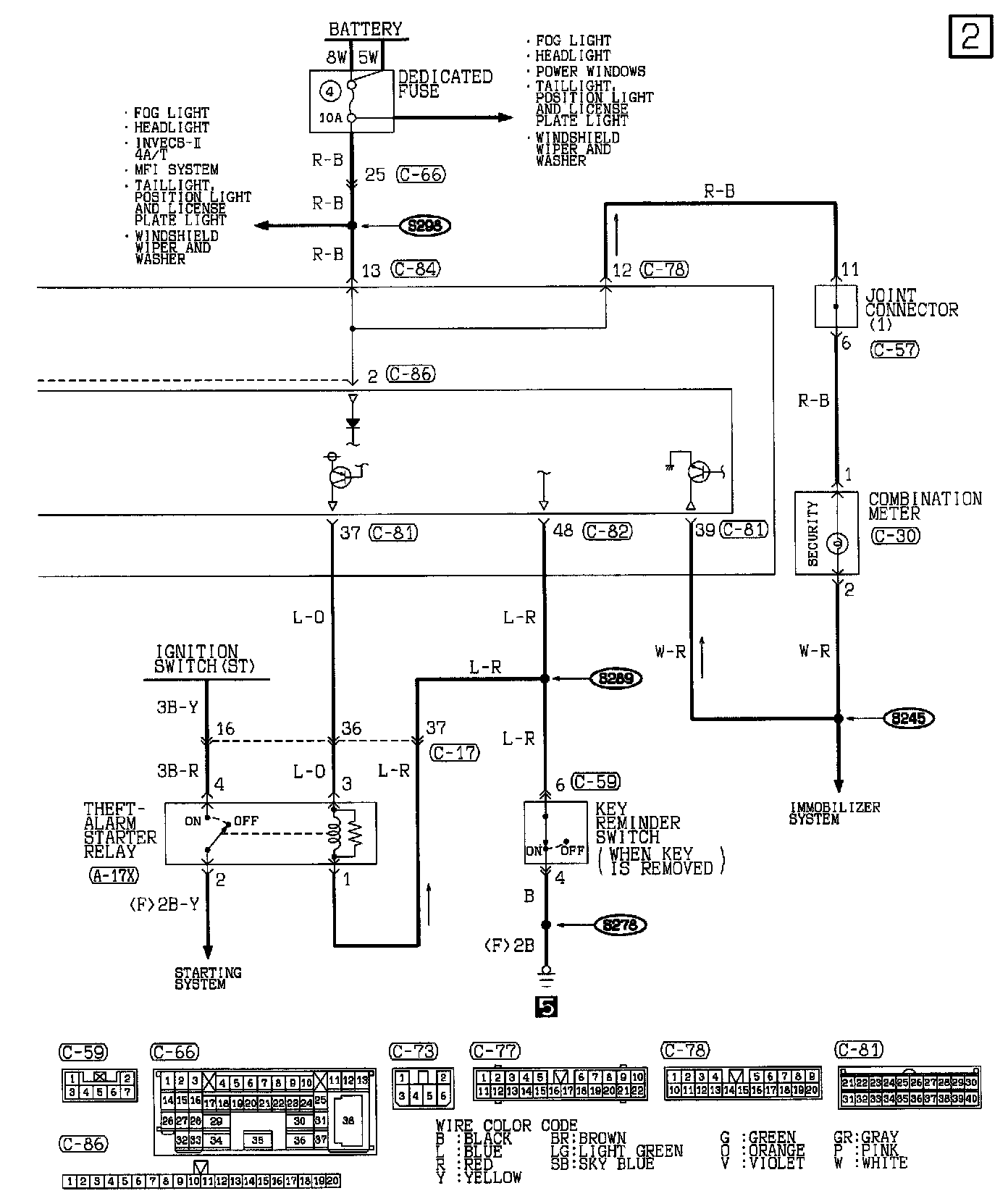

Combination Meter
Dedicated Fuse
Joint Connector (1)
Key Reminder Switch (When Key is removed)
Theft-Alarm Starter Relay

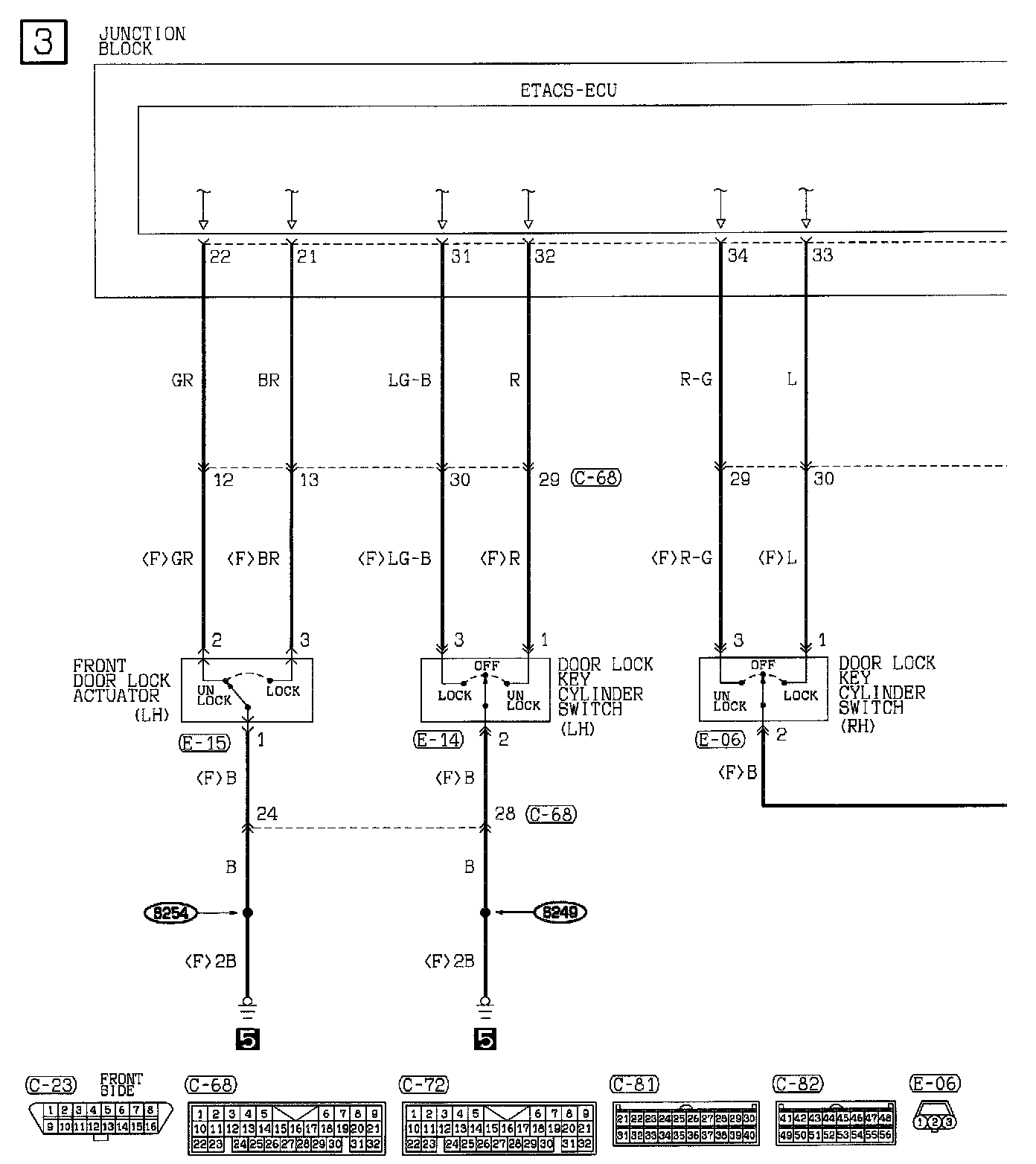

Door Lock Key Cylinder Switch (LH & RH)
Front Door Lock Actuator (LH)
Junction Block
ETACS-ECU

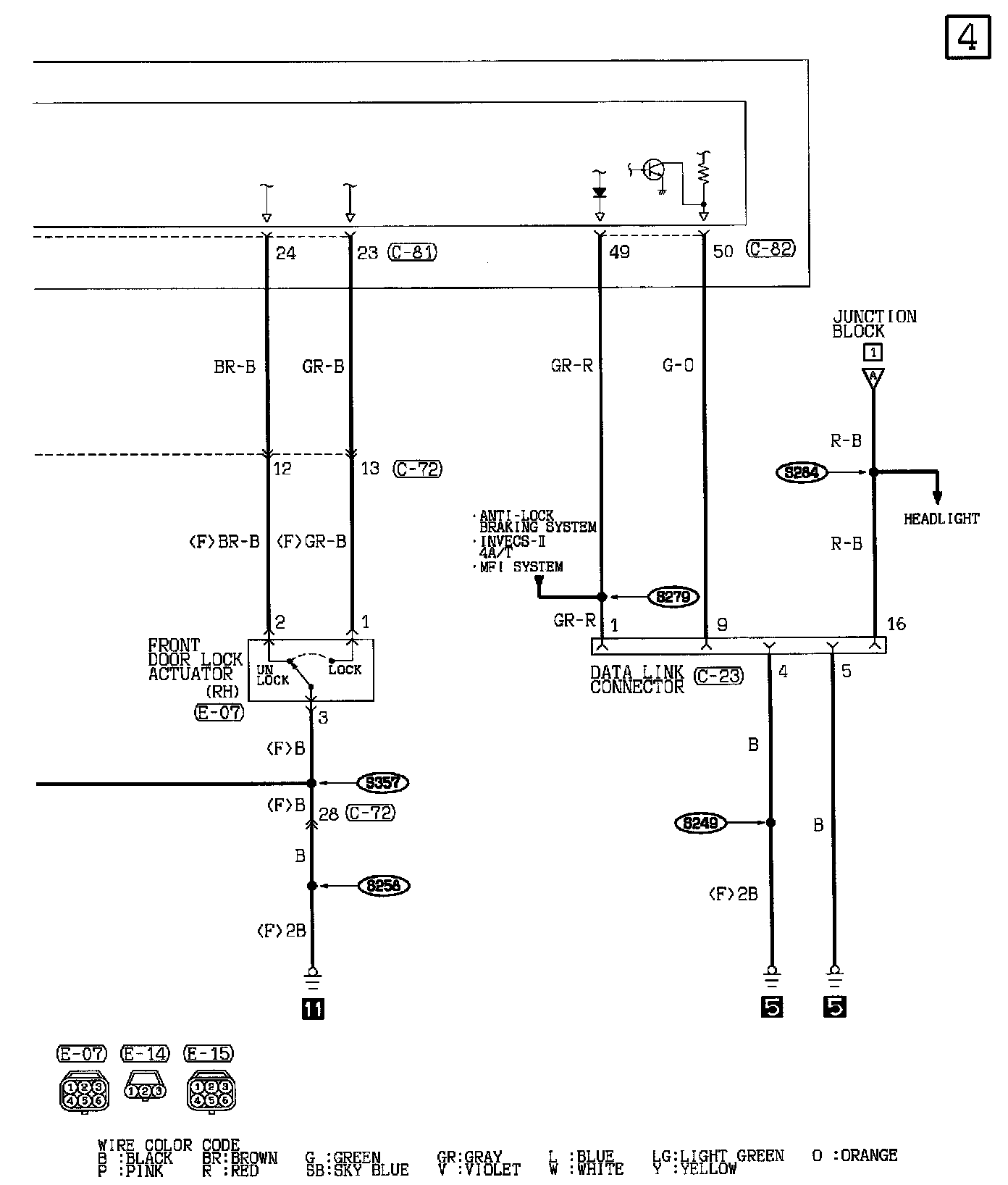

Data Link Connector
Front Door Lock Actuator (RH)
Junction Block

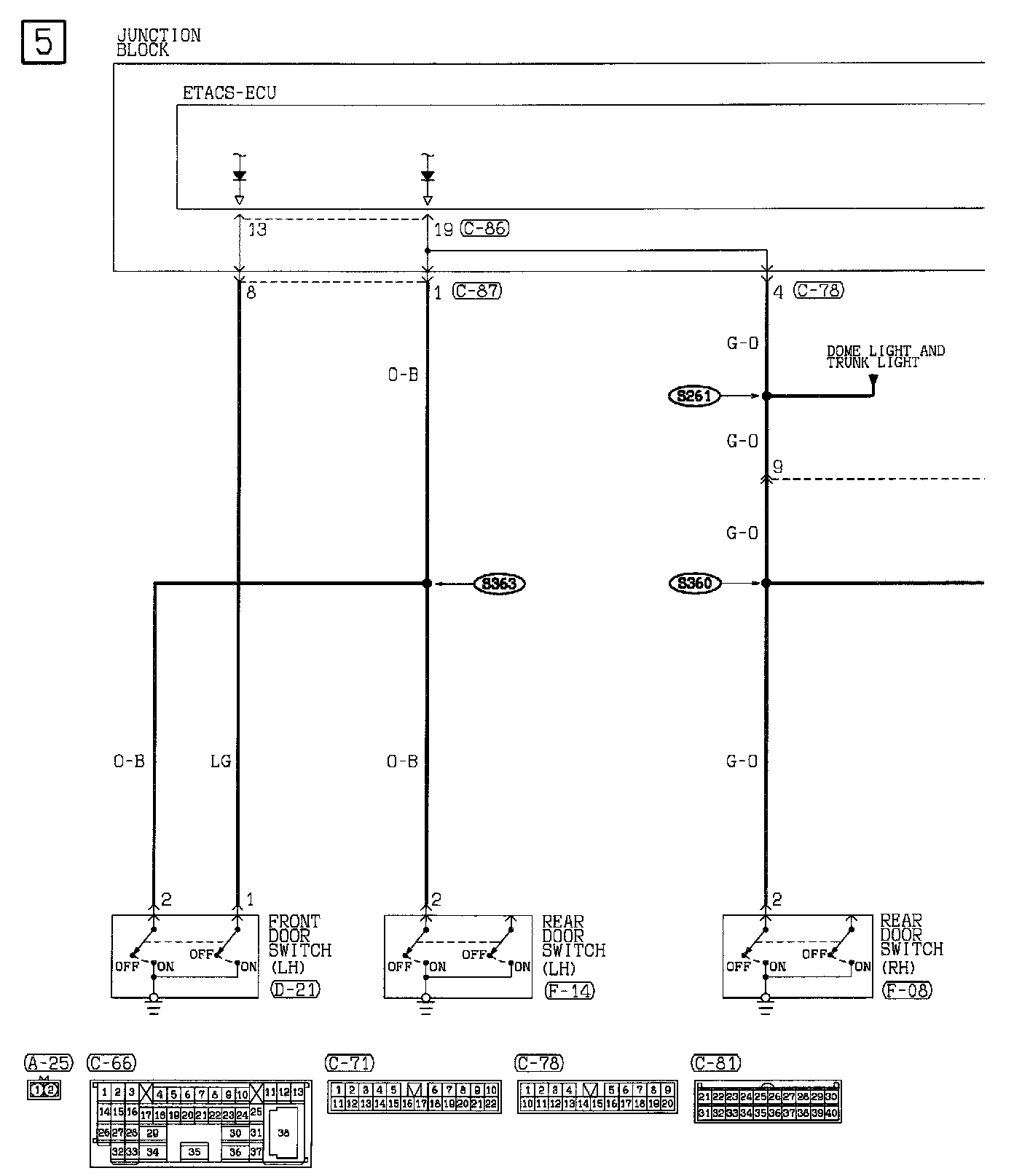

Front Door Switch (LH)
Junction Block
ETACS-ECU
Rear Door Switch (LH & RH)

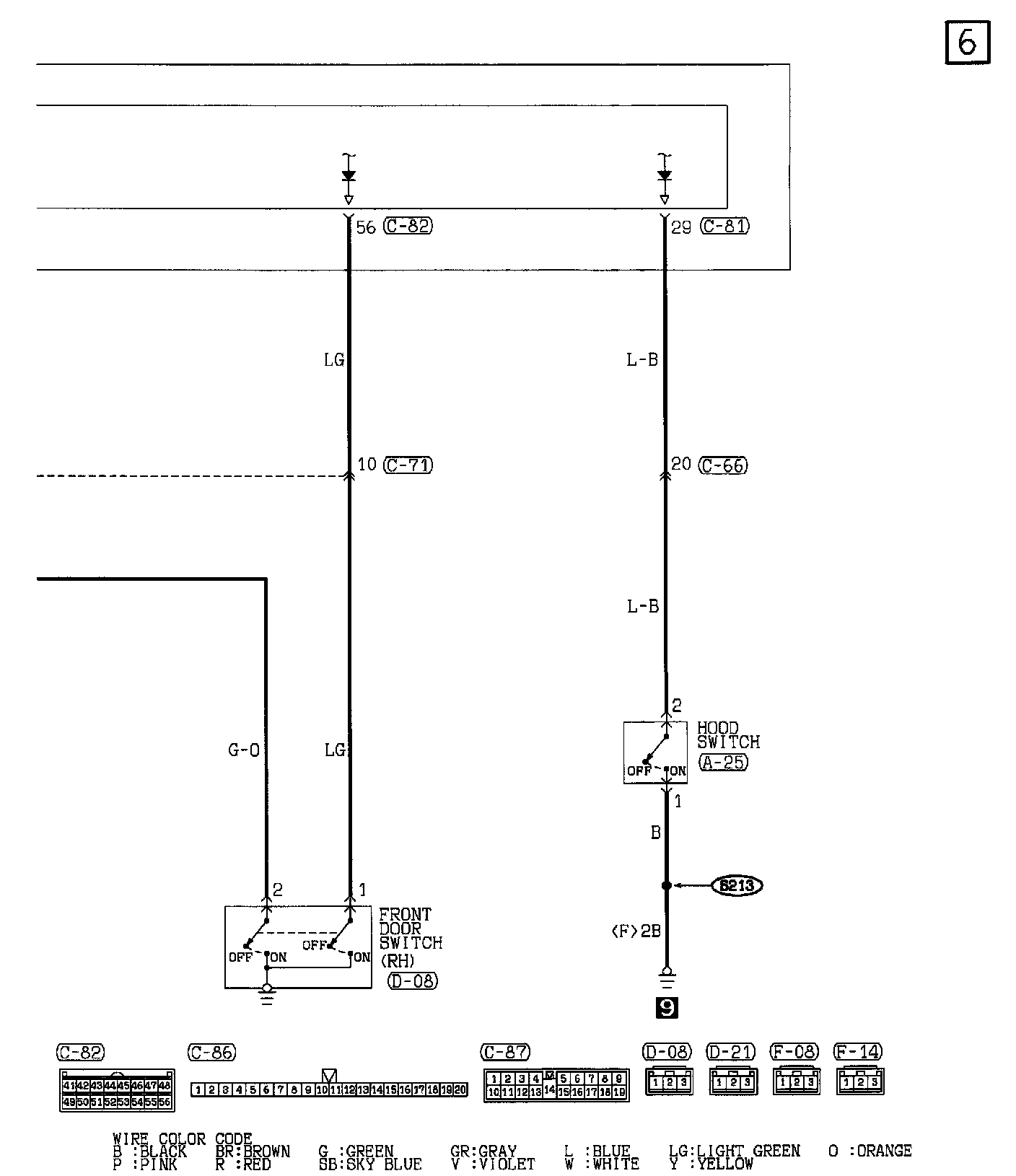

Front Door Switch (RH)
Hood Switch




ETACS-ECU

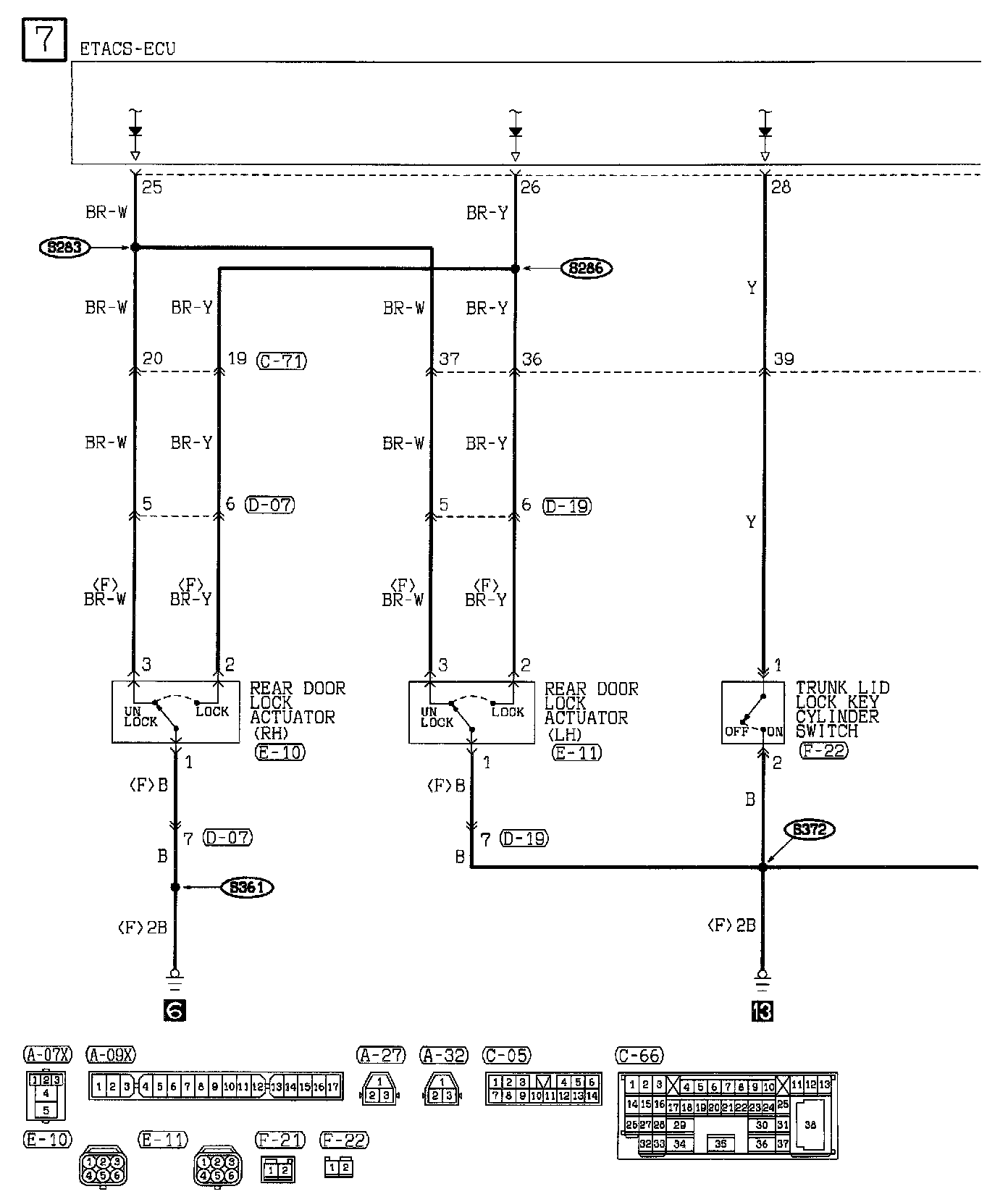

Rear Door Lock Actuator (LH & RH)
Trunk Lid Lock Key Cylinder Switch




Dedicated Fuse

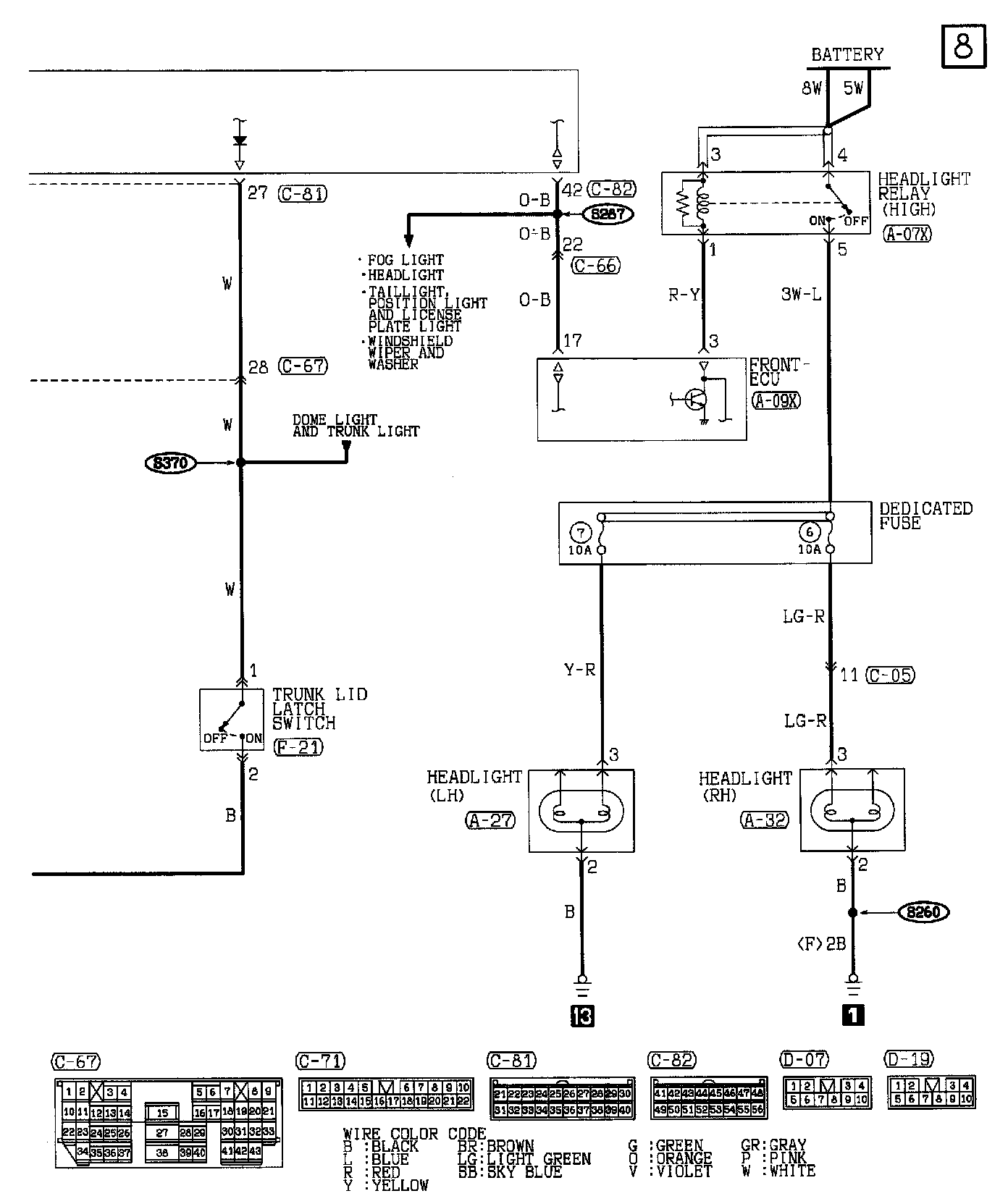

Front-ECU
Headlight (LH & RH)
Headlight Relay (High)
Trunk Lid Latch Switch
